VISHAYDatasheet (PDF)

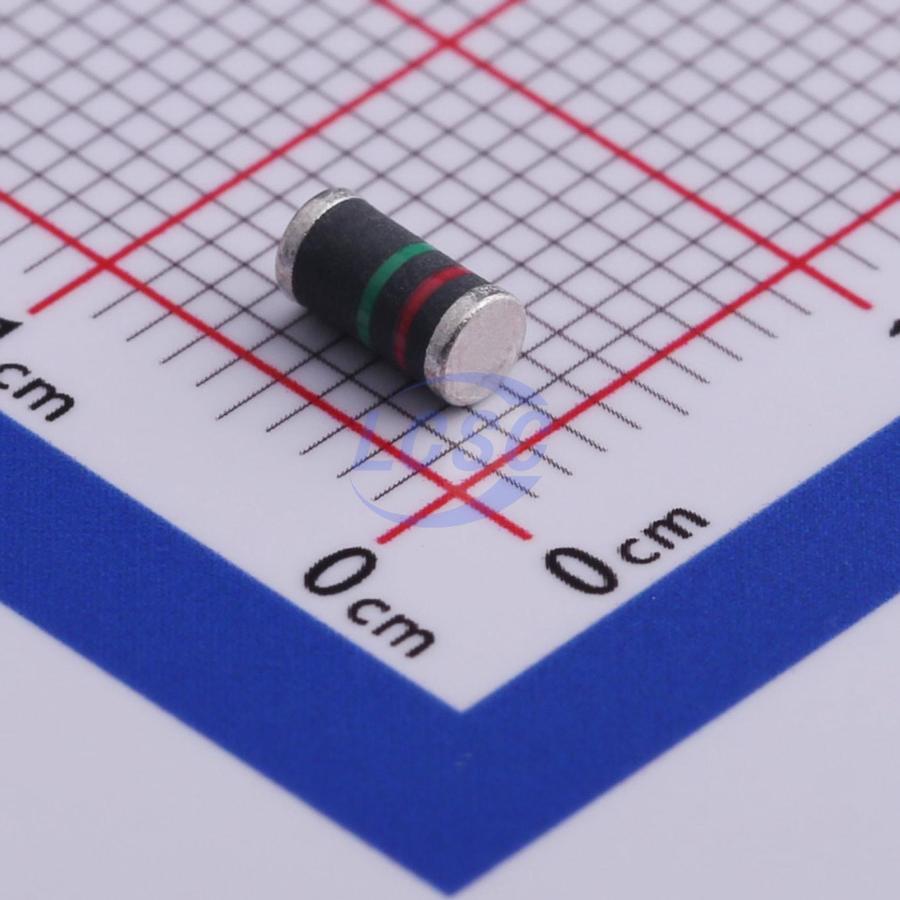

RGL41J-E3/96
Diode Independent 600V 1A Surface Mount DO-213AB
DO-213ABROHS3 CompliantActive
DIODE GP 600V 1A DO-213AB
- Manufacturer
- VISHAY
- Manufacturer part #
- RGL41J-E3/96
- Store part #
- C511409
- Package / case
- DO-213AB
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
815 in stock
#C511409
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹50.13 | ₹250.65 |
| 50+ | ₹39.80 | ₹1,990.00 |
| 150+ | ₹35.36 | ₹5,304.00 |
| 1,500+ | ₹29.85 | ₹44,775.00 |
| 3,000+ | ₹27.39 | ₹82,170.00 |
| 4,500+ | ₹25.90 | ₹1,16,550.00 |
5 × ₹50.13
₹250.65
excl. GST
₹295.77 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,500 per reel
RGL41J-E3/96
₹250.65 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 250ns
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.127 g
Overview
Applications
- For use in fast switching rectification of power supply, inverters, converters, and freewheeling diodes for consumer, automotive and telecommunication.
Key features
- Superectifier structure for high reliability condition
- Ideal for automated placement RoHS
- Fast switching for high efficiency COMPLIANT
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 250 ℃
- AEC-Q101 qualified - Automotive ordering code: base P/NHE3
