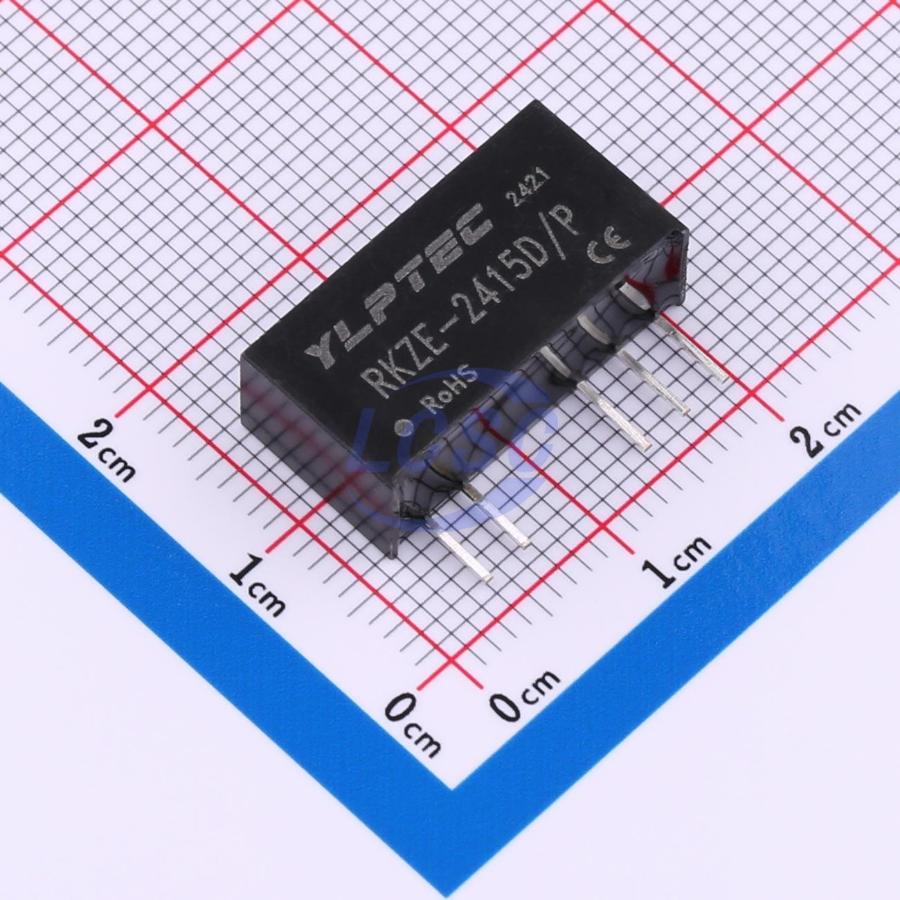

RKZE-2415D/P
Isolated Module DC DC Converter Buck 2 Output ±15V ±67mA 21.6V~26.4V Input
DC/DC power module with 7-pin SIP international standard pins, 2W fixed voltage input, isolated non-regulated dual outputs
- Manufacturer
- YLPTEC
- Manufacturer part #
- RKZE-2415D/P
- Store part #
- C22371989
- Package / case
- SIP,19.5x7mm
- Category
- DC DC Converters
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
26 in stock
#C22371989
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹736.74 | ₹736.74 |
| 10+ | ₹632.24 | ₹6,322.40 |
| 25+ | ₹570.01 | ₹14,250.25 |
| 100+ | ₹507.13 | ₹50,713.00 |
| 500+ | ₹478.30 | ₹2,39,150.00 |
| 1,000+ | ₹465.07 | ₹4,65,070.00 |
1 × ₹736.74
₹736.74
excl. GST
₹869.35 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 25 per tube
RKZE-2415D/P
₹736.74 for 1 + GST
Specifications
- Output Voltage
- ±15V
- Ripple Noise
- 60mVp-p
- Operating Temperature
- -40℃~+85℃
- Voltage - Supply
- 21.6V~26.4V
- Capacitive Load(Max)
- 100uF
- Number of Outputs
- 2
- Iout
- 67mA
- Height
- 7mm
- Frequency - Switching
- 300kHz
- Isolation Voltage(Vrms)
- 3kV
- Features
- Short Circuit Protection;Automatic fault recovery;Over-temperature protection
- Conversion Efficiency
- 86%
- Output Power
- 2W
- Length
- 19.5mm
- Width
- 10mm
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 25 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.71 g
Overview
Applications
- Applications requiring two isolated output rails from input power in distributed power systems
- Input supply voltage variation within ±10%
- Input-to-output isolation required (isolation voltage 3000VDC)
- Applications with relaxed requirements on output voltage regulation and output ripple/noise
Key features
- 7-pin SIP international standard pinout
- Low quiescent current and high conversion efficiency
- Low ripple and low noise
- Built-in soft-start technology
- Isolation voltage 3000VDC
- Operating temperature range: -40°C~+85°C
- Output short-circuit protection: continuous short-circuit protection with auto-recovery
- Over-temperature protection and continuous output short-circuit protection
- RoHS
