DIODESDatasheet (PDF)

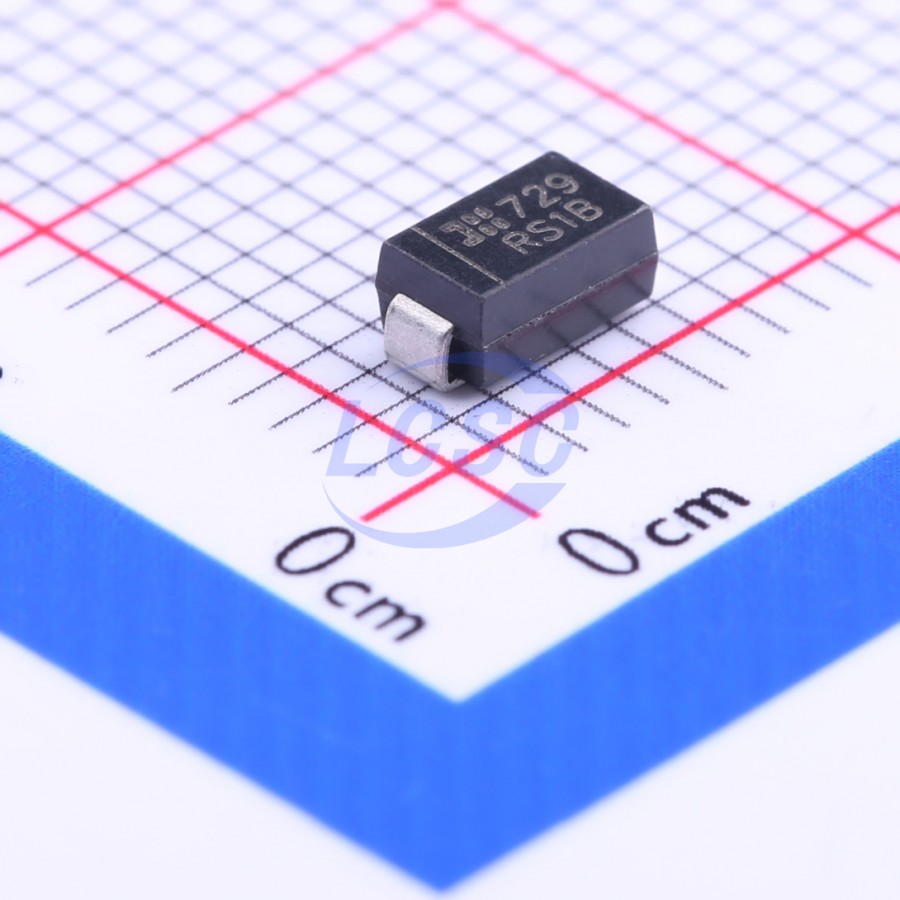

RS1B-13-F
150ns 100V 1.3V@1A 1A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Diode 100V 1A SMA
- Manufacturer
- DIODES
- Manufacturer part #
- RS1B-13-F
- Store part #
- C154744
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
480 in stock
#C154744
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.53 | ₹77.65 |
| 50+ | ₹12.45 | ₹622.50 |
| 150+ | ₹10.91 | ₹1,636.50 |
| 500+ | ₹9.75 | ₹4,875.00 |
| 2,500+ | ₹8.84 | ₹22,100.00 |
| 5,000+ | ₹8.37 | ₹41,850.00 |
5 × ₹15.53
₹77.65
excl. GST
₹91.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RS1B-13-F
₹77.65 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 150ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- Glass Passivated Die Construction
- Fast Recovery Time for High Efficiency
- Surge Overload Rating to 30A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
