VISHAYDatasheet (PDF)

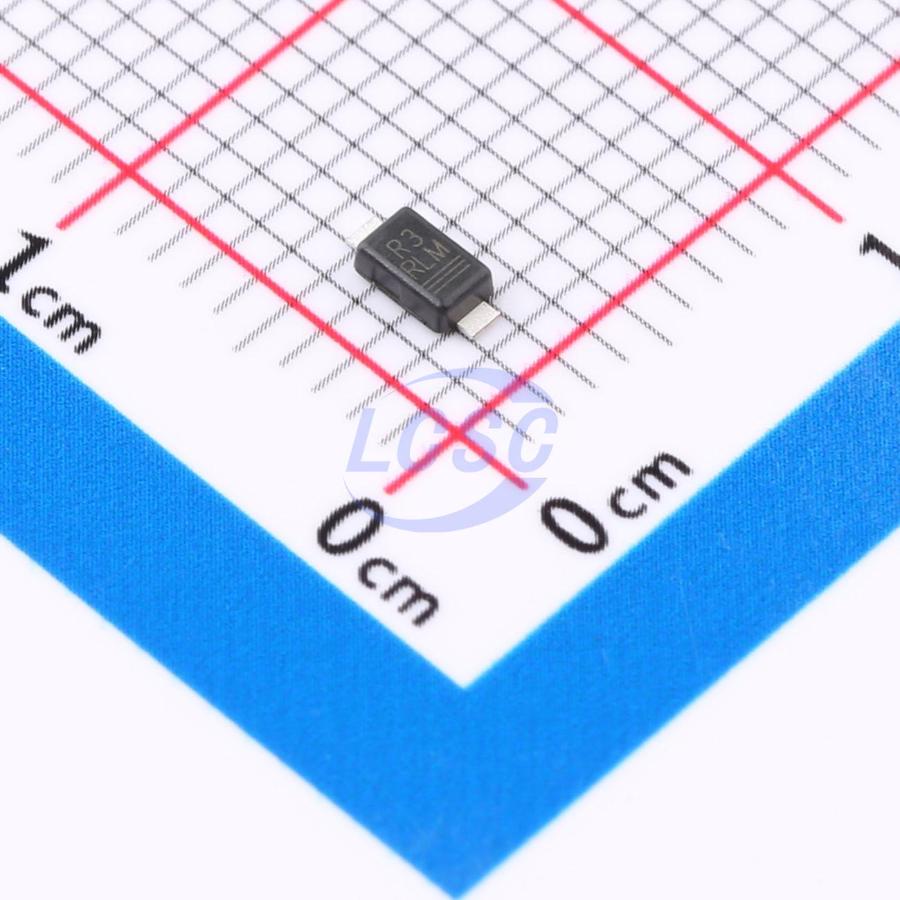

RS1FLM-M3/H
Diode 1 Independent 1000V 1A Surface Mount DO-219AB(SMF)
DO-219AB(SMF)ROHS3 CompliantActive
DIODE STANDARD 1kV 1A DO-219AB(SMF)
- Manufacturer
- VISHAY
- Manufacturer part #
- RS1FLM-M3/H
- Store part #
- C17532721
- Package / case
- DO-219AB(SMF)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
635 in stock
#C17532721
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹23.21 | ₹116.05 |
| 50+ | ₹18.43 | ₹921.50 |
| 150+ | ₹16.38 | ₹2,457.00 |
| 500+ | ₹13.83 | ₹6,915.00 |
| 3,000+ | ₹12.69 | ₹38,070.00 |
| 6,000+ | ₹12.00 | ₹72,000.00 |
5 × ₹23.21
₹116.05
excl. GST
₹136.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1FLM-M3/H
₹116.05 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.2V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 35A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, and telecommunication.
Key features
- Glass passivated pellet chip junction
- Ideal for automated placement RoHS
- Meets MSL level 1, per J-STD-020; COMPLIANT LF maximum peak of 260℃ HALOEEN
- Wave and reflow solderable
- Compatible to SOD-123W package case outline
- Material categorization: for definitions of compliance please see www.vishay.com/doc?99912
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S07M-M-08#C17617827VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 15 | ₹29.79 · 15 in stock | View |
 | S07M-GS08#C466985VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | 72,180 | ₹7.46 · 72,180 in stock | View |
| RS1FLM-M3/I#C17420365VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹14.94 · 0 in stock | View | |
| S1FLM-M-18#C17256915VISHAY · DO-219AB(SMF) | VISHAY | DO-219AB(SMF) | On request | ₹14.45 · 0 in stock | View | |
 | S1FLM-GS08#C142617VISHAY · SMF | VISHAY | SMF | On request | ₹23.31 · 0 in stock | View |
