DIODESDatasheet (PDF)

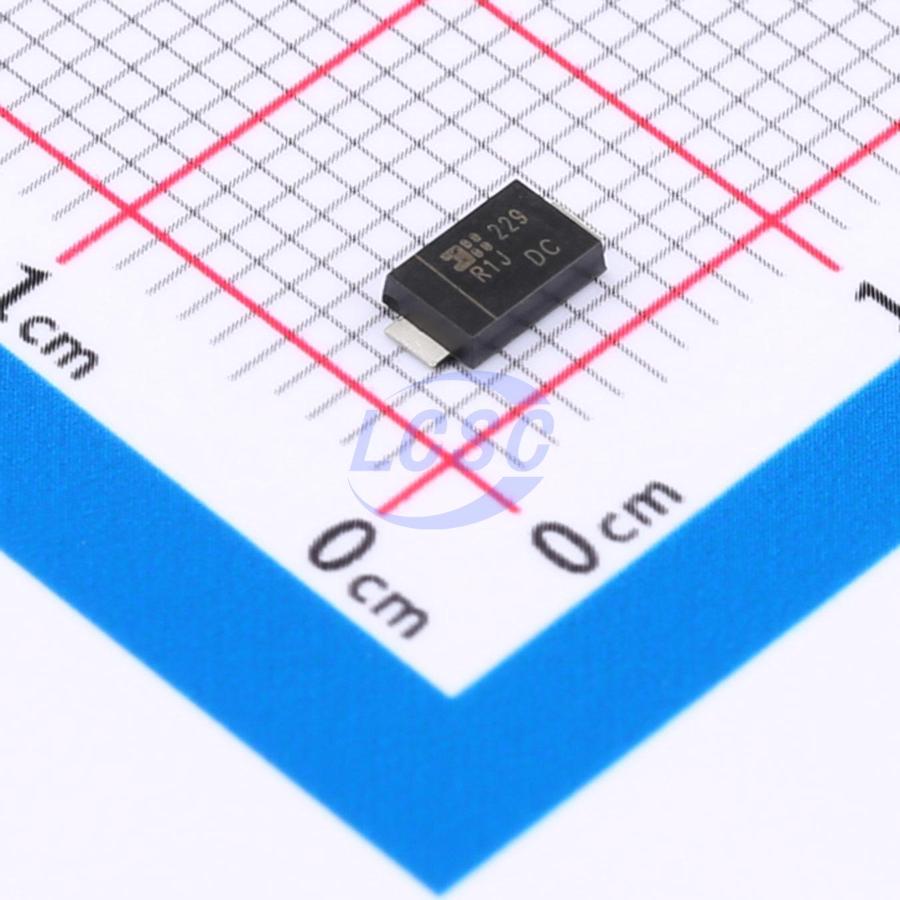

RS1JDF-13
250ns 600V 1.3V@1A 1A D-FLAT Single Diodes RoHS
D-FLATROHS3 CompliantActive
Diode 600V 1A SMD
- Manufacturer
- DIODES
- Manufacturer part #
- RS1JDF-13
- Store part #
- C5438908
- Package / case
- D-FLAT
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
710 in stock
#C5438908
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹9.26 | ₹46.30 |
| 50+ | ₹9.06 | ₹453.00 |
| 150+ | ₹8.93 | ₹1,339.50 |
| 500+ | ₹8.80 | ₹4,400.00 |
5 × ₹9.26
₹46.30
excl. GST
₹54.63 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
RS1JDF-13
₹46.30 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 250ns
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.051 g
Overview
RS1JDF is a rectifier in a thin D-FLAT package. The device features fast recovery time for high efficiency, making it well suited for general rectification applications such as switch-mode power supplies and DC-DC converters.
Applications
- Switch-mode power supplies
- DC-DC converters
Key features
- Glass passivated die construction
- Fast recovery time for high efficiency
- Surge overload rating to 30A peak
- High current capability
- Low profile package height less than 1.1mm
- Lead-free finish; RoHS compliant
- Halogen and antimony free, "Green" device
- AEC-Q101 qualified for high reliability
