DIODESDatasheet (PDF)

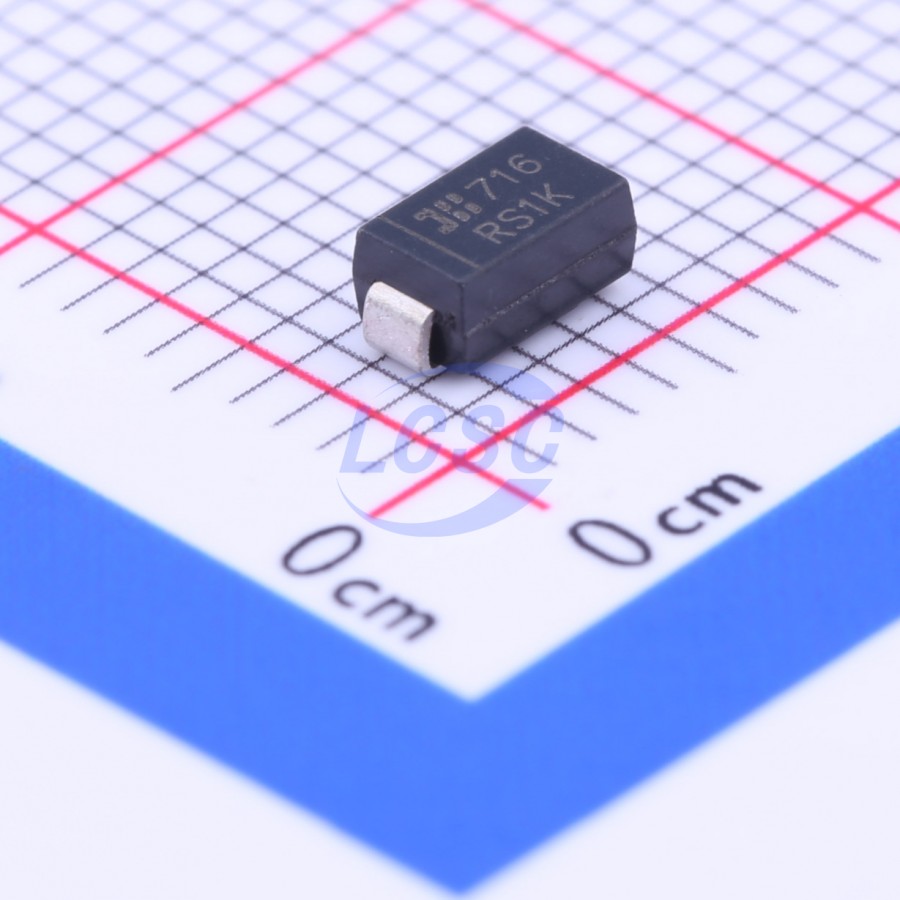

RS1K-13-F
500ns 800V 1.3V@1A 1A SMA Single Diodes RoHS
SMAROHS3 CompliantActive
Diode 800V 1A SMA
- Manufacturer
- DIODES
- Manufacturer part #
- RS1K-13-F
- Store part #
- C155337
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
95 in stock
#C155337
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.95 | ₹39.75 |
| 50+ | ₹7.78 | ₹389.00 |
| 150+ | ₹7.67 | ₹1,150.50 |
| 500+ | ₹7.55 | ₹3,775.00 |
5 × ₹7.95
₹39.75
excl. GST
₹46.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
RS1K-13-F
₹39.75 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 500ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1.3V@1A
- Reverse Leakage Current (Ir)
- 5uA@800V
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- Glass Passivated Die Construction
- Fast Recovery Time for High Efficiency
- Surge Overload Rating to 30A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS1MA#C2844163FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 9,080 | ₹1.43 · 9,080 in stock | View |
 | FS1K-LTP#C725310MCC · SMA(DO-214AC) | MCC | SMA(DO-214AC) | On request | ₹15.33 · 0 in stock | View |
| RGF1K#C896147onsemi · SMA(DO-214AC) | onsemi | SMA(DO-214AC) | On request | ₹23.79 · 0 in stock | View | |
