onsemiDatasheet (PDF)

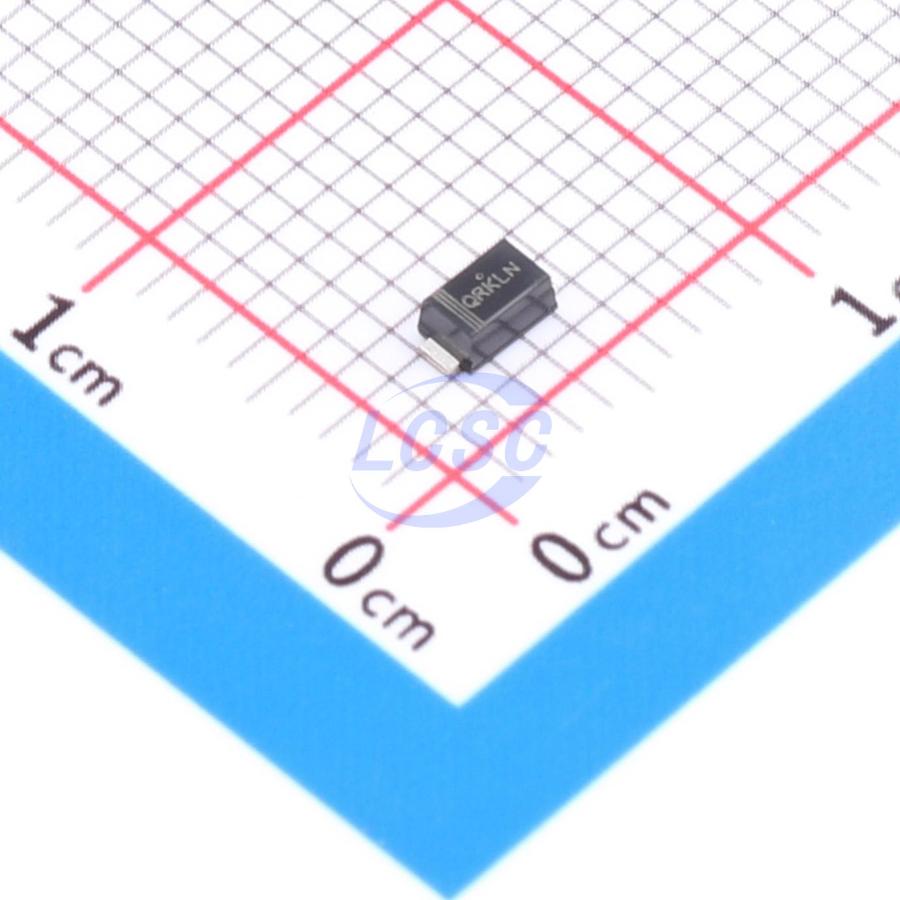

RS1KFA
500ns 1 Independent 800V 1.3V 800mA SOD-123FL Single Diodes RoHS
SOD-123FLROHS3 CompliantActive
Diode 800V 0.8A SOD-123FL
- Manufacturer
- onsemi
- Manufacturer part #
- RS1KFA
- Store part #
- C894220
- Package / case
- SOD-123FL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
36 in stock
#C894220
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹51.36 | ₹51.36 |
| 10+ | ₹40.51 | ₹405.10 |
| 30+ | ₹35.81 | ₹1,074.30 |
| 100+ | ₹30.09 | ₹3,009.00 |
| 500+ | ₹27.43 | ₹13,715.00 |
| 1,000+ | ₹25.79 | ₹25,790.00 |
1 × ₹51.36
₹51.36
excl. GST
₹60.60 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS1KFA
₹51.36 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 500ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1.3V
- Reverse Leakage Current (Ir)
- 5uA
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 800mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
Key features
- Glass Passivated Chip Junction
- Fast Switching for High Efficiency
- High Surge Capacity
- Low Forward Voltage: 1.3 V Maximum
- UL Flammability 94V−0 Classification
- MSL 1 per J−STD−020
- RoHS Compliant / Green Molding Compound
- Industrial Device Qualified per AEC−Q101 Standards
- NRVHP Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | F6#C50229507DDF · SOD-123FL | DDF | SOD-123FL | 1,200 | ₹0.6218 · 1,200 in stock | View |
 | FR106W#C169509Jingdao Microelectronics · SOD-123F | Jingdao Microelectronics | SOD-123F | 250 | ₹1.28 · 250 in stock | View |
 | FFM106-M#C5293710JSCJ · SOD-123FL | JSCJ | SOD-123FL | 100 | ₹1.20 · 100 in stock | View |
 | RS1MFA#C894222onsemi · SOD-123 FL | onsemi | SOD-123 FL | 85 | ₹40.10 · 85 in stock | View |
 | FR107W#C108820Jingdao Microelectronics · SOD-123F | Jingdao Microelectronics | SOD-123F | 1,24,650 | ₹1.22 · 1,24,650 in stock | View |
