RUNICDatasheet (PDF)

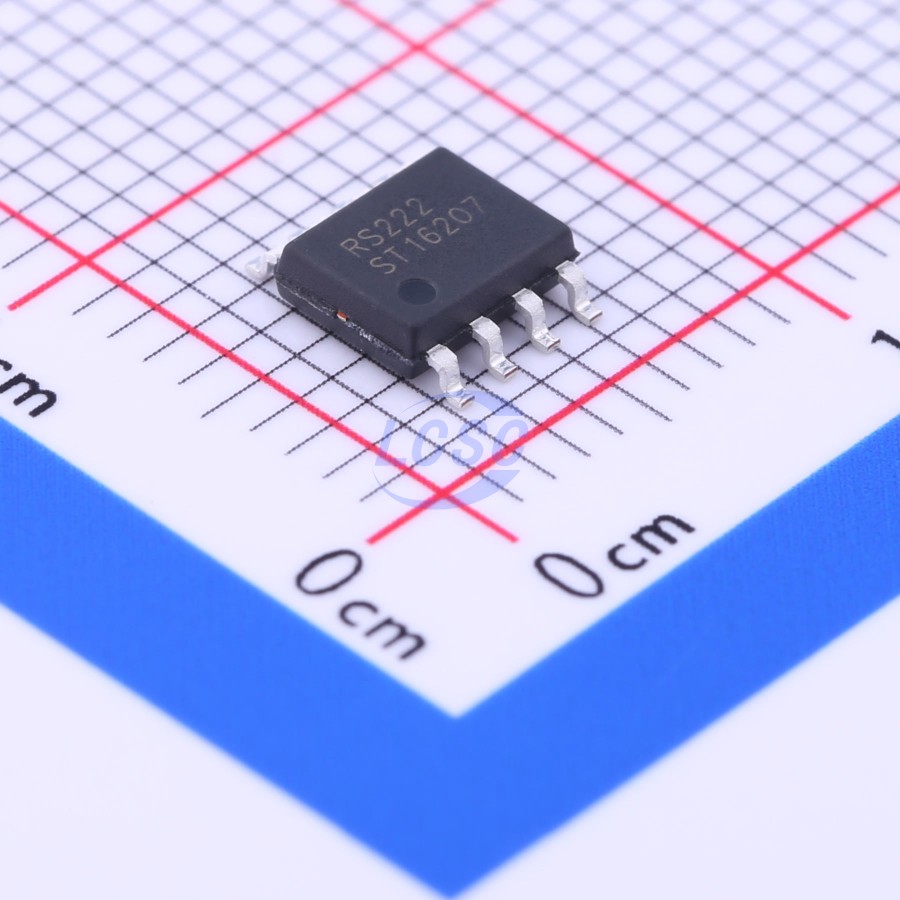

RS222XK
27mA 2 800uV 180V/ms 1pA 90dB 18uA 500kHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-8 Instrumentation, Op Amps, Buffer Amps
SOIC-8RoHSActive
Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS222XK
- Store part #
- C255465
- Package / case
- SOIC-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,735 in stock
#C255465
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹29.12 | ₹145.60 |
| 50+ | ₹20.59 | ₹1,029.50 |
| 150+ | ₹16.93 | ₹2,539.50 |
5 × ₹29.12
₹145.60
excl. GST
₹171.81 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
RS222XK
₹145.60 for 5 + GST
Specifications
- Output Current
- 27mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 180V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Input Offset Voltage Drift(Vos TC)
- 2.9uV/℃
- Quiescent Current
- 18uA
- Gain Bandwidth Product
- 500kHz
- Features
- Enable/shutdown function
- Input Voltage Noise Density
- 77nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.14 g
Overview
GAIN BANDWIDTH: 500kHz RAIL-TO-RAIL INPUT AND OUTPUT 0.8mv Typical Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +2.5V to +5.5V SHUTDOWN: RS221S/RS222S SPECIFIED UP TO +125°C MicroSIZE PACKAGES: SOT23-5, SOT23-6
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- ACTIVE FILTERS
- TEST EQUIPMENT
- DRIVING A/D CONVERTERS
Key features
- GAIN BANDWIDTH: 500kHz
- RAIL-TO-RAIL INPUT AND OUTPUT
- 0.8mv Typical Vos
- INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V
- SUPPLY RANGE: +2.5V to +5.5V
- SHUTDOWN: RS221S/RS222S
- SPECIFIED UP TO +125°C
- MicroSIZE PACKAGES: SOT23-5, SOT23-6
- Low-voltage operation
- Rail-to-rail input and output
- Excellent speed/power ratio
- Delivers excellent bandwidth (500kHz) and slew rate of 0.18V/us
- Unity-gain stable
- Ultra-low input bias current
- RS221S, RS222S include shutdown mode
- Specified over full temperature range of -40°C to +125°C with single or dual supply of 2.5V to 5.5V
