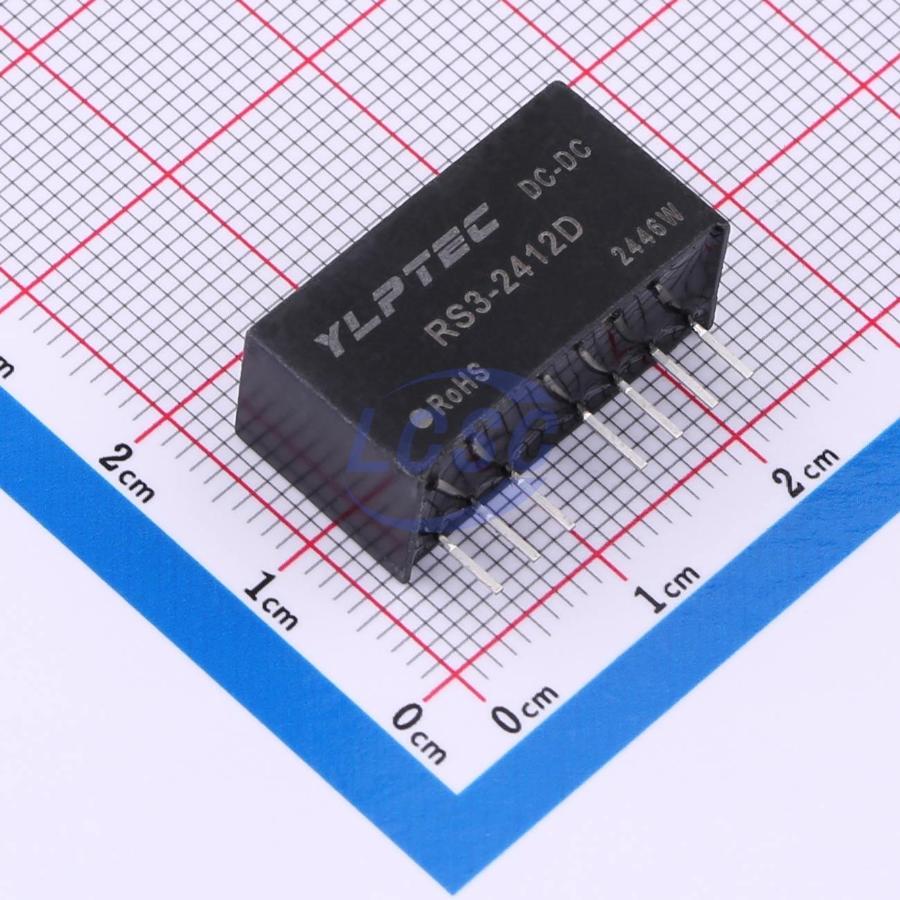

YLPTEC

RS3-2412D

Isolated Module DC DC Converter ±12V 125mA 18V~36V Input

SIP,22x9.5mmRoHSActive

DC/DC power module, 3W wide voltage input, isolated and regulated output

Manufacturer: YLPTEC
Manufacturer part #: RS3-2412D
Store part #: C46594376
Package / case: SIP,22x9.5mm
Category: DC DC Converters
Packaging: Tube-packed

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

28 in stock

#C46594376

Stock & price checked 8 days ago

Quantity	Unit price	Pack price
1+	₹1,035.80	₹1,035.80
10+	₹886.41	₹8,864.10
22+	₹821.23	₹18,067.06
110+	₹744.80	₹81,928.00

Quantity (min 1)

1 × ₹1,035.80

₹1,035.80

excl. GST

₹1,222.24 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 22 per tube

RS3-2412D

₹1,035.80 for 1 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Output Voltage: ±12V
Ripple Noise: 50mVp-p
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 10mA
Voltage - Supply: 18V~36V
Capacitive Load(Max): 470uF
Iout: 125mA
Height: 12mm
Frequency - Switching: 300kHz
Isolation Voltage(Vrms): 1.5kV
Features: Short Circuit Protection;Automatic fault recovery
Conversion Efficiency: 78%
Output Power: 3W
Length: 22mm
Width: 9.5mm

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tube-packed
Standard pack: 22 / Tube
Sold per: Piece
Minimum order: 1
Unit weight: 5.552 g

Overview

The RS3-xxxxD and RS3-xxxxS series are isolated DC-DC converters with 2:1 input range and 3W regulated voltage output. These products feature an ultra-compact SIP-8 plastic package, high efficiency, an operating temperature range of -40℃ ~ +85℃, remote on/off control, and continuous short-circuit protection. Their compact footprint and cost-effective design make them an ideal choice for communications equipment, instrumentation, and industrial electronics applications.
