RUNICDatasheet (PDF)

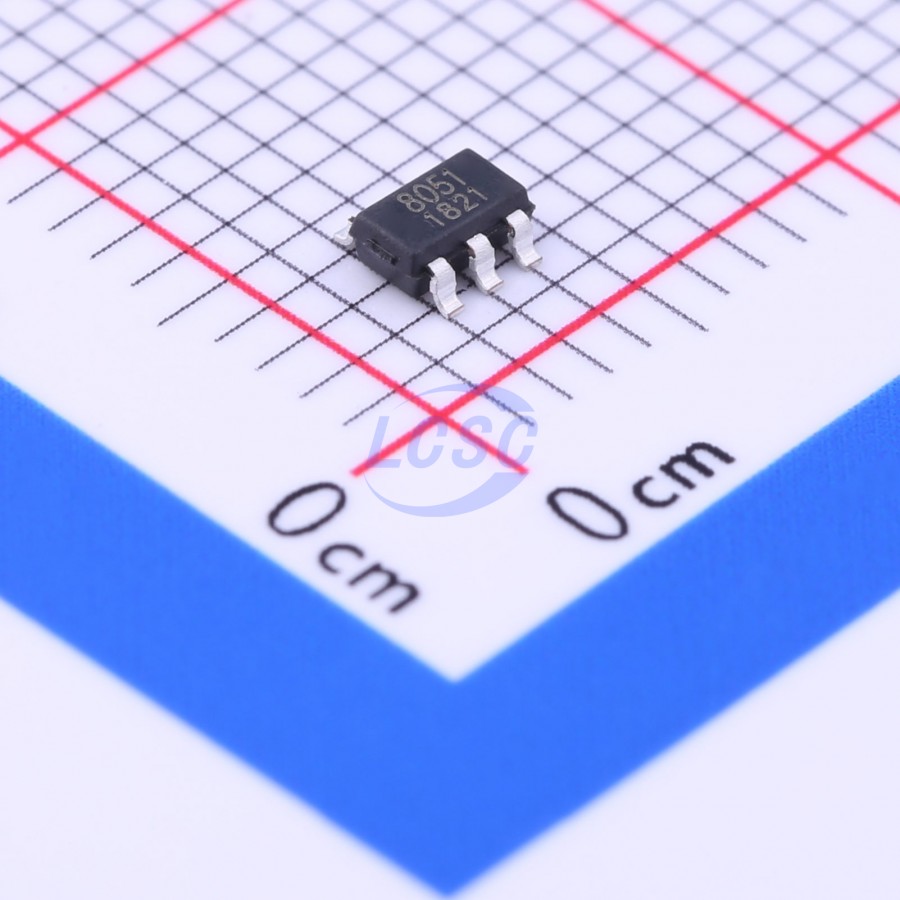

RS8051XF
30mA 1 1mV 30V/ms 75dB 1pA 670nA 100kHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps RoHS
SOT-23-5ROHS3 CompliantActive
Non-Unity Gain, Rail-to-Rail I/O CMOS Operational Amplifier
- Manufacturer
- RUNIC
- Manufacturer part #
- RS8051XF
- Store part #
- C255436
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,265 in stock
#C255436
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹35.27 | ₹176.35 |
| 50+ | ₹25.02 | ₹1,251.00 |
| 150+ | ₹20.51 | ₹3,076.50 |
5 × ₹35.27
₹176.35
excl. GST
₹208.09 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RS8051XF
₹176.35 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 1mV
- Slew Rate
- 30V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 75dB
- Ib - Input Bias Current
- 1pA
- Input Offset Voltage Drift(Vos TC)
- 2.3uV/℃
- Quiescent Current
- 670nA
- Gain Bandwidth Product
- 100kHz
- Features
- Decompensated stable
- Input Voltage Noise Density
- 160nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.4V~5.5V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
- GAIN BANDWIDTH: 100kHz - RAIL-TO-RAIL INPUT AND OUTPUT - 1mV Typical Vos - INPUT VOLTAGE RANGE: -0.1V to +5.68 with Vs = 5.5V - SUPPLY RANGE: +1.48 to +5.5V - STABLE FOR GAINS ≥ 10 - SPECIFIED UP TO ±125°C - Micro SIZE PACKAGES: SOT23 - 5
Applications
- SENSORS
- PHOTODIODE AMPLIFICATION
- WEARABLE PRODUCTS
- TEMPERATURE MEASUREMENT
- BATTERY POWERED SYSTEM
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | RS6331BXF#C237012RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 2,170 | ₹26.09 · 2,170 in stock | View |
 | RS321XF#C19269217RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 5,895 | ₹17.36 · 5,895 in stock | View |
 | RS121XF#C237029RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 3,390 | ₹25.48 · 3,390 in stock | View |
 | RS321BXF#C237022RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 6,550 | ₹17.33 · 6,550 in stock | View |
 | RS6331XF#C255462RUNIC · SOT-23-5 | RUNIC | SOT-23-5 | 6,560 | ₹29.87 · 6,560 in stock | View |
