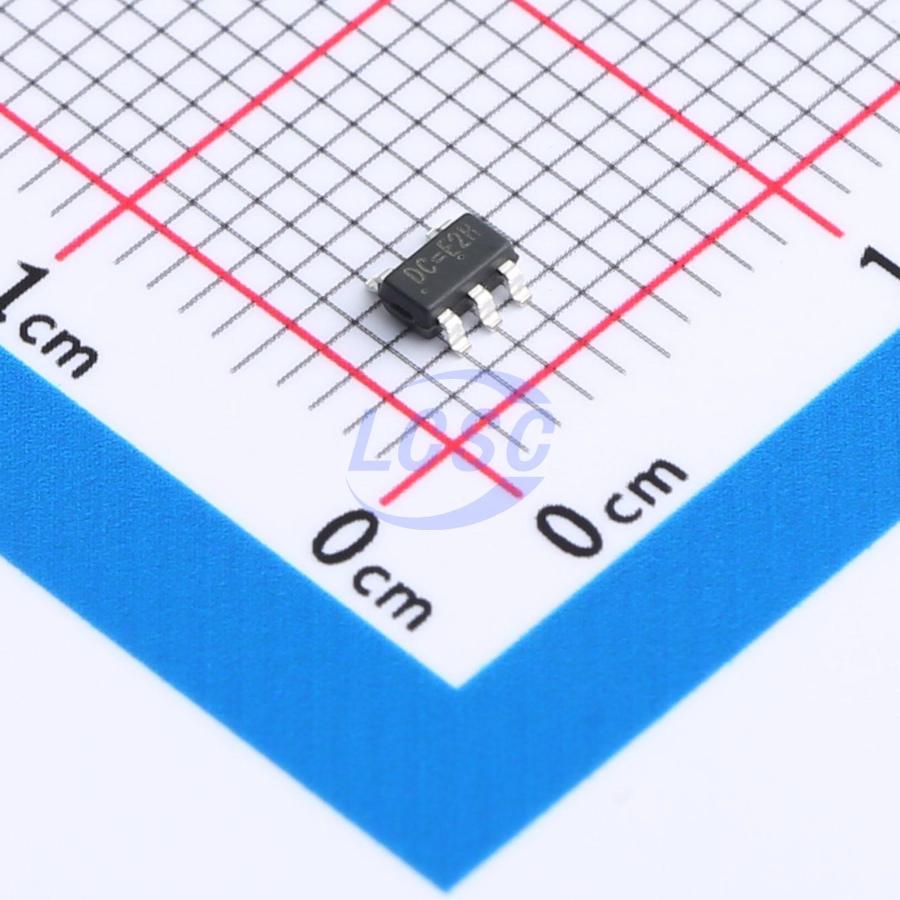

RT9193-18GB
1.8V Positive Fixed SOT-23-5L Voltage Regulators - Linear, Low Drop Out (LDO) Regulators
SOT-23-5LRoHSActive
300mA High PSRR Voltage Regulator
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- RT9193-18GB
- Store part #
- C19829444
- Package / case
- SOT-23-5L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,670 in stock
#C19829444
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.60 | ₹86.00 |
| 100+ | ₹6.83 | ₹683.00 |
| 300+ | ₹5.94 | ₹1,782.00 |
| 3,000+ | ₹5.28 | ₹15,840.00 |
| 6,000+ | ₹4.74 | ₹28,440.00 |
| 9,000+ | ₹4.47 | ₹40,230.00 |
10 × ₹8.60
₹86.00
excl. GST
₹101.48 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
RT9193-18GB
₹86.00 for 10 + GST
Specifications
- Output Voltage
- 1.8V
- Number of Outputs
- 1
- Operating Temperature
- -25℃~+85℃@(Ta)
- Supply Current (Iq)
- 70uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 6V
- Features
- Enable control
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
The RT9193 is a high-performance, 300mA LDO regulator, offering extremely high PSRR and ultra-low dropout. Ideal for portable RF and wireless applications with demanding performance and space requirements.
Applications
- CDM/GSM mobile phone
- PDAS/MP3
- Audio/Video equipment
Key features
- Quiescent Current: 70uA
- PSRR: 70dB@1KHz
- < 1uA current at shutdown mode
- Output current: 300mA(Typ.)
- SOT23-5 package
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP2019-1.8YN5#C2835437TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 550 | ₹8.41 · 550 in stock | View |
 | TPRT9193-18GB#C2835438TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 480 | ₹10.16 · 480 in stock | View |
 | TPXC6219B182MR#C2841429TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,440 | ₹8.63 · 1,440 in stock | View |
 | XC6219B182MR#C7419959TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,540 | ₹7.61 · 5,540 in stock | View |
 | TP9091-180T11U#C2835474TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,860 | ₹4.96 · 1,860 in stock | View |
