LRCDatasheet (PDF)

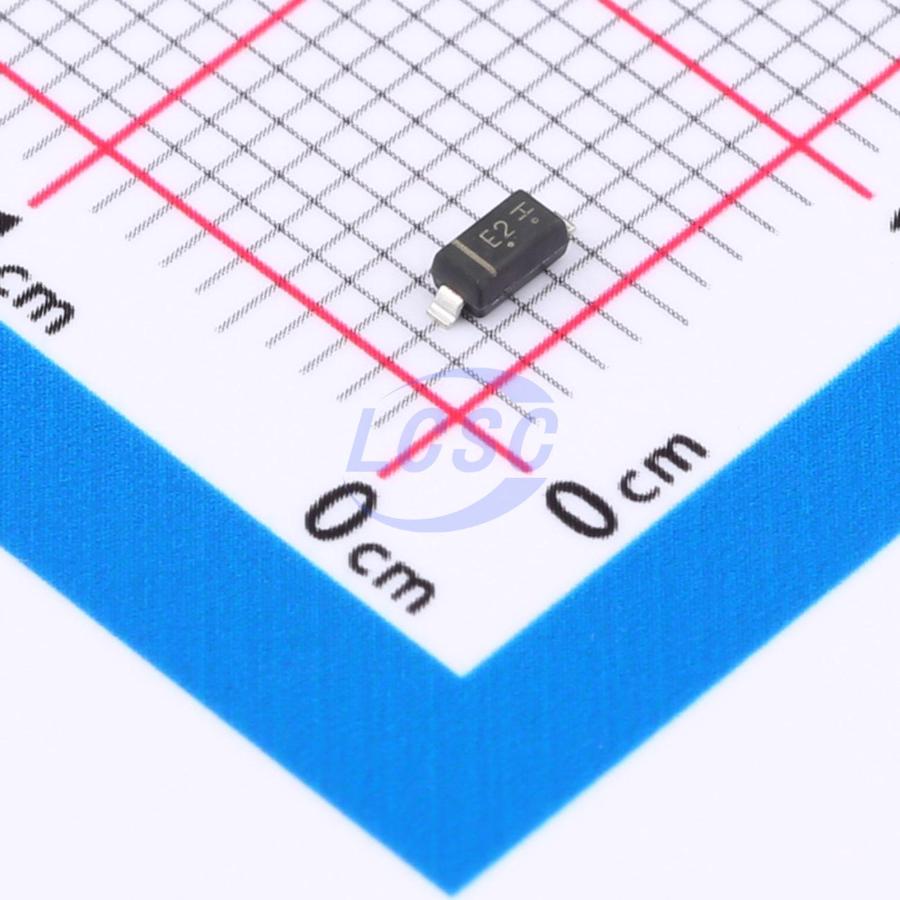

S-LMSZ5232BT1G
Zener Diode 5.6V 500mW Surface Mount SOD-123
SOD-123RoHSActive
DIODE ZENER 5.6V 500mW SOD-123
- Manufacturer
- LRC
- Manufacturer part #
- S-LMSZ5232BT1G
- Store part #
- C5383054
- Package / case
- SOD-123
- Category
- Single Zener Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
255 in stock
#C5383054
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹5.12 | ₹25.60 |
| 50+ | ₹4.02 | ₹201.00 |
| 150+ | ₹3.41 | ₹511.50 |
| 500+ | ₹3.04 | ₹1,520.00 |
| 3,000+ | ₹2.73 | ₹8,190.00 |
| 6,000+ | ₹2.55 | ₹15,300.00 |
5 × ₹5.12
₹25.60
excl. GST
₹30.21 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S-LMSZ5232BT1G
₹25.60 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Tolerance
- ±5%
- Operating Junction Temperature Range
- -55℃~+150℃
- Pd - Power Dissipation
- 500mW
- Reverse Leakage Current (Ir)
- 5uA
- Impedance(Zzt)
- 11Ω
- Zener Voltage(Range)
- 5.32V~5.88V
- Zener Voltage(Nom)
- 5.6V
- Impedance(Zzk)
- 1.6kΩ
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMSZ5232BT1G#C383240LRC · SOD-123 | LRC | SOD-123 | 1,840 | ₹4.47 · 1,840 in stock | View |
 | LBZT52C5V6T1G#C12770LRC · SOD-123 | LRC | SOD-123 | 8,040 | ₹4.14 · 8,040 in stock | View |
 | S-LBZT52C5V6T1G#C2941710LRC · SOD-123 | LRC | SOD-123 | 2,950 | ₹8.20 · 2,950 in stock | View |
 | LMSZ5233BT1G#C115277LRC · SOD-123 | LRC | SOD-123 | 7,600 | ₹4.35 · 7,600 in stock | View |
 | LMSZ5231BT1G#C107712LRC · SOD-123 | LRC | SOD-123 | 7,260 | ₹3.43 · 7,260 in stock | View |
