JSCJDatasheet (PDF)

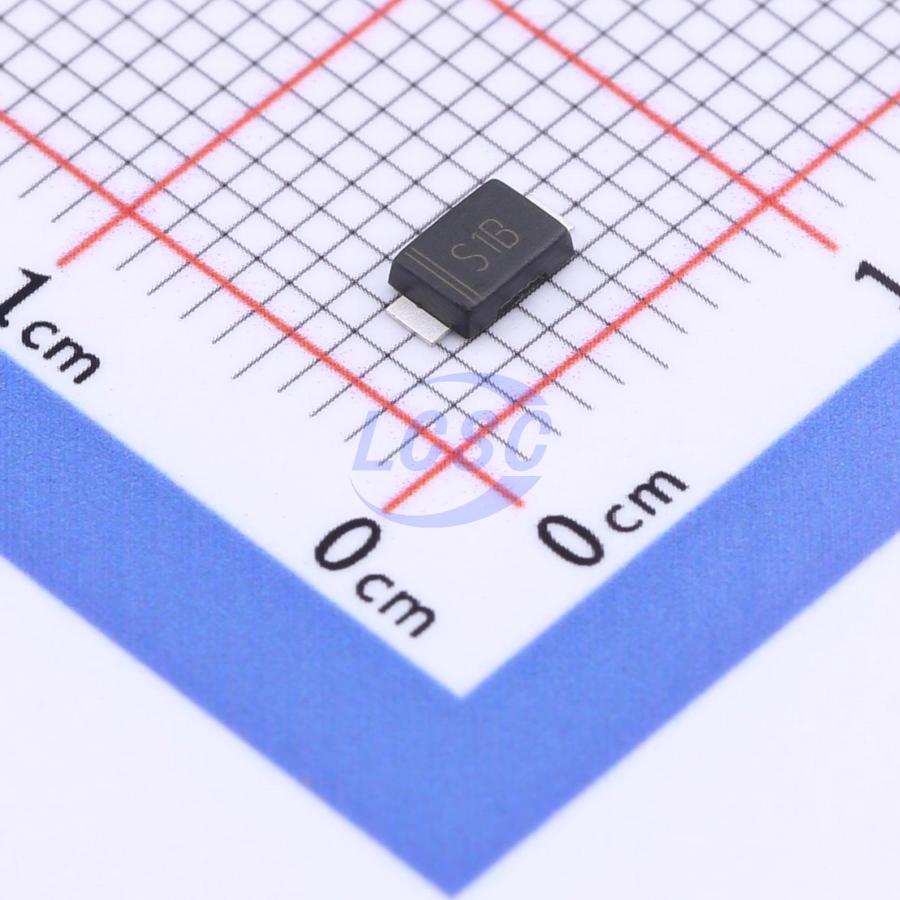

S1BF
Diode 100V 1A Surface Mount DO-214AD
DO-214ADROHS CompliantActive
DIODE STANDARD 100V 1A DO-214AD
- Manufacturer
- JSCJ
- Manufacturer part #
- S1BF
- Store part #
- C3019341
- Package / case
- DO-214AD
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,800 in stock
#C3019341
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 50+ | ₹2.29 | ₹114.50 |
| 500+ | ₹1.80 | ₹900.00 |
| 3,000+ | ₹1.52 | ₹4,560.00 |
| 6,000+ | ₹1.36 | ₹8,160.00 |
| 24,000+ | ₹1.22 | ₹29,280.00 |
| 51,000+ | ₹1.14 | ₹58,140.00 |
50 × ₹2.29
₹114.50
excl. GST
₹135.11 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S1BF
₹114.50 for 50 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 50 (multiples of 50)
- Unit weight
- 0.06 g
Overview
Applications
- Rectifier
Key features
- IF(AV) 1A
- VRRM 50V - 1000V
- High surge current capability
- Polarity: Color band denotes cathode
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S1DF#C3019342JSCJ · DO-214AD | JSCJ | DO-214AD | 50 | ₹2.45 · 50 in stock | View |
 | S1GF#C3019343JSCJ · DO-214AD | JSCJ | DO-214AD | 2,600 | ₹2.41 · 2,600 in stock | View |
 | S1JF#C3019344JSCJ · DO-214AD | JSCJ | DO-214AD | 5,700 | ₹2.38 · 5,700 in stock | View |
 | S1KF#C3019345JSCJ · DO-214AD | JSCJ | DO-214AD | 300 | ₹2.45 · 300 in stock | View |
 | S2BF#C3019347JSCJ · DO-214AD | JSCJ | DO-214AD | 620 | ₹3.06 · 620 in stock | View |
