VISHAYDatasheet (PDF)

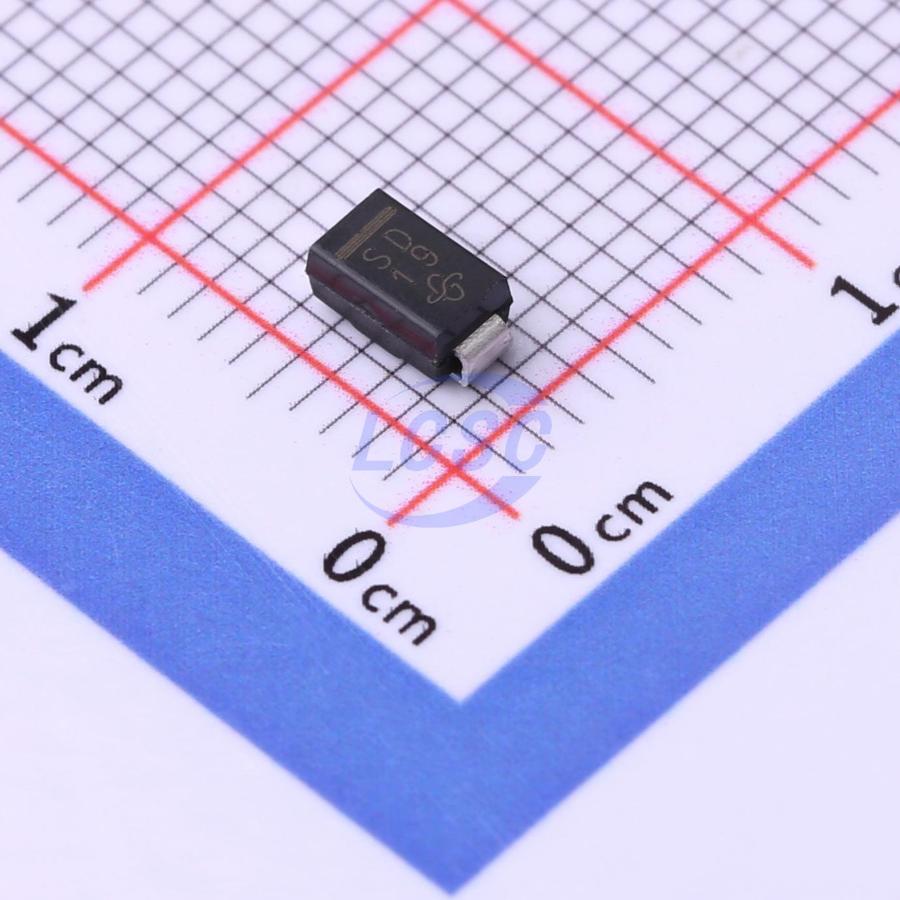

S1D-E3/61T
Diode 1 Independent 200V 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE STANDARD 200V 1A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- S1D-E3/61T
- Store part #
- C968572
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,480 in stock
#C968572
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.86 | ₹88.60 |
| 100+ | ₹7.09 | ₹709.00 |
| 300+ | ₹6.20 | ₹1,860.00 |
| 1,800+ | ₹5.54 | ₹9,972.00 |
| 5,400+ | ₹5.01 | ₹27,054.00 |
| 10,800+ | ₹4.75 | ₹51,300.00 |
10 × ₹8.86
₹88.60
excl. GST
₹104.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
S1D-E3/61T
₹88.60 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 1uA
- Non-Repetitive Peak Forward Surge Current
- 40A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.12 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop RoHS COMPLIANT
- Low leakage current HALOGEN
- High forward surge capability FREE
- Meets MSL level 1, per J - STD - 020, LF maximum peak of 260 ℃
- AEC - Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S1GHE3_A/I#C2981065VISHAY · DO-214AC | VISHAY | DO-214AC | 22,080 | ₹7.96 · 22,080 in stock | View |
 | S1G-E3/61T#C466986VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 49,970 | ₹3.94 · 49,970 in stock | View |
 | S1JHE3_A/H#C467582VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 16,720 | ₹8.92 · 16,720 in stock | View |
 | S1G-E3/5AT#C968577VISHAY · SMA(DO-214AC) | VISHAY | SMA(DO-214AC) | 6,005 | ₹14.29 · 6,005 in stock | View |
 | GS1JQ#C2942567YANGJIE · DO-214AC(SMA) | YANGJIE | DO-214AC(SMA) | 4,700 | ₹5.12 · 4,700 in stock | View |
