DIODESDatasheet (PDF)

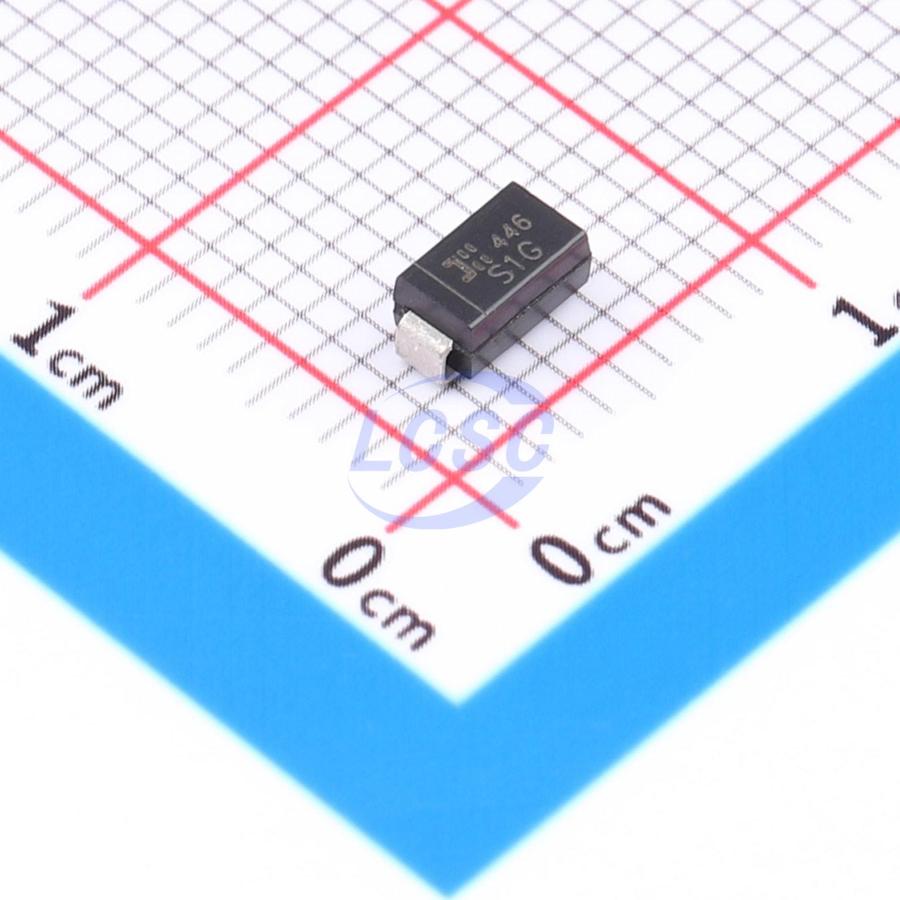

S1G-13-F-10
600V 1 Independent 1.1V@1A 1A SMA Single Diodes
SMARoHSActive
- Manufacturer
- DIODES
- Manufacturer part #
- S1G-13-F-10
- Store part #
- C22731412
- Package / case
- SMA
- Category
- Single Diodes
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
995 in stock
#C22731412
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.78 | ₹38.90 |
| 50+ | ₹7.62 | ₹381.00 |
| 150+ | ₹7.50 | ₹1,125.00 |
| 500+ | ₹7.40 | ₹3,700.00 |
5 × ₹7.78
₹38.90
excl. GST
₹45.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per bag
S1G-13-F-10
₹38.90 for 5 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 600V
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 5,000 / Bag
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.08 g
Overview
Key features
- Glass Passivated Die Construction for High Reliability
- Surge Overload Rating to 30A Peak
- Ideally Suited for Automated Assembly
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | GF1J-E3/67A#C143673VISHAY · DO-214BA | VISHAY | DO-214BA | 50 | ₹58.05 · 50 in stock | View |
 | S1M-M3/61T#C17269411VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,575 | ₹24.37 · 1,575 in stock | View |
 | GN1M#C174024Suzhou Good-Ark Elec · SMA(DO-214AC) | Suzhou Good-Ark Elec | SMA(DO-214AC) | 8,860 | ₹5.66 · 8,860 in stock | View |
 | S1Y-HF#C17452762Comchip · DO-214AC(SMA) | Comchip | DO-214AC(SMA) | 5,000 | ₹19.51 · 5,000 in stock | View |
 | M7#C20622486Wild Goose · SMA(DO-214AC) | Wild Goose | SMA(DO-214AC) | 2,600 | ₹0.8864 · 2,600 in stock | View |
