DIODESDatasheet (PDF)

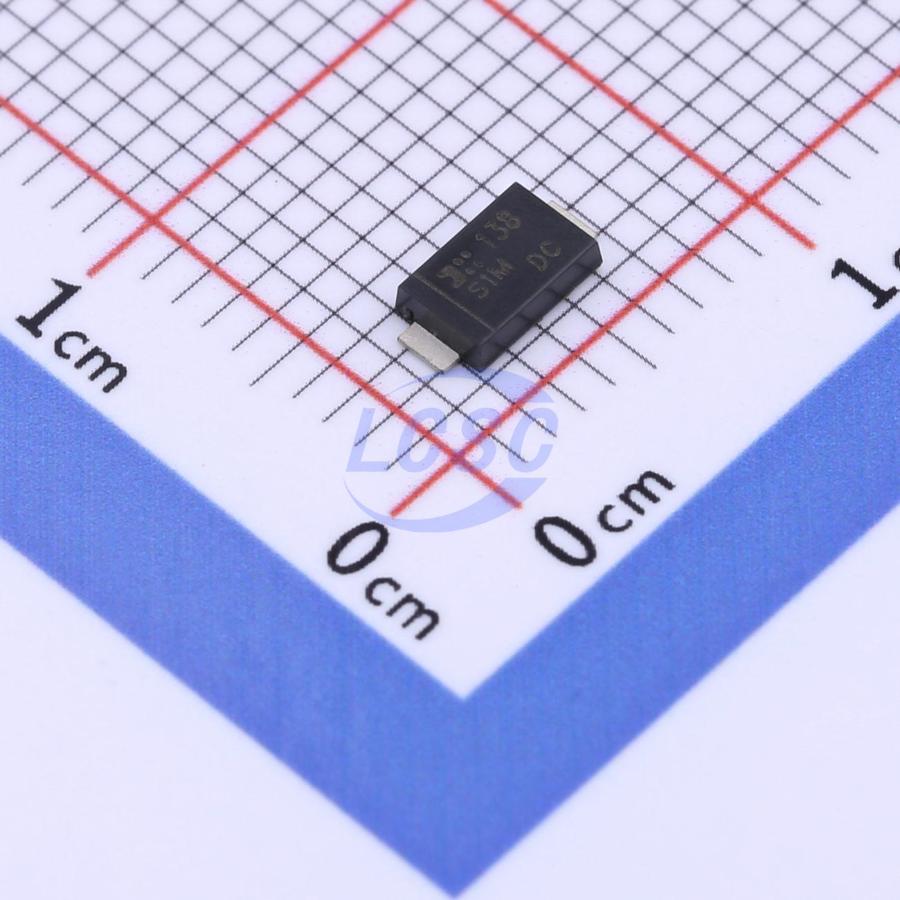

S1MDF-13
Diode 1kV 1A SMD
D-FLATROHS3 CompliantActive
DIODE STANDARD 1kV 1A SMD
- Manufacturer
- DIODES
- Manufacturer part #
- S1MDF-13
- Store part #
- C3002779
- Package / case
- D-FLAT
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
390 in stock
#C3002779
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.07 | ₹50.70 |
| 100+ | ₹4.96 | ₹496.00 |
| 300+ | ₹4.90 | ₹1,470.00 |
| 1,000+ | ₹4.82 | ₹4,820.00 |
10 × ₹5.07
₹50.70
excl. GST
₹59.83 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 10,000 per reel
S1MDF-13
₹50.70 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 110nA@1kV
- Non-Repetitive Peak Forward Surge Current
- 30A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 10,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.043 g
Overview
The S1MDF is a rectifier packaged in the low-profile D-FLAT package. Providing high current capability for standard rectification, this device is ideal for use in general rectification applications.
Applications
- Switching Mode Power Supplies
- Chargers
- LED lightings
- Inverters
- AC/DC Adapters
Key features
- Glass Passivated Die Construction
- Surge Overload Rating to 30A Peak
- High Current Capability
- Low-Profile Design, Package Height Less than 1.1mm
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability An Automotive-Compliant Part is Available Under Separate Datasheet (S1MDFQ)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S1MDFQ-13#C3001452DIODES · D-FLAT | DIODES | D-FLAT | 5 | ₹33.14 · 5 in stock | View |
 | RS1MDFQ-13#C155394DIODES · D-FLAT | DIODES | D-FLAT | 3,580 | ₹18.48 · 3,580 in stock | View |
