VISHAYDatasheet (PDF)

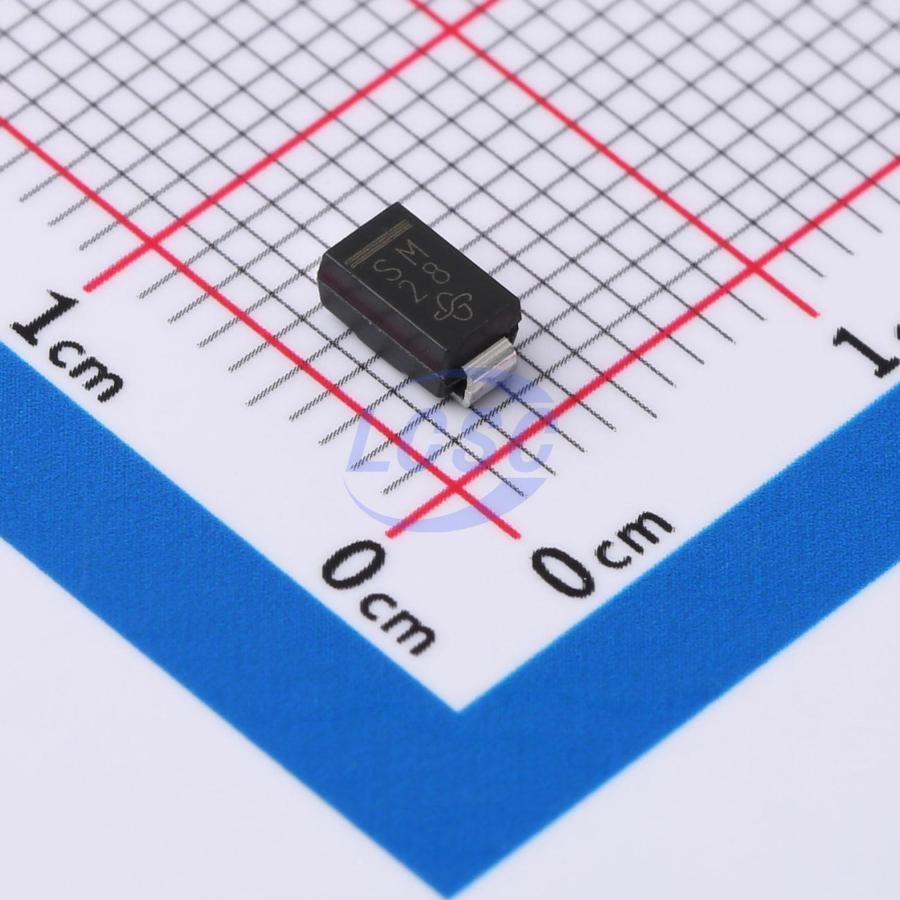

S1MHE3_A/I
Diode 1 Independent 1kV 1A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE STANDARD 1kV 1A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- S1MHE3_A/I
- Store part #
- C241928
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,890 in stock
#C241928
Stock & price checked 12 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.44 | ₹92.20 |
| 50+ | ₹14.70 | ₹735.00 |
| 150+ | ₹12.82 | ₹1,923.00 |
| 500+ | ₹11.40 | ₹5,700.00 |
| 2,500+ | ₹9.02 | ₹22,550.00 |
| 7,500+ | ₹8.47 | ₹63,525.00 |
5 × ₹18.44
₹92.20
excl. GST
₹108.80 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 7,500 per reel
S1MHE3_A/I
₹92.20 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.1V@1A
- Reverse Leakage Current (Ir)
- 5uA
- Current - Rectified
- 1A
- Non-Repetitive Peak Forward Surge Current
- 30A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 7,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.11 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop RoHS COMPLIANT
- Low leakage current HALOGEN
- High forward surge capability FREE
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHE3 or P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S1M-M3/61T#C17269411VISHAY · DO-214AC(SMA) | VISHAY | DO-214AC(SMA) | 1,575 | ₹24.37 · 1,575 in stock | View |
 | GN1M#C174024Suzhou Good-Ark Elec · SMA(DO-214AC) | Suzhou Good-Ark Elec | SMA(DO-214AC) | 8,860 | ₹5.66 · 8,860 in stock | View |
 | H2000#C19273128YFW · SMA | YFW | SMA | 5,000 | ₹6.03 · 5,000 in stock | View |
 | EM520#C20606481YFW · SMA | YFW | SMA | 3,540 | ₹5.48 · 3,540 in stock | View |
 | M7#C20622486Wild Goose · SMA(DO-214AC) | Wild Goose | SMA(DO-214AC) | 2,600 | ₹0.8864 · 2,600 in stock | View |
