onsemiDatasheet (PDF)

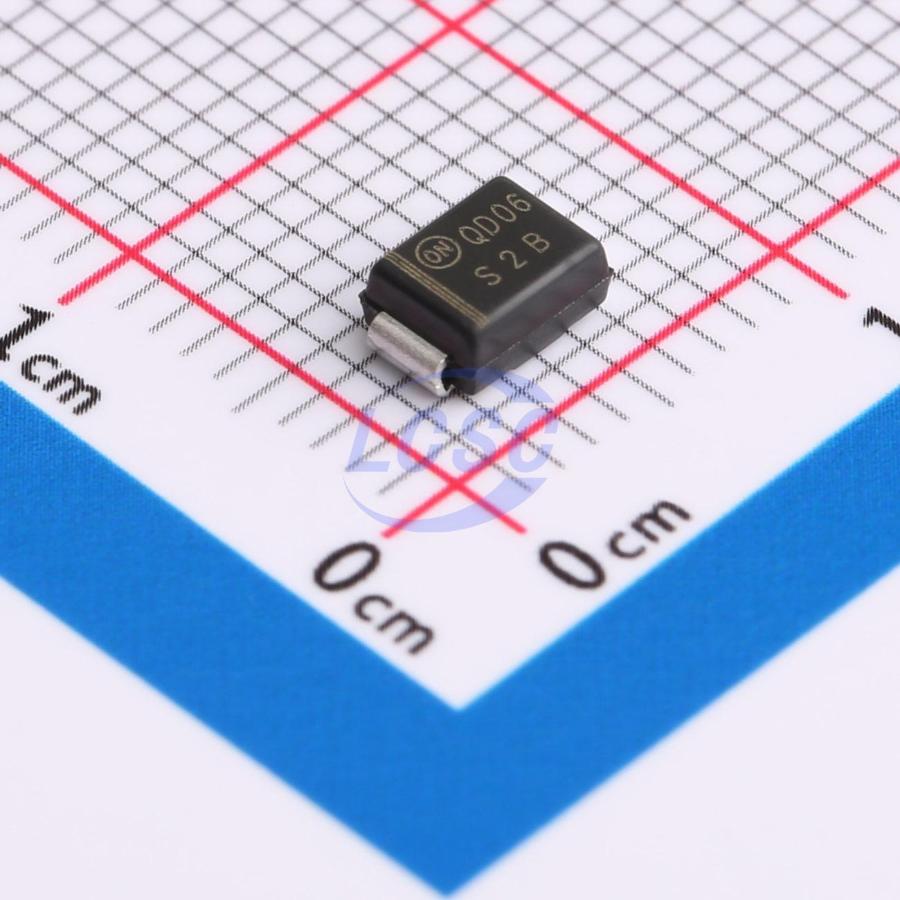

S2B
1 Independent 100V 1.15V@2A 2A DO-214AA(SMB) Single Diodes RoHS
DO-214AA(SMB)ROHS3 CompliantActive
- Manufacturer
- onsemi
- Manufacturer part #
- S2B
- Store part #
- C894238
- Package / case
- DO-214AA(SMB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
17 in stock
#C894238
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹64.97 | ₹64.97 |
| 10+ | ₹51.50 | ₹515.00 |
| 30+ | ₹45.86 | ₹1,375.80 |
| 100+ | ₹38.68 | ₹3,868.00 |
| 500+ | ₹35.43 | ₹17,715.00 |
| 1,000+ | ₹33.68 | ₹33,680.00 |
1 × ₹64.97
₹64.97
excl. GST
₹76.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S2B
₹64.97 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 1.15V@2A
- Reverse Leakage Current (Ir)
- 1uA
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.197 g
Overview
The S2 family of devices are general−purpose 2 A rated rectifiers with voltage ratings ranging from 50 to 1000 V. They are implemented in traditional SMB packages and are well known to the industry.
Applications
- Power Supplies
- AC to DC Rectification
- Bypass Diodes
Key features
- High−Current Capability, 2 A Rated
- Fast Response: 2 s Trr
- Low−Forward Voltage Drop, 1.15 V VF Max at 2 A
- High−Surge Current Capability, 50 A²s IFSM
- Glass Passivated Junction
- UL Certified, UL #E258596
- NRV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NRVS2D#C893739onsemi · SMB | onsemi | SMB | 110 | ₹16.21 · 110 in stock | View |
 | S2J#C894240onsemi · DO-214AA(SMB) | onsemi | DO-214AA(SMB) | 30 | ₹14.65 · 30 in stock | View |
 | S2GHM4G#C3028985Taiwan Semiconductor · DO-214AA | Taiwan Semiconductor | DO-214AA | 620 | ₹10.89 · 620 in stock | View |
 | S2K#C894241onsemi · DO-214AA(SMB) | onsemi | DO-214AA(SMB) | 16 | ₹81.36 · 16 in stock | View |
 | S2M#C232827onsemi · SMB(DO-214AA) | onsemi | SMB(DO-214AA) | 5,210 | ₹28.72 · 5,210 in stock | View |
