DIODESDatasheet (PDF)

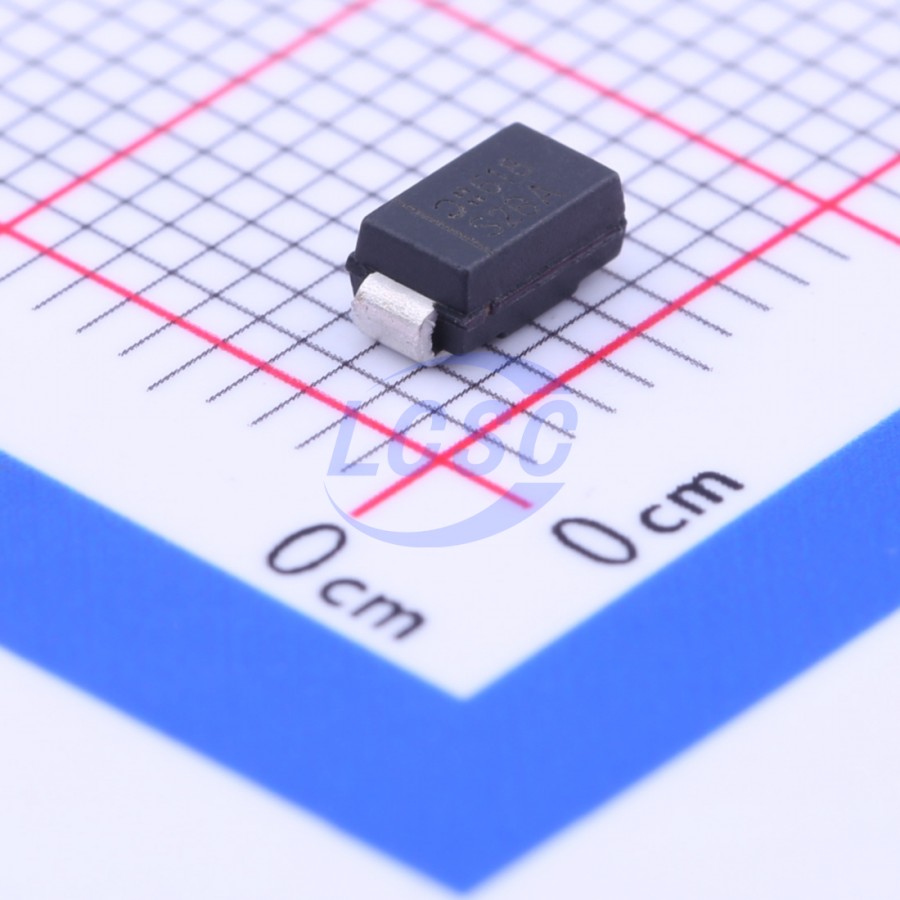

S2BA-13-F
100V 1 Independent 1.15V@1.5A 1.5A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Voltage: 100V Current: 1.5A
- Manufacturer
- DIODES
- Manufacturer part #
- S2BA-13-F
- Store part #
- C150463
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,040 in stock
#C150463
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.34 | ₹56.70 |
| 50+ | ₹9.08 | ₹454.00 |
| 150+ | ₹7.94 | ₹1,191.00 |
| 500+ | ₹7.09 | ₹3,545.00 |
| 2,500+ | ₹6.42 | ₹16,050.00 |
| 5,000+ | ₹6.07 | ₹30,350.00 |
5 × ₹11.34
₹56.70
excl. GST
₹66.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
S2BA-13-F
₹56.70 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 1.15V@1.5A
- Reverse Leakage Current (Ir)
- 5uA@100V
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.148 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 50A Peak
- Ideally Suited for Automated Assembly
- Lead Free Finish/RoHS Compliant
- Green Molding Compound (No Halogen and Antimony)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S2DA-13-F#C150459DIODES · SMA | DIODES | SMA | 5,000 | ₹8.43 · 5,000 in stock | View |
 | S2GA-13-F#C674403DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 2,750 | ₹10.17 · 2,750 in stock | View |
 | S2JA-13-F#C780889DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 1,795 | ₹11.93 · 1,795 in stock | View |
 | GS2GAQ#C2942568YANGJIE · SMA(DO-214AC) | YANGJIE | SMA(DO-214AC) | 5,910 | ₹7.77 · 5,910 in stock | View |
 | S2MA-13-F#C513098DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 5,100 | ₹15.72 · 5,100 in stock | View |
