DIODESDatasheet (PDF)

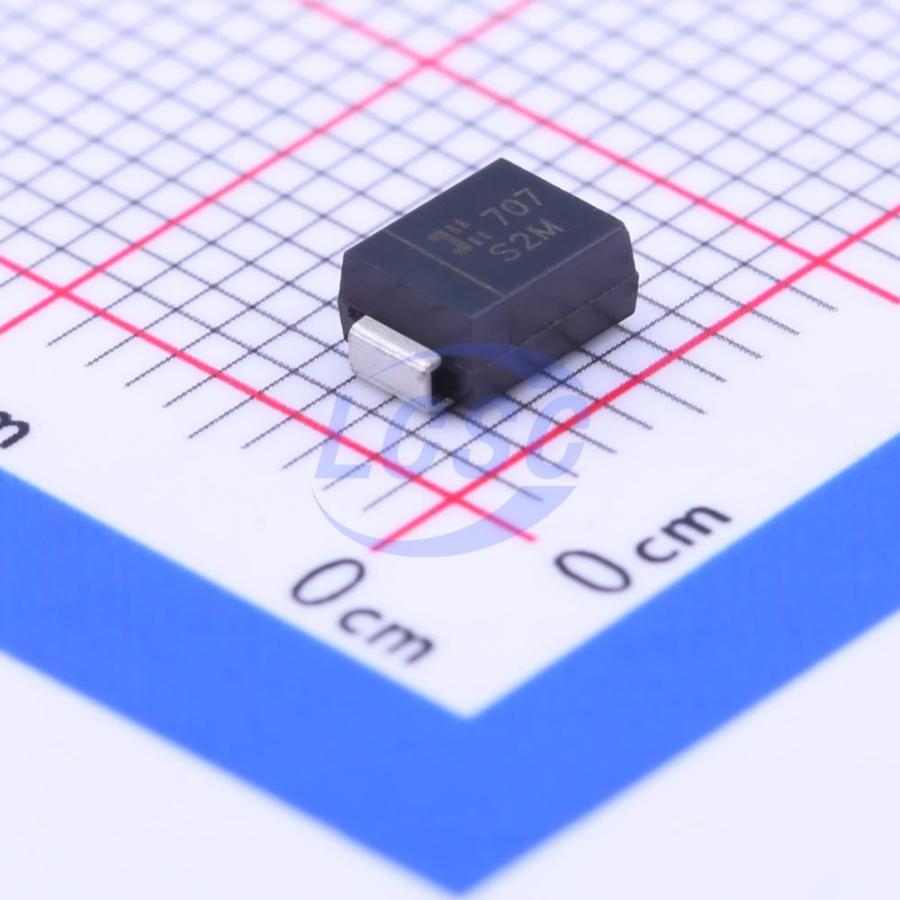

S2M-13-F
1 Independent 1kV 1.15V@1.5A 1.5A SMB(DO-214AA) Single Diodes RoHS
SMB(DO-214AA)ROHS3 CompliantActive
Voltage: 1kV Current: 1.5A
- Manufacturer
- DIODES
- Manufacturer part #
- S2M-13-F
- Store part #
- C156322
- Package / case
- SMB(DO-214AA)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
260 in stock
#C156322
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.84 | ₹69.20 |
| 50+ | ₹11.51 | ₹575.50 |
| 150+ | ₹10.35 | ₹1,552.50 |
| 500+ | ₹9.47 | ₹4,735.00 |
| 3,000+ | ₹8.77 | ₹26,310.00 |
| 6,000+ | ₹8.41 | ₹50,460.00 |
5 × ₹13.84
₹69.20
excl. GST
₹81.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S2M-13-F
₹69.20 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 1.15V@1.5A
- Reverse Leakage Current (Ir)
- 5uA@1kV
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.207 g
Overview
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 50A Peak
- Ideally Suited for Automated Assembly
- Lead Free Finish/RoHS Compliant
- Green Molding Compound (No Halogen and Antimony)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S2M-LTP#C668987MCC · SMB(DO-214AA) | MCC | SMB(DO-214AA) | 5,700 | ₹10.08 · 5,700 in stock | View |
 | S2M#C2766056WPMtek · SMB(DO-214AA) | WPMtek | SMB(DO-214AA) | 1,950 | ₹2.61 · 1,950 in stock | View |
 | S2MB#C5122562Slkor · SMB | Slkor | SMB | 3,040 | ₹3.35 · 3,040 in stock | View |
 | S2W#C49242803PDW · SMB(DO-214AA) | PDW | SMB(DO-214AA) | 980 | ₹5.19 · 980 in stock | View |
 | S2M(SMBF)#C51883251Huixin · SMB | Huixin | SMB | 4,960 | ₹5.98 · 4,960 in stock | View |
