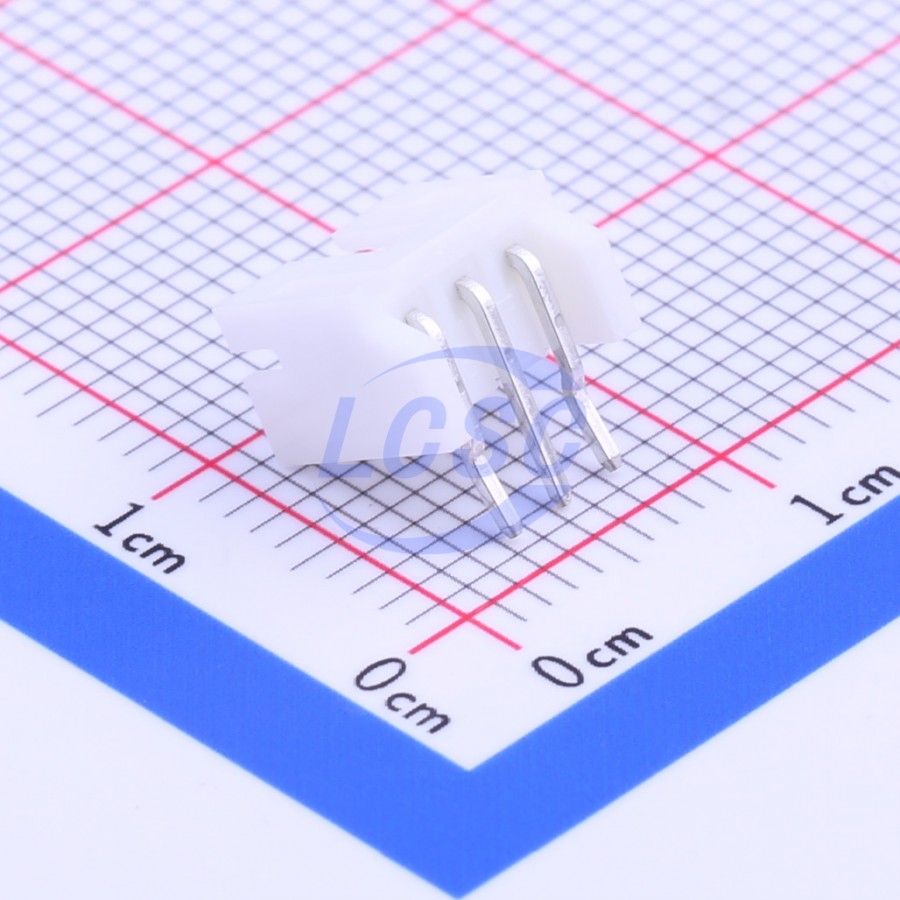

S3B-PH-K-S(LF)(SN)
Connector Header 3 position 2mm Pitch 2A Right Angle -25℃~+85℃
PopularThrough Hole,Right Angle,P=2mmROHS3 CompliantActive
CONN HEADER TH R/A 3POS 2mm
- Manufacturer
- JST
- Manufacturer part #
- S3B-PH-K-S(LF)(SN)
- Store part #
- C157929
- Package / case
- Through Hole,Right Angle,P=2mm
- Category
- Headers, Male Pins
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,20,720 in stock
#C157929
Stock & price checked 4 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹4.92 | ₹49.20 |
| 100+ | ₹4.39 | ₹439.00 |
| 300+ | ₹4.11 | ₹1,233.00 |
| 1,000+ | ₹3.93 | ₹3,930.00 |
| 5,000+ | ₹3.76 | ₹18,800.00 |
| 10,000+ | ₹3.68 | ₹36,800.00 |
10 × ₹4.92
₹49.20
excl. GST
₹58.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
S3B-PH-K-S(LF)(SN)
₹49.20 for 10 + GST
Specifications
- Connector Type
- Right Angle
- Reference Series
- PH
- Voltage Rating (Max)
- 100V
- Contact Material
- Brass
- Number of PINs Per Row
- 3
- Number of Rows
- 1
- Pitch
- 2mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 2A
- Supplementary Features
- K Pin
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Number of PINs
- 3P
- Plastic Material
- PA66
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 7.9mm
- Pin Structure
- 1x3P
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.252 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S3B-PH-K-S-2.8(LF)(SN)#C160775JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 210 | ₹24.41 · 210 in stock | View |
 | S3B-PH-K(LF)(SN)#C545716JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 13,355 | ₹7.74 · 13,355 in stock | View |
| S3B-PH-K-S-GW#C595001JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 9 | ₹55.79 · 9 in stock | View | |
 | S3B-PH-KL(LF)(SN)#C160236JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 12,260 | ₹8.76 · 12,260 in stock | View |
 | HC-PH-3AWD-B-K-10#C19723647HCTL · Through Hole,Right Angle,P=2mm | HCTL | Through Hole,Right Angle,P=2mm | 5,850 | ₹2.49 · 5,850 in stock | View |
