onsemiDatasheet (PDF)

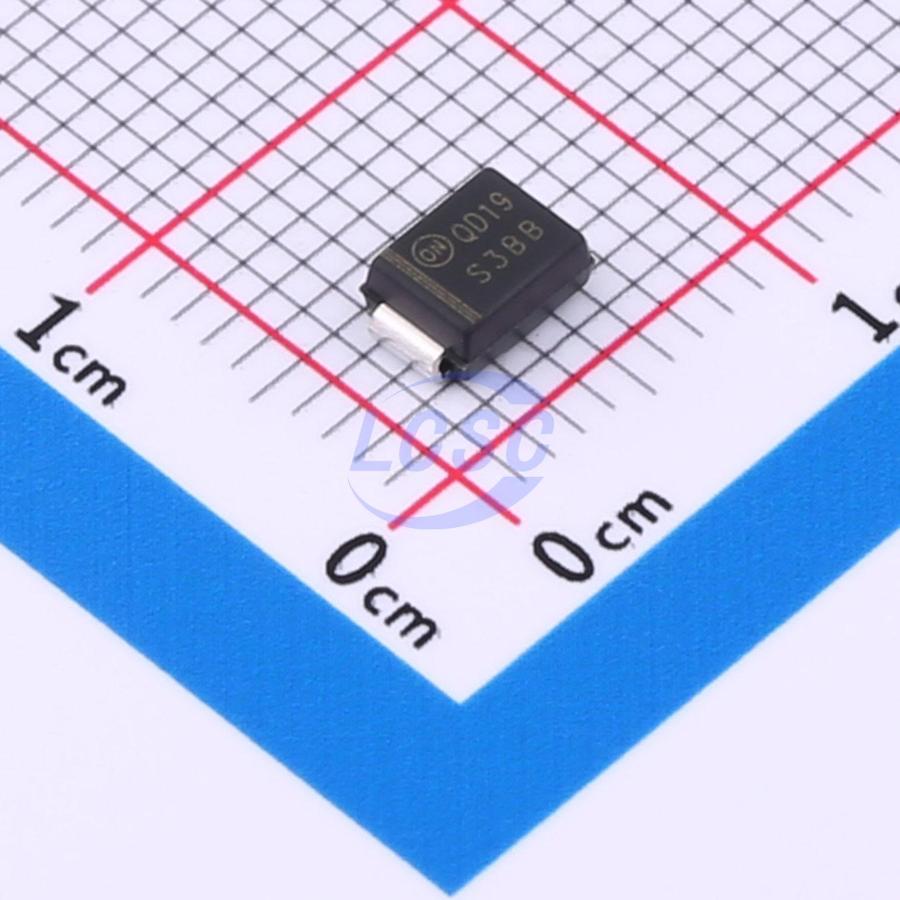

S3BB
Diode Independent 30V 3A Surface Mount DO-214AA
DO-214AAROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-214AA
- Manufacturer
- onsemi
- Manufacturer part #
- S3BB
- Store part #
- C604671
- Package / case
- DO-214AA
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
205 in stock
#C604671
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹37.40 | ₹187.00 |
| 50+ | ₹29.75 | ₹1,487.50 |
| 150+ | ₹26.49 | ₹3,973.50 |
| 500+ | ₹22.40 | ₹11,200.00 |
| 3,000+ | ₹20.59 | ₹61,770.00 |
| 6,000+ | ₹19.50 | ₹1,17,000.00 |
5 × ₹37.40
₹187.00
excl. GST
₹220.66 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S3BB
₹187.00 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 550mV@700mA
- Reverse Leakage Current (Ir)
- 80uA@15V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 3A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.199 g
Overview
Key features
- Glass passivated chip junction
- High surge current capability
- Low forward voltage: 1.15 V maximum
- UL flammability 94V-0 rated
- MSL 1 per J-STD-020
- RoHS/green molding compound compliant
- NRV prefix for automotive and other applications requiring unique site and control change requirements; AEC-Q101 qualified and PPAP capable
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SS34B#C7450521LangJie · DO-214AA | LangJie | DO-214AA | 2,000 | ₹5.94 · 2,000 in stock | View |
 | B340B-13#C18199376GOODWORK · SMB(DO-214AA) | GOODWORK | SMB(DO-214AA) | 4,080 | ₹6.14 · 4,080 in stock | View |
 | SS34-SMB#C908684GOODWORK · SMB(DO-214AA) | GOODWORK | SMB(DO-214AA) | 78,860 | ₹5.90 · 78,860 in stock | View |
 | SS34B#C13762MDD(Microdiode Semiconductor) · SMB(DO-214AA) | MDD(Microdiode Semiconductor) | SMB(DO-214AA) | 1,78,500 | ₹6.38 · 1,78,500 in stock | View |
 | SS34#C1884574YFW · SMB | YFW | SMB | 4,720 | ₹7.17 · 4,720 in stock | View |
