JSTDatasheet (PDF)

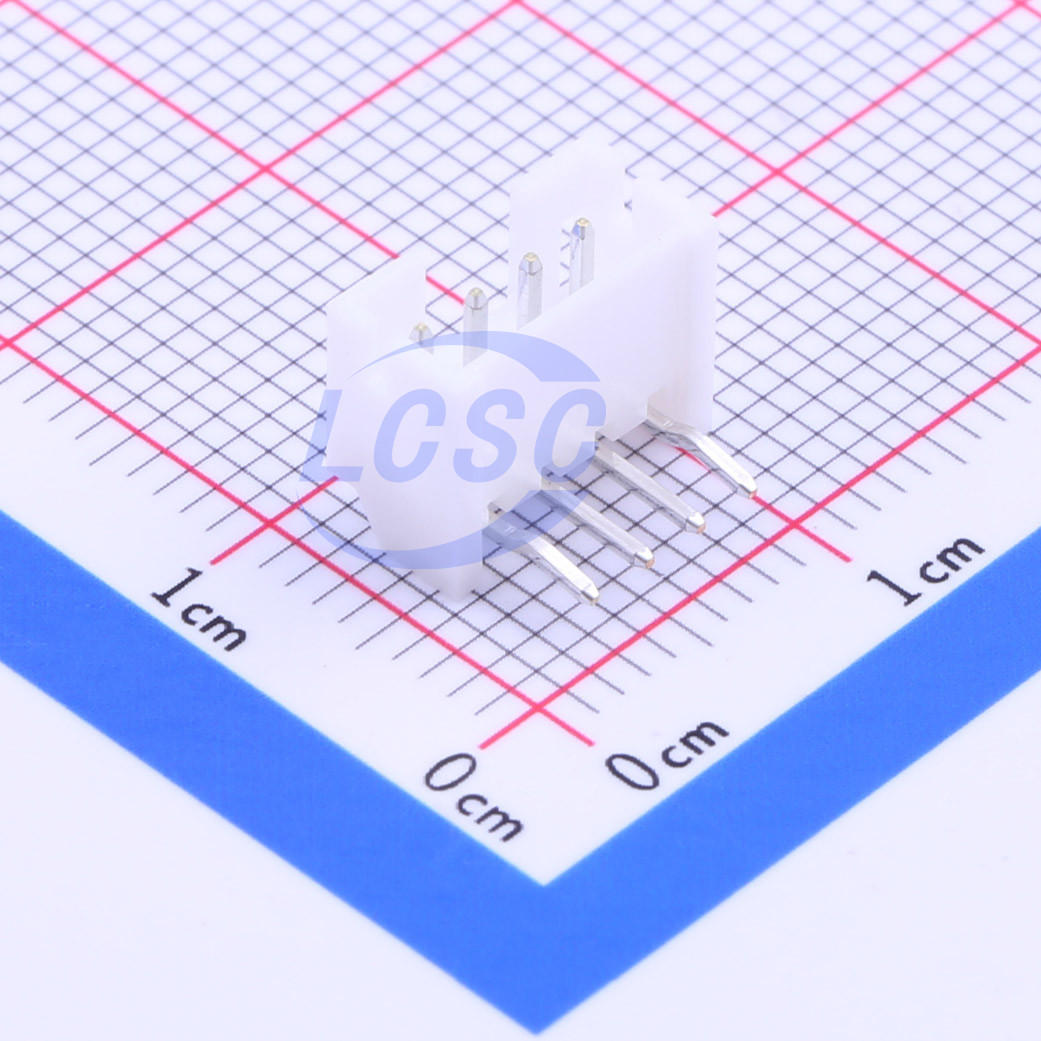

S4B-PH-K-S(LF)(SN)
Connector Header 4 position 2mm Pitch 2A Right Angle -25℃~+85℃
PopularThrough Hole,Right Angle,P=2mmRoHSActive
CONN HEADER TH R/A 4POS 2mm
- Manufacturer
- JST
- Manufacturer part #
- S4B-PH-K-S(LF)(SN)
- Store part #
- C157926
- Package / case
- Through Hole,Right Angle,P=2mm
- Category
- Headers, Male Pins
- Packaging
- Box-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,560 in stock
#C157926
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.91 | ₹99.10 |
| 100+ | ₹8.32 | ₹832.00 |
| 500+ | ₹7.32 | ₹3,660.00 |
| 1,000+ | ₹6.73 | ₹6,730.00 |
| 5,000+ | ₹6.26 | ₹31,300.00 |
| 10,000+ | ₹6.02 | ₹60,200.00 |
10 × ₹9.91
₹99.10
excl. GST
₹116.94 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 500 per box
S4B-PH-K-S(LF)(SN)
₹99.10 for 10 + GST
Specifications
- Connector Type
- Right Angle
- Reference Series
- PH
- Voltage Rating (Max)
- 100V
- Contact Material
- Brass
- Number of PINs Per Row
- 4
- Number of Rows
- 1
- Pitch
- 2mm
- Flame Retardant Rating
- UL94V-0
- Current Rating
- 2A
- Supplementary Features
- K Pin
- Operating Temperature
- -25℃~+85℃
- Contact Plating
- Tin
- Number of PINs
- 4P
- Plastic Material
- PA66
- Color
- White
- X-Length of Bottom Edge on Board (Spacing Line)
- 9.9mm
- Pin Structure
- 1x4P
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Box-packed
- Standard pack
- 500 / Box
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.432 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S4B-PH-K(LF)(SN)#C265452JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 3,545 | ₹17.73 · 3,545 in stock | View |
 | S4B-PH-K-R(LF)(SN)#C566226JST · Through Hole | JST | Through Hole | 115 | ₹7.74 · 115 in stock | View |
 | S4B-PH-KL(LF)(SN)#C160235JST · Through Hole,Right Angle,P=2mm | JST | Through Hole,Right Angle,P=2mm | 6,835 | ₹18.47 · 6,835 in stock | View |
 | HC-PH-4AWD-B-K-10#C19723640HCTL · Through Hole,Right Angle,P=2mm | HCTL | Through Hole,Right Angle,P=2mm | 6,280 | ₹3.23 · 6,280 in stock | View |
 | HC-PH-4AWD-V-K-10#C19723641HCTL · Through Hole,Right Angle,P=2mm | HCTL | Through Hole,Right Angle,P=2mm | 1,660 | ₹3.16 · 1,660 in stock | View |
