VISHAYDatasheet (PDF)

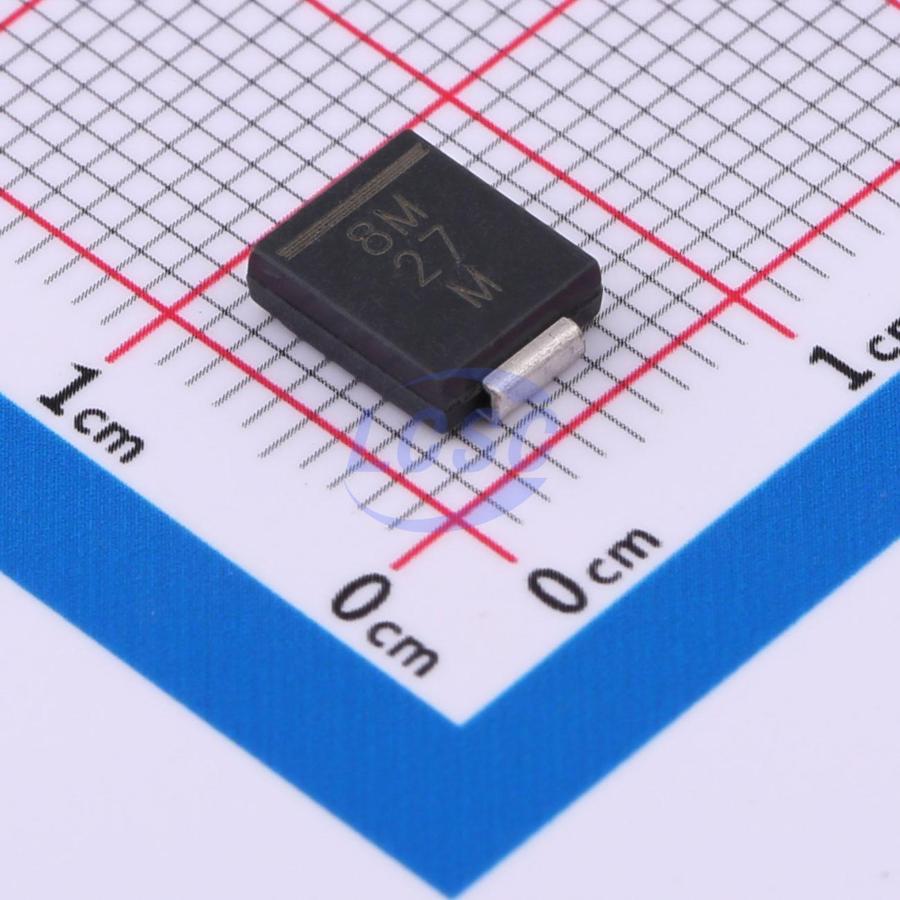

S8CM-M3/I
Diode 1 Independent 1kV Surface Mount DO-214AB(SMC)
DO-214AB(SMC)ROHS3 CompliantActive
DIODE STANDARD 1kV DO-214AB(SMC)
- Manufacturer
- VISHAY
- Manufacturer part #
- S8CM-M3/I
- Store part #
- C5359571
- Package / case
- DO-214AB(SMC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,525 in stock
#C5359571
Stock & price checked 13 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.14 | ₹235.70 |
| 50+ | ₹37.37 | ₹1,868.50 |
| 150+ | ₹33.19 | ₹4,978.50 |
| 500+ | ₹27.97 | ₹13,985.00 |
| 3,500+ | ₹25.64 | ₹89,740.00 |
| 7,000+ | ₹24.25 | ₹1,69,750.00 |
5 × ₹47.14
₹235.70
excl. GST
₹278.13 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,500 per reel
S8CM-M3/I
₹235.70 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 1kV
- Voltage - Forward(Vf@If)
- 985mV@8A
- Reverse Leakage Current (Ir)
- 10uA
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.718 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters, and freewheeling diodes for consumer, automotive, and telecommunication.
Key features
- Low profile package Available
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
- AEC-Q101 qualified available - Automotive ordering code: base P/NHM3
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S8MC#C437708Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 1,130 | ₹7.82 · 1,130 in stock | View |
 | S8M#C5365436JUXING · SMC | JUXING | SMC | 2,060 | ₹9.37 · 2,060 in stock | View |
 | S8MCQ-13#C5245037DIODES · SMC | DIODES | SMC | 149 | ₹173.04 · 149 in stock | View |
 | GS8MQ#C698628YANGJIE · SMC(DO-214AB) | YANGJIE | SMC(DO-214AB) | 1,120 | ₹32.40 · 1,120 in stock | View |
 | GS10MQ#C2942565YANGJIE · SMC | YANGJIE | SMC | 215 | ₹32.25 · 215 in stock | View |
