DIODESDatasheet (PDF)
S8KC-13
1 Independent 800V 985mV@8A 8A SMC(DO-214AB) Single Diodes RoHS
SMC(DO-214AB)ROHS3 CompliantActive
Voltage： 800V Current： 8A
- Manufacturer
- DIODES
- Manufacturer part #
- S8KC-13
- Store part #
- C460741
- Package / case
- SMC(DO-214AB)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,265 in stock
#C460741
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.73 | ₹238.65 |
| 50+ | ₹39.86 | ₹1,993.00 |
| 150+ | ₹36.50 | ₹5,475.00 |
| 500+ | ₹32.29 | ₹16,145.00 |
| 3,000+ | ₹30.42 | ₹91,260.00 |
| 6,000+ | ₹29.29 | ₹1,75,740.00 |
5 × ₹47.73
₹238.65
excl. GST
₹281.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S8KC-13
₹238.65 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 985mV@8A
- Reverse Leakage Current (Ir)
- 10uA@800V
- Non-Repetitive Peak Forward Surge Current
- 200A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.287 g
Overview

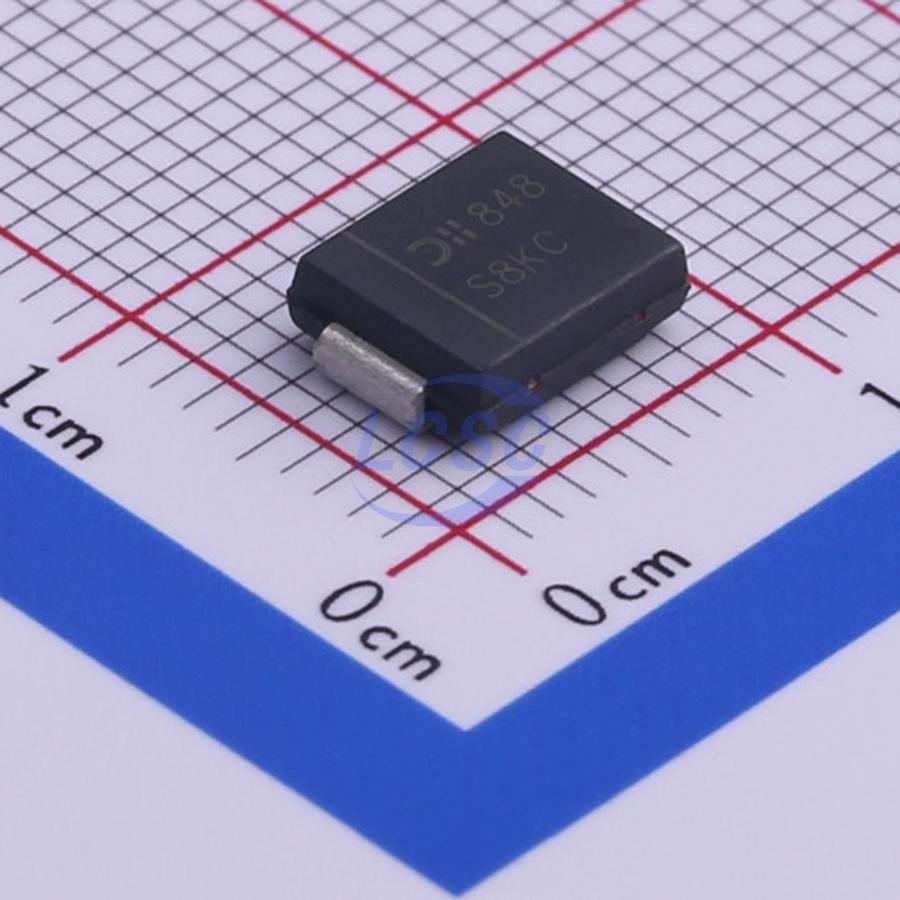

8.0A Surface Mount Glass Passivated Rectifier in SMC package, offers high current capability and low forward voltage drop, designed with Guard Ring for Transient Protection and high surge capacity.
Key features
- Glass Passivated Die Construction
- Low Forward Voltage Drop and High Current Capability
- Surge Overload Rating to 200A Peak
- Ideally Suited for Automated Assembly
- Lead Free Finish/RoHS Compliant
- Halogen and Antimony Free. “Green” Device
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S8KC#C437707Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 5,300 | ₹7.98 · 5,300 in stock | View |
 | S8MC#C437708Jingdao Microelectronics · SMC | Jingdao Microelectronics | SMC | 1,130 | ₹7.82 · 1,130 in stock | View |
 | S8M#C5365436JUXING · SMC | JUXING | SMC | 2,060 | ₹9.37 · 2,060 in stock | View |
 | GS8KQ#C5861881YANGJIE · SMC(DO-214AB) | YANGJIE | SMC(DO-214AB) | 525 | ₹19.05 · 525 in stock | View |
 | GS8MQ#C698628YANGJIE · SMC(DO-214AB) | YANGJIE | SMC(DO-214AB) | 1,120 | ₹32.40 · 1,120 in stock | View |
