R+ODatasheet (PDF)

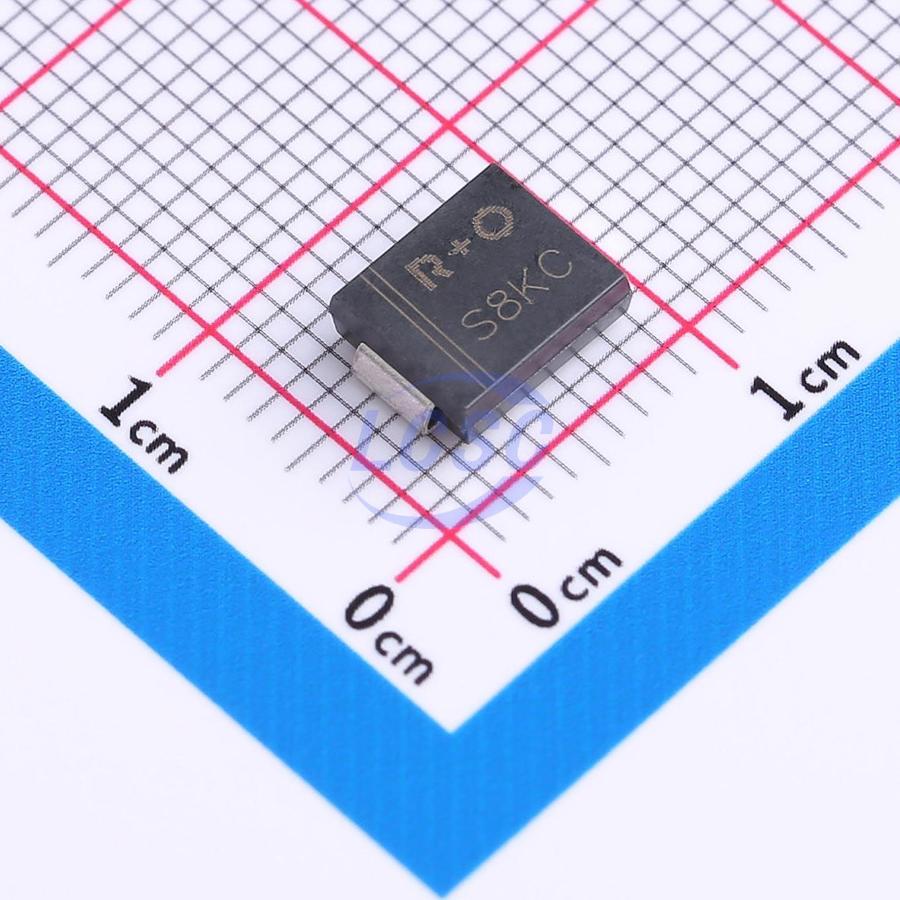

S8KC
Diode Independent 800V 8A Surface Mount SMC
SMCROHS CompliantActive
DIODE STANDARD 800V 8A SMC
- Manufacturer
- R+O
- Manufacturer part #
- S8KC
- Store part #
- C18199108
- Package / case
- SMC
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,465 in stock
#C18199108
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹7.77 | ₹38.85 |
| 50+ | ₹6.89 | ₹344.50 |
| 150+ | ₹6.46 | ₹969.00 |
| 500+ | ₹6.13 | ₹3,065.00 |
| 3,000+ | ₹5.11 | ₹15,330.00 |
| 6,000+ | ₹4.97 | ₹29,820.00 |
5 × ₹7.77
₹38.85
excl. GST
₹45.84 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
S8KC
₹38.85 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 800V
- Voltage - Forward(Vf@If)
- 1V@8A
- Reverse Leakage Current (Ir)
- 2uA@800V
- Non-Repetitive Peak Forward Surge Current
- 175A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.354 g
Overview
Applications
- General rectification for power supplies
- General rectification for inverters
- General rectification for converters
- Freewheeling diode
Key features
- Surface mount application
- Low reverse leakage current
- High forward surge current capability
- Glass passivated standard rectifier
- MSL Level 1 per J-STD-020, 260°C peak temperature
