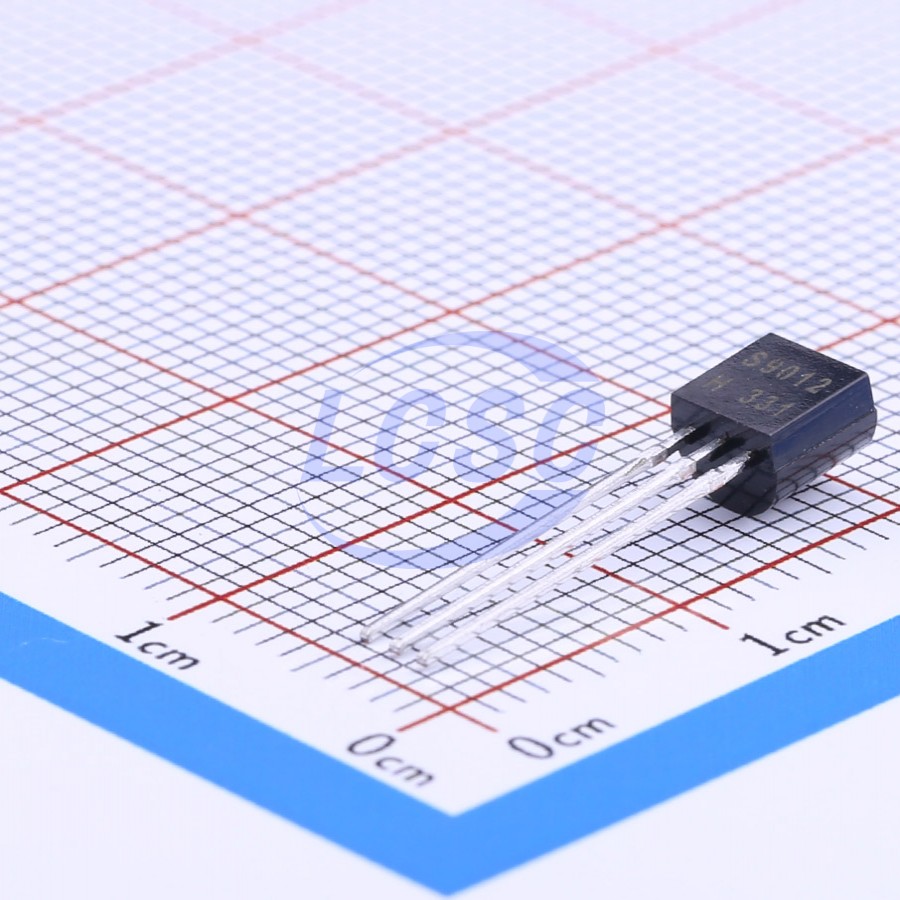

S9012(RANGE:144-202)
Bipolar (BJT) Transistor PNP 25V 0.5A 150MHz 625mW Through Hole TO-92
TO-92ROHS CompliantActive
TRANS PNP 25V 0.5A TO-92
- Manufacturer
- JSCJ
- Manufacturer part #
- S9012(RANGE:144-202)
- Store part #
- C147853
- Package / case
- TO-92
- Category
- Single Bipolar Transistors
- Packaging
- Bag-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
860 in stock
#C147853
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹4.34 | ₹86.80 |
| 200+ | ₹3.43 | ₹686.00 |
| 1,000+ | ₹2.84 | ₹2,840.00 |
| 2,000+ | ₹2.54 | ₹5,080.00 |
| 10,000+ | ₹2.28 | ₹22,800.00 |
| 20,000+ | ₹2.13 | ₹42,600.00 |
20 × ₹4.34
₹86.80
excl. GST
₹102.42 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per bag
S9012(RANGE:144-202)
₹86.80 for 20 + GST
Specifications
- Current - Collector Cutoff
- 100nA
- Transition frequency(fT)
- 150MHz
- Collector - Emitter Voltage VCEO
- 25V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 144
- Current - Collector(Ic)
- 500mA
- Pd - Power Dissipation
- 625mW
- Number
- 1 PNP
- type
- PNP
- Vce Saturation(VCE(sat))
- 600mV
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Bag-packed
- Standard pack
- 1,000 / Bag
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.213 g
Overview
Key features
- Complementary to S9013
- Excellent hFE linearity
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S9012(RANGE:144-202)#C12053JSCJ · TO-92 | JSCJ | TO-92 | 12,600 | ₹5.34 · 12,600 in stock | View |
 | S9012-TA(RANGE:144-202)#C15086JSCJ · TO-92 | JSCJ | TO-92 | 1,940 | ₹4.90 · 1,940 in stock | View |
 | S8550(RANGE:160-300)#C141644JSCJ · TO-92 | JSCJ | TO-92 | 2,700 | ₹4.26 · 2,700 in stock | View |
 | S8550-TA(RANGE:160-300)#C147846JSCJ · TO-92 | JSCJ | TO-92 | 820 | ₹4.15 · 820 in stock | View |
 | S8550(RANGE:120-200)#C141645JSCJ · TO-92 | JSCJ | TO-92 | 340 | ₹3.98 · 340 in stock | View |
