VISHAYDatasheet (PDF)

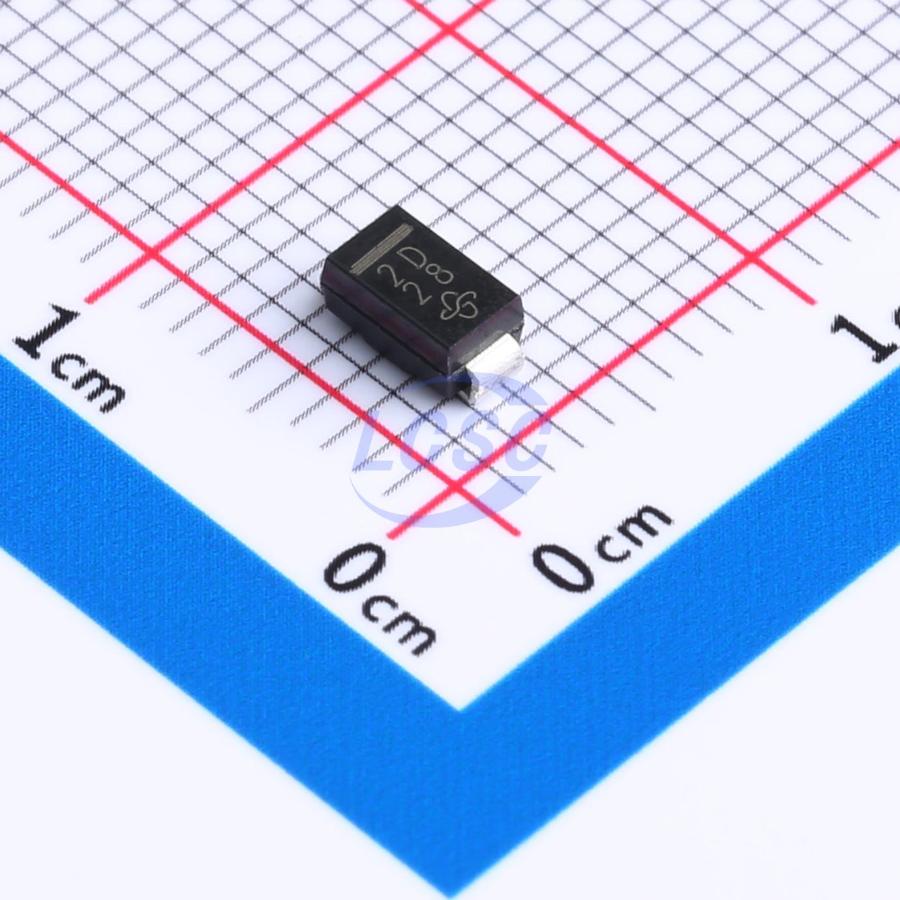

SA2D-E3/61T
Diode 1 Independent 200V 2A Surface Mount SMA(DO-214AC)
SMA(DO-214AC)ROHS3 CompliantActive
DIODE STANDARD 200V 2A SMA(DO-214AC)
- Manufacturer
- VISHAY
- Manufacturer part #
- SA2D-E3/61T
- Store part #
- C5241890
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C5241890
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹26.25 | ₹131.25 |
| 50+ | ₹20.74 | ₹1,037.00 |
| 150+ | ₹18.39 | ₹2,758.50 |
| 500+ | ₹15.44 | ₹7,720.00 |
| 1,800+ | ₹12.38 | ₹22,284.00 |
| 5,400+ | ₹11.60 | ₹62,640.00 |
5 × ₹26.25
₹131.25
excl. GST
₹154.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,800 per reel
SA2D-E3/61T
₹131.25 for 5 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 200V
- Voltage - Forward(Vf@If)
- 1.1V@2A
- Reverse Leakage Current (Ir)
- 3uA
- Non-Repetitive Peak Forward Surge Current
- 55A
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,800 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.12 g
Overview
Applications
- For use in general purpose rectification of power supplies, inverters, converters and freewheeling diodes for consumer and telecommunication.
Key features
- Low profile package
- Ideal for automated placement
- Glass passivated pellet chip junction
- Low forward voltage drop
- Low leakage current
- High forward surge capability
- Meets MSL level 1, per J-STD-020, LF maximum peak of 260 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | S2MA#C3018538FUXINSEMI · SMA(DO-214AC) | FUXINSEMI | SMA(DO-214AC) | 27,780 | ₹1.55 · 27,780 in stock | View |
 | S2M#C49384273HT(Shenzhen Jinyu Semicon) · SMA | HT(Shenzhen Jinyu Semicon) | SMA | 850 | ₹1.88 · 850 in stock | View |
 | S2MA#C5190209Guangdong Hottech · DO-214AC(SMA) | Guangdong Hottech | DO-214AC(SMA) | 1,950 | ₹2.46 · 1,950 in stock | View |
 | S3MA#C53433001YTL · SMA | YTL | SMA | 1,350 | ₹2.59 · 1,350 in stock | View |
 | S2M#C49234371MOT · SMA | MOT | SMA | 4,800 | ₹1.87 · 4,800 in stock | View |
