HGSEMIDatasheet (PDF)

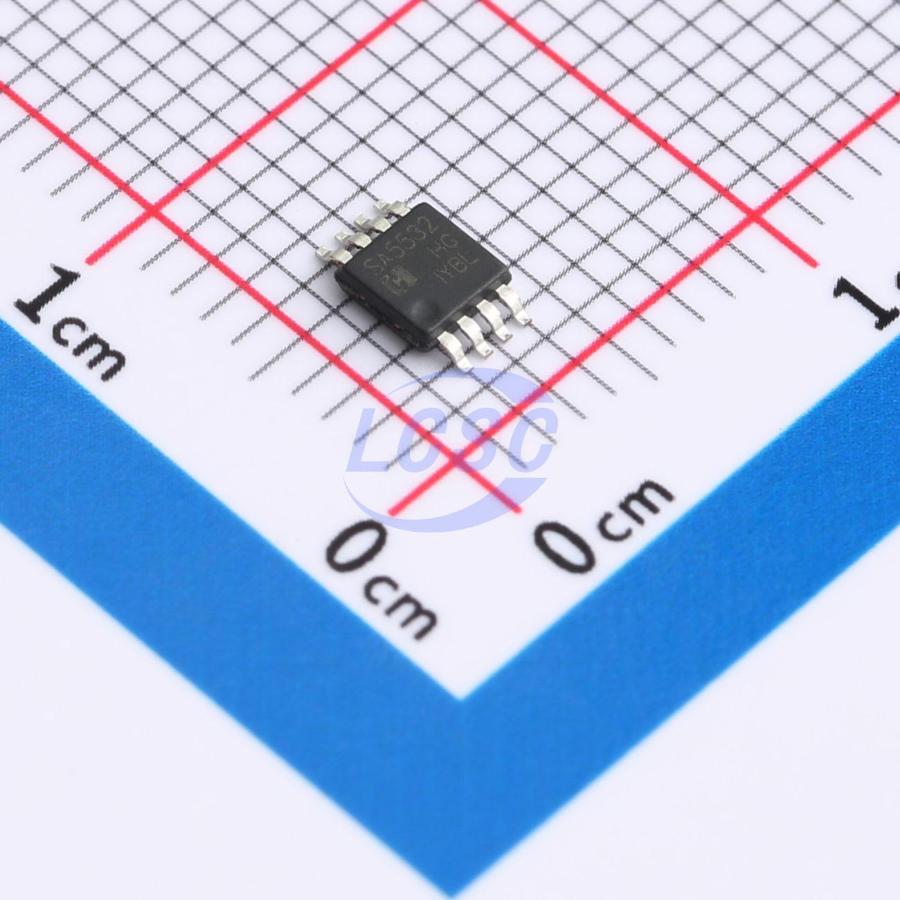

SA5532MM/TR
Standard (General Purpose) Amplifier 2 Circuit MSOP-8
MSOP-8RoHSActive
Dual Operational Amplifier
- Manufacturer
- HGSEMI
- Manufacturer part #
- SA5532MM/TR
- Store part #
- C20613254
- Package / case
- MSOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,580 in stock
#C20613254
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.54 | ₹72.70 |
| 50+ | ₹12.57 | ₹628.50 |
| 150+ | ₹11.72 | ₹1,758.00 |
| 500+ | ₹10.66 | ₹5,330.00 |
| 3,000+ | ₹10.64 | ₹31,920.00 |
| 6,000+ | ₹10.36 | ₹62,160.00 |
5 × ₹14.54
₹72.70
excl. GST
₹85.79 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SA5532MM/TR
₹72.70 for 5 + GST
Specifications
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 500uV
- Slew Rate
- 11V/us
- Input Offset Current(Ios)
- 200nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 30nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Gain Bandwidth Product
- 10MHz
- Input Voltage Noise Density
- 8nV/√Hz@1kHz
- Dual Supply
- -22V~22V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.188 g
