VISHAYDatasheet (PDF)

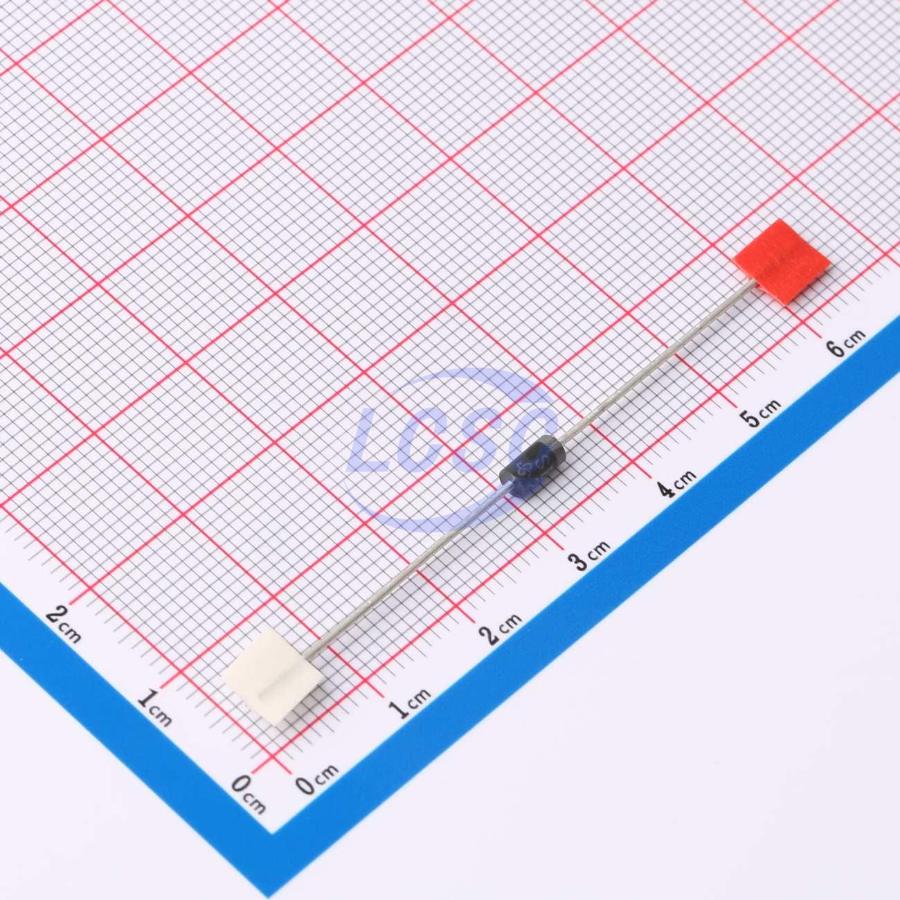

SB130-E3/54
Diode 1 Independent 30V 1A Through Hole DO-204AL(DO-41)
DO-204AL(DO-41)ROHS3 CompliantActive
DIODE SCHOTTKY 30V DO-204AL(DO-41)
- Manufacturer
- VISHAY
- Manufacturer part #
- SB130-E3/54
- Store part #
- C3758609
- Package / case
- DO-204AL(DO-41)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
30 in stock
#C3758609
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹21.84 | ₹109.20 |
| 50+ | ₹17.34 | ₹867.00 |
| 150+ | ₹15.41 | ₹2,311.50 |
| 500+ | ₹13.01 | ₹6,505.00 |
| 2,500+ | ₹11.93 | ₹29,825.00 |
| 5,500+ | ₹11.29 | ₹62,095.00 |
5 × ₹21.84
₹109.20
excl. GST
₹128.86 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
SB130-E3/54
₹109.20 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -65℃~+125℃
- Voltage - DC Reverse (Vr) (Max)
- 30V
- Voltage - Forward(Vf@If)
- 480mV@1A
- Reverse Leakage Current (Ir)
- 500uA@30V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.331 g
Overview
Applications
- For use in low voltage high frequency inverters
- Freewheeling
- DC/DC converters
- Polarity protection applications
Key features
- Guardring for overvoltage protection
- Very small conduction losses
- Extremely fast switching
- Low forward voltage drop
- High forward surge capability
- High frequency operation
- Solder dip 275℃ max. 10 s, per JESD 22 - B106
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SB140-E3/54#C142601VISHAY · DO-41 | VISHAY | DO-41 | 9,735 | ₹13.98 · 9,735 in stock | View |
| SB140-E3/73#C6801405VISHAY · DO-204AL(DO-41) | VISHAY | DO-204AL(DO-41) | 85 | ₹20.31 · 85 in stock | View | |
 | SR240#C331737GW · DO-41 | GW | DO-41 | 10 | ₹9.18 · 10 in stock | View |
 | SB140-T#C516611DIODES · DO-41 | DIODES | DO-41 | 570 | ₹10.66 · 570 in stock | View |
 | SB150-E3/54#C145422VISHAY · DO-41 | VISHAY | DO-41 | 2,575 | ₹13.85 · 2,575 in stock | View |
