VISHAYDatasheet (PDF)

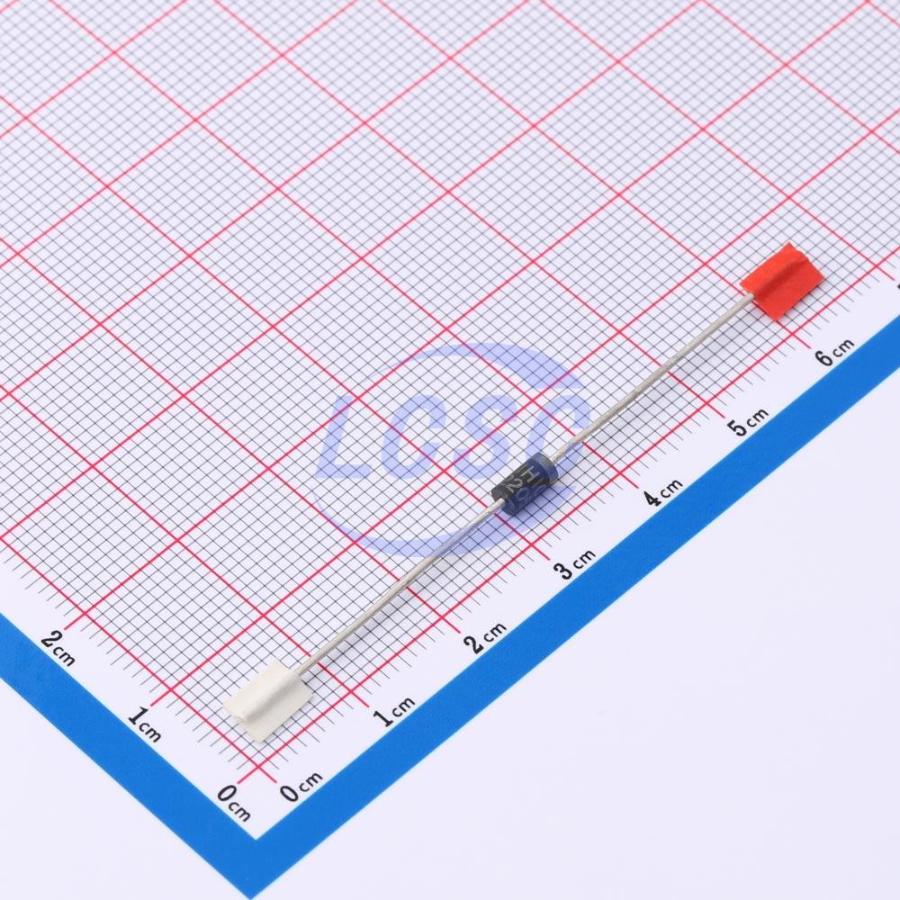

SB1H100-E3/54
Diode 1 Independent 100V 1A Through Hole DO-204AL
DO-204ALROHS3 CompliantActive
DIODE SCHOTTKY 100V DO-204AL
- Manufacturer
- VISHAY
- Manufacturer part #
- SB1H100-E3/54
- Store part #
- C467586
- Package / case
- DO-204AL
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,200 in stock
#C467586
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.19 | ₹80.95 |
| 50+ | ₹14.29 | ₹714.50 |
| 150+ | ₹13.47 | ₹2,020.50 |
| 500+ | ₹12.44 | ₹6,220.00 |
| 2,500+ | ₹11.44 | ₹28,600.00 |
| 5,500+ | ₹11.17 | ₹61,435.00 |
5 × ₹16.19
₹80.95
excl. GST
₹95.52 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,500 per reel
SB1H100-E3/54
₹80.95 for 5 + GST
Specifications
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 770mV@1A
- Reverse Leakage Current (Ir)
- 1uA@100V
- Non-Repetitive Peak Forward Surge Current
- 50A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.33 g
Overview
Applications
- For use in middle voltage high frequency inverters, freewheeling, DC/DC converters, and polarity protection applications.
Key features
- High barrier technology for improved high T_J
- Guardring for overvoltage protection
- Low power losses and high efficiency
- Low forward voltage drop
- Very low leakage current
- High forward surge capability
- High frequency operation
- Solder dip 275℃ max. 10s, per JESD 22 - B106
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SB1H100-E3/73#C145309VISHAY · DO-41 | VISHAY | DO-41 | 3,095 | ₹22.87 · 3,095 in stock | View |
 | STPS2H100#C2970310ST · DO-41 | ST | DO-41 | 120 | ₹19.58 · 120 in stock | View |
 | MBR1100RLG#C110906onsemi · DO-41 | onsemi | DO-41 | 5,620 | ₹22.35 · 5,620 in stock | View |
 | SR2010-TP#C151792MCC · DO-41 | MCC | DO-41 | 270 | ₹15.58 · 270 in stock | View |
 | SB1100#C2875429LRC · DO-41 | LRC | DO-41 | 3,140 | ₹17.40 · 3,140 in stock | View |
