HXY MOSFETDatasheet (PDF)

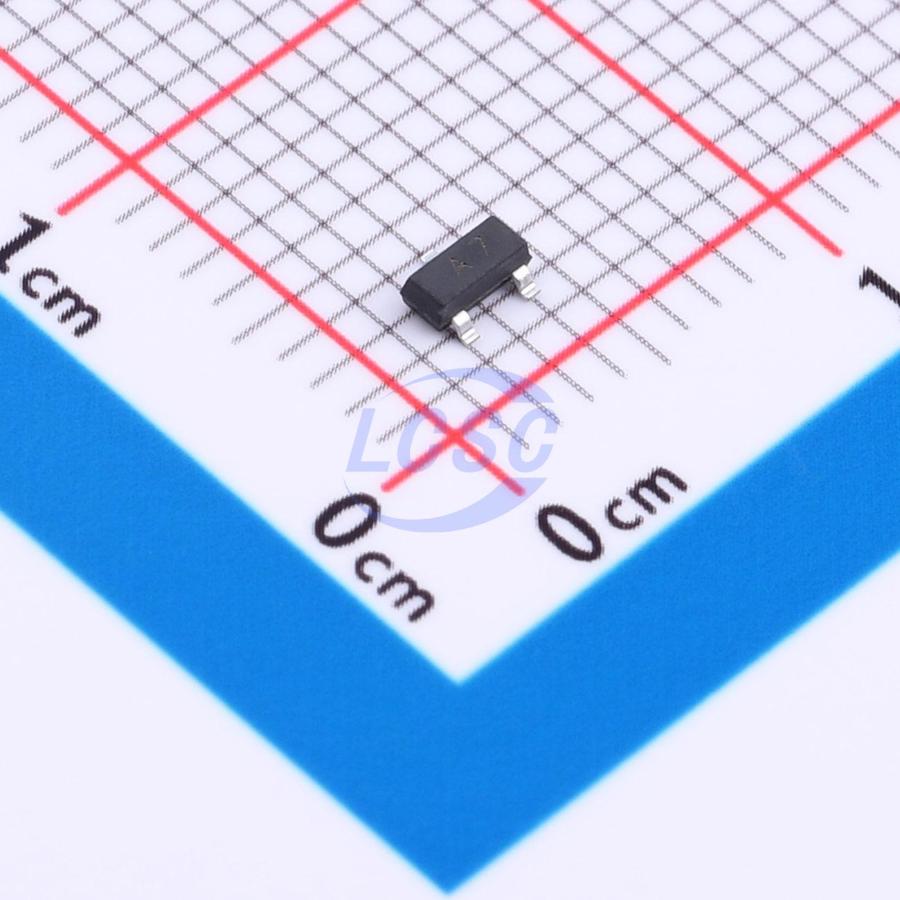

SBAS70-04LT1G-HXY
6ns 1 Pair Series Connection 70V 1.25V@150mA 200mA SOT-23 Single Diodes
SOT-23RoHSActive
- Manufacturer
- HXY MOSFET
- Manufacturer part #
- SBAS70-04LT1G-HXY
- Store part #
- C52754623
- Package / case
- SOT-23
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
150 in stock
#C52754623
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.52 | ₹55.20 |
| 100+ | ₹4.45 | ₹445.00 |
| 300+ | ₹3.90 | ₹1,170.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.19 | ₹19,140.00 |
| 9,000+ | ₹3.02 | ₹27,180.00 |
10 × ₹5.52
₹55.20
excl. GST
₹65.14 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBAS70-04LT1G-HXY
₹55.20 for 10 + GST
Specifications
- Reverse Recovery Time (trr)
- 6ns
- Diode Configuration
- 1 Pair Series Connection
- Voltage - DC Reverse (Vr) (Max)
- 70V
- Pd - Power Dissipation
- 225mW
- Voltage - Forward(Vf@If)
- 1.25V@150mA
- Reverse Leakage Current (Ir)
- 2.5uA@70V
- Non-Repetitive Peak Forward Surge Current
- 2A
- Current - Rectified
- 200mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Key features
- Forward current: I_F = 200 mA
- Power dissipation: 225 mW
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | BAV99#C5184418HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 8,520 | ₹1.35 · 8,520 in stock | View |
 | BAS70-04FILM-HXY#C52754622HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 3,060 | ₹5.12 · 3,060 in stock | View |
 | BAS70-04-G3-08-HXY#C52754635HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | On request | ₹11.85 · 0 in stock | View |
 | BAS21S#C5184399HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 16,560 | ₹2.59 · 16,560 in stock | View |
 | BAV199#C5184419HXY MOSFET · SOT-23 | HXY MOSFET | SOT-23 | 50,240 | ₹1.85 · 50,240 in stock | View |
