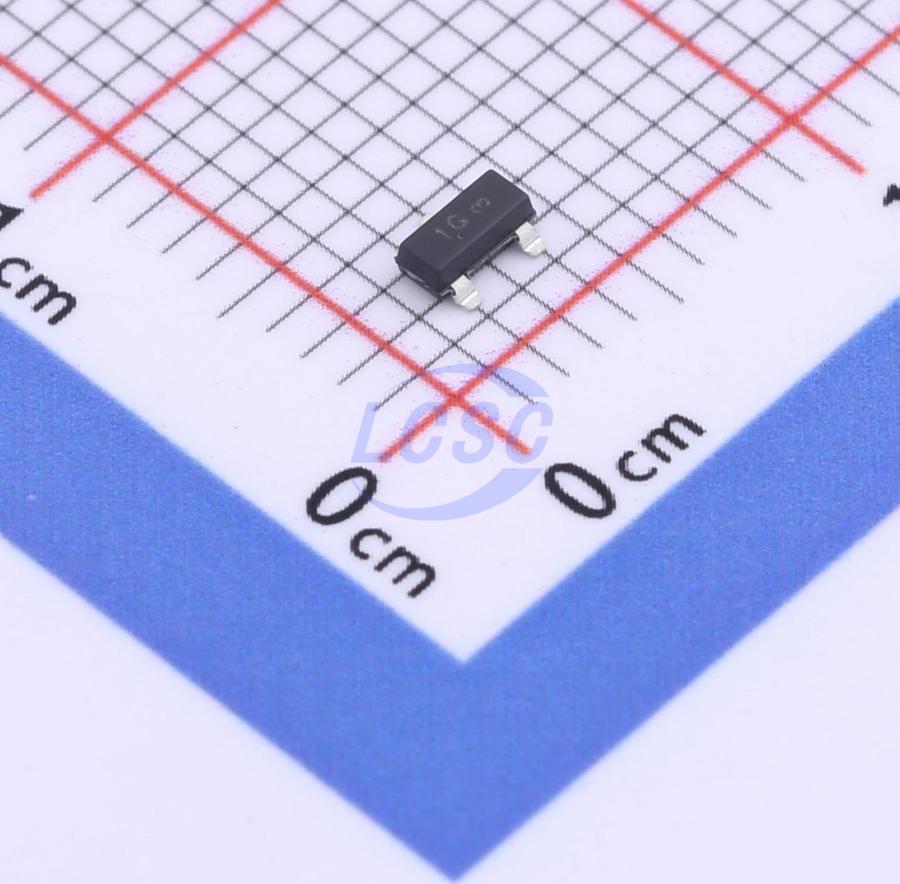

SBC847CLT1G
Bipolar (BJT) Transistor NPN 45V 100mA 100MHz 225mW Surface Mount SOT-23
SOT-23ROHS3 CompliantActive
TRANS NPN 45V 100mA SOT-23
- Manufacturer
- onsemi
- Manufacturer part #
- SBC847CLT1G
- Store part #
- C894280
- Package / case
- SOT-23
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
325 in stock
#C894280
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.82 | ₹129.10 |
| 50+ | ₹25.19 | ₹1,259.50 |
| 150+ | ₹24.77 | ₹3,715.50 |
| 500+ | ₹24.34 | ₹12,170.00 |
5 × ₹25.82
₹129.10
excl. GST
₹152.34 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBC847CLT1G
₹129.10 for 5 + GST
Specifications
- Operating Temperature
- -55℃~+150℃
- Current - Collector Cutoff
- 5uA
- Transition frequency(fT)
- 100MHz
- Collector - Emitter Voltage VCEO
- 45V
- Emitter-Base Voltage VEBO
- 6V
- DC Current Gain
- 150
- Pd - Power Dissipation
- 225mW
- Current - Collector(Ic)
- 100mA
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 250mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.031 g
Overview
Key features
- Moisture Sensitivity Level: 1
- ESD Rating − Human Body Model: >4000 V − Machine Model: >400 V
- S and NSV Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb −Free, Halogen Free/BFR Free and are RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LBC847CLT1G#C12749LRC · SOT-23 | LRC | SOT-23 | 1,44,750 | ₹3.12 · 1,44,750 in stock | View |
 | BC847B#C713602LGE · SOT-23 | LGE | SOT-23 | 2,950 | ₹2.51 · 2,950 in stock | View |
 | BC846B#C713677LGE · SOT-23 | LGE | SOT-23 | 6,550 | ₹2.38 · 6,550 in stock | View |
 | BC847A,215-JSM#C53114028JSMSEMI · SOT-23 | JSMSEMI | SOT-23 | 2,900 | ₹1.35 · 2,900 in stock | View |
 | BC847 1E(RANGE:110-220)#C8574JSCJ · SOT-23 | JSCJ | SOT-23 | 9,100 | ₹3.02 · 9,100 in stock | View |
