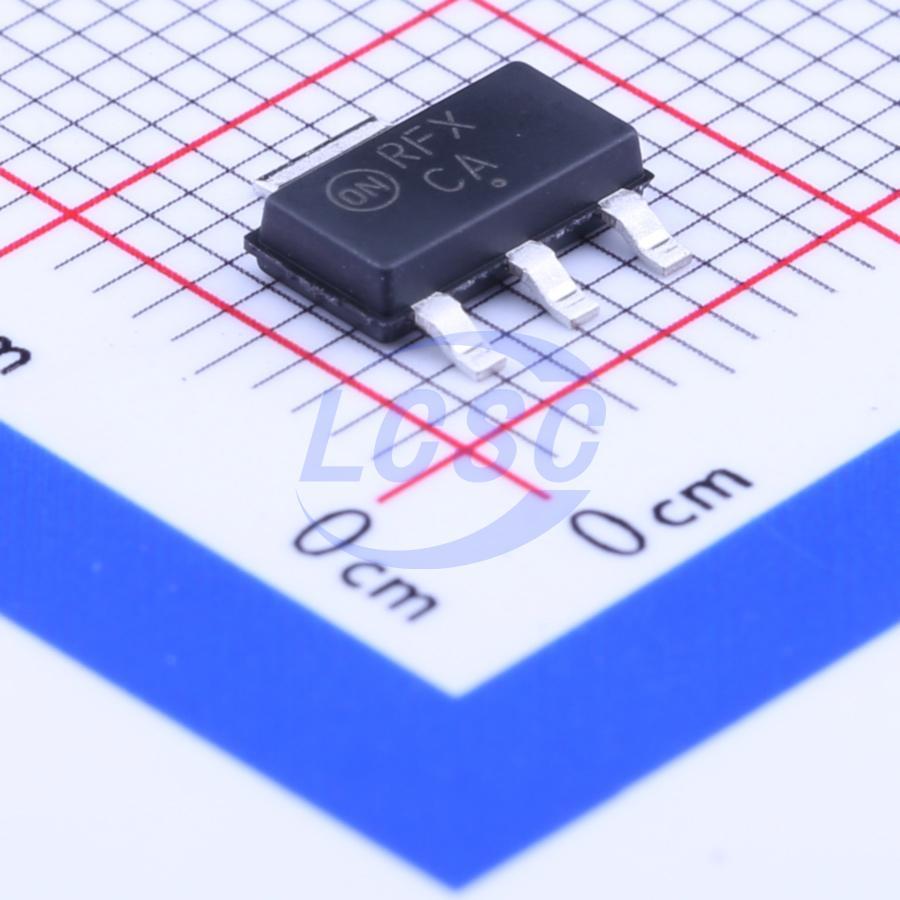

SBCP68T1G
Bipolar (BJT) Transistor NPN 20V 1A 60MHz 1.5W Surface Mount SOT-223
SOT-223ROHS3 CompliantDiscontinued
TRANS NPN 20V 1A SOT-223
- Manufacturer
- onsemi
- Manufacturer part #
- SBCP68T1G
- Store part #
- C116442
- Package / case
- SOT-223
- Category
- Single Bipolar Transistors
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
55 in stock
#C116442
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹94.40 | ₹94.40 |
| 10+ | ₹92.39 | ₹923.90 |
| 30+ | ₹90.98 | ₹2,729.40 |
| 100+ | ₹89.58 | ₹8,958.00 |
1 × ₹94.40
₹94.40
excl. GST
₹111.39 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 1,000 per reel
SBCP68T1G
₹94.40 for 1 + GST
Specifications
- Operating Temperature
- -65℃~+150℃
- Current - Collector Cutoff
- 10uA
- Transition frequency(fT)
- 60MHz
- Collector - Emitter Voltage VCEO
- 20V
- Emitter-Base Voltage VEBO
- 5V
- DC Current Gain
- 50
- Pd - Power Dissipation
- 1.5W
- Current - Collector(Ic)
- 1A
- Number
- 1 NPN
- type
- NPN
- Vce Saturation(VCE(sat))
- 500mV
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Discontinued
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 1,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.202 g
Overview
This NPN Silicon Epitaxial Transistor is designed for use in low voltage, high current applications. The device is housed in the SOT−223 package, which is designed for medium power surface mount applications.
Key features
- High Current
- The SOT−223 Package Can Be Soldered Using Wave or Reflow
- SOT−223 package ensures level mounting, resulting in improved thermal conduction, and allows visual inspection of soldered joints. The formed leads absorb thermal stress during soldering, eliminating the possibility of damage to the die
- The PNP Complement is BCP69T1
- S Prefix for Automotive and Other Applications Requiring Unique Site and Control Change Requirements; AEC−Q101 Qualified and PPAP Capable
- These Devices are Pb−Free, Halogen Free/BFR Free and are RoHS Compliant
