JSCJDatasheet (PDF)

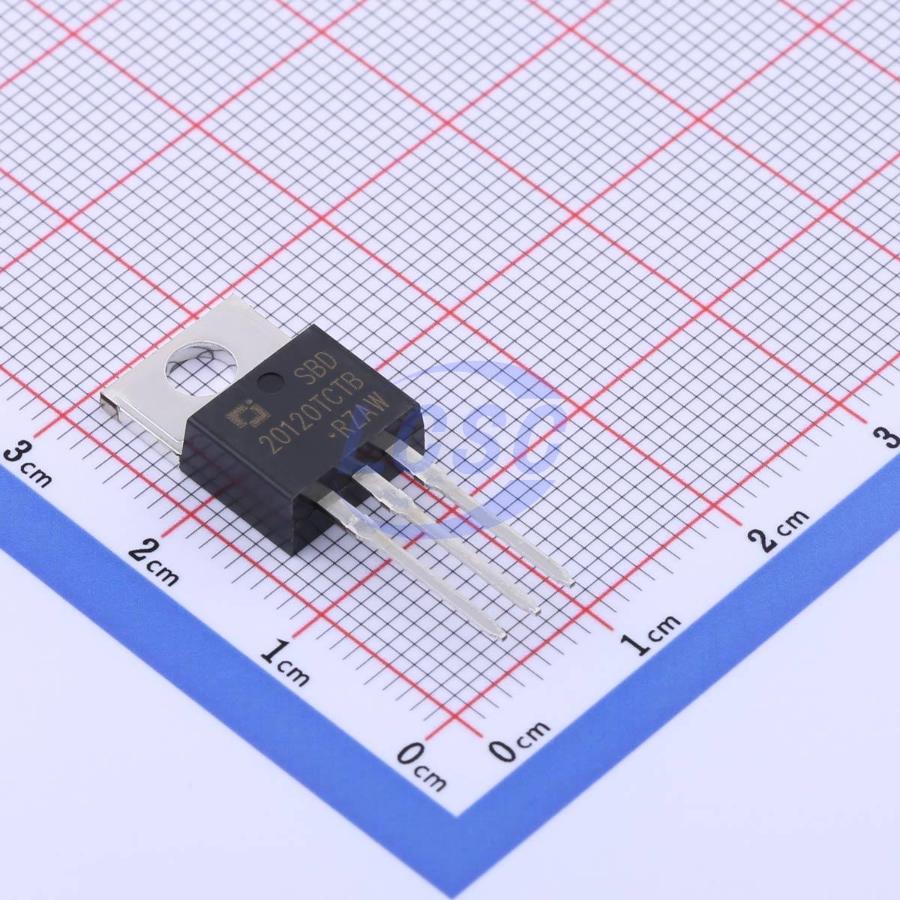

SBD20120TCTB
Diode Array 1 Pair Common Cathode 120V 20A Through Hole TO-220-3L
TO-220-3LROHS CompliantActive
DIODE ARR SCHOTTKY 120V TO-220-3L
- Manufacturer
- JSCJ
- Manufacturer part #
- SBD20120TCTB
- Store part #
- C2924051
- Package / case
- TO-220-3L
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
960 in stock
#C2924051
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹59.84 | ₹59.84 |
| 10+ | ₹47.31 | ₹473.10 |
| 50+ | ₹41.91 | ₹2,095.50 |
| 100+ | ₹35.22 | ₹3,522.00 |
| 500+ | ₹32.40 | ₹16,200.00 |
| 1,000+ | ₹30.46 | ₹30,460.00 |
1 × ₹59.84
₹59.84
excl. GST
₹70.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SBD20120TCTB
₹59.84 for 1 + GST
Specifications
- Voltage - DC Reverse (Vr) (Max)
- 120V
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - Forward(Vf@If)
- 780mV@10A
- Reverse Leakage Current (Ir)
- 1uA@120V
- Non-Repetitive Peak Forward Surge Current
- 150A
- Current - Rectified
- 20A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.8 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBD30120SCTB#C2924057JSCJ · TO-220-3L | JSCJ | TO-220-3L | 97 | ₹73.72 · 97 in stock | View |
 | SBD20H150CTB#C2924052JSCJ · TO-220-3L | JSCJ | TO-220-3L | 5 | ₹58.93 · 5 in stock | View |
 | SBD30130SCTB#C5295505JSCJ · TO-220-3L | JSCJ | TO-220-3L | 95 | ₹80.77 · 95 in stock | View |
 | SBD40120TCTB#C2924063JSCJ · TO-220-3L | JSCJ | TO-220-3L | 101 | ₹99.09 · 101 in stock | View |
 | SBD40H150CTB#C5295509JSCJ · TO-220-3L | JSCJ | TO-220-3L | 115 | ₹73.45 · 115 in stock | View |
