DIODESDatasheet (PDF)

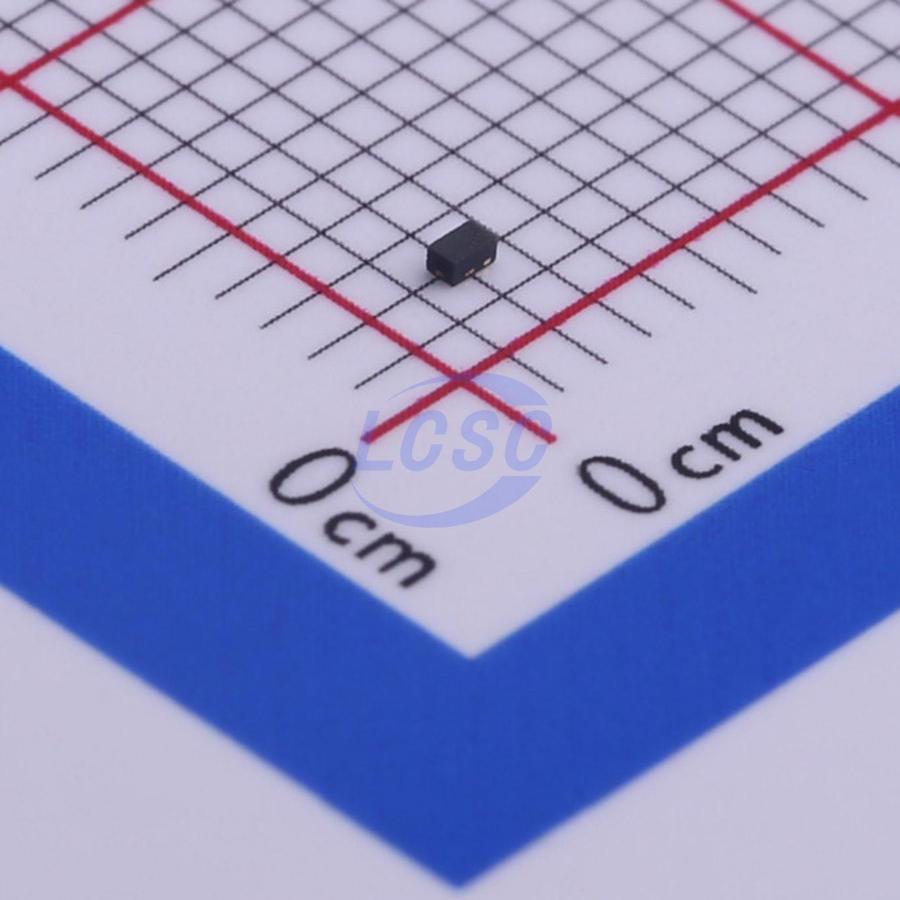

SBR02U100LP-7
100V 1 Independent 760mV@200mA 250mA DFN-2(0.6x1) Single Diodes RoHS
DFN-2(0.6x1)ROHS3 CompliantActive
Voltage： 100V Current： 250mA
- Manufacturer
- DIODES
- Manufacturer part #
- SBR02U100LP-7
- Store part #
- C445503
- Package / case
- DFN-2(0.6x1)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
Out of stock
#C445503
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹71.93 | ₹71.93 |
| 10+ | ₹59.76 | ₹597.60 |
| 30+ | ₹54.55 | ₹1,636.50 |
| 100+ | ₹48.25 | ₹4,825.00 |
| 500+ | ₹45.21 | ₹22,605.00 |
| 1,000+ | ₹43.46 | ₹43,460.00 |
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 760mV@200mA
- Reverse Leakage Current (Ir)
- 40nA@75V
- Non-Repetitive Peak Forward Surge Current
- 5A
- Current - Rectified
- 250mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.009 g
Overview
Key features
- Ultra-low forward voltage drop
- Excellent reverse avalanche capability
- Patented Super Barrier Rectifier technology (SBR)
- Soft, fast switching capability
- Operating junction temperature up to +150℃
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- This product meets JEDEC standards (as referenced in AEC-Q) with high reliability
- Automotive-grade version available, separate datasheet: (SBR02U100LPQ)
- Package: X1-DFN1006-2
- Package material: Molded plastic, "Green" molding compound, UL flammability classification rating 94V-0
- Moisture sensitivity: Level 1 per J-STD-020
- Terminal connection: Cathode bar
- Terminal: Surface finish — Nickel-palladium-gold plating on copper leadframe, solderable per MIL-STD-202 Method 208 under Condition 4
- Weight: Approximately 0.001 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
| SBR02U100LPQ-7#C6215186DIODES · X1-DFN1006-2 | DIODES | X1-DFN1006-2 | On request | ₹44.76 · 0 in stock | View | |
