DIODESDatasheet (PDF)

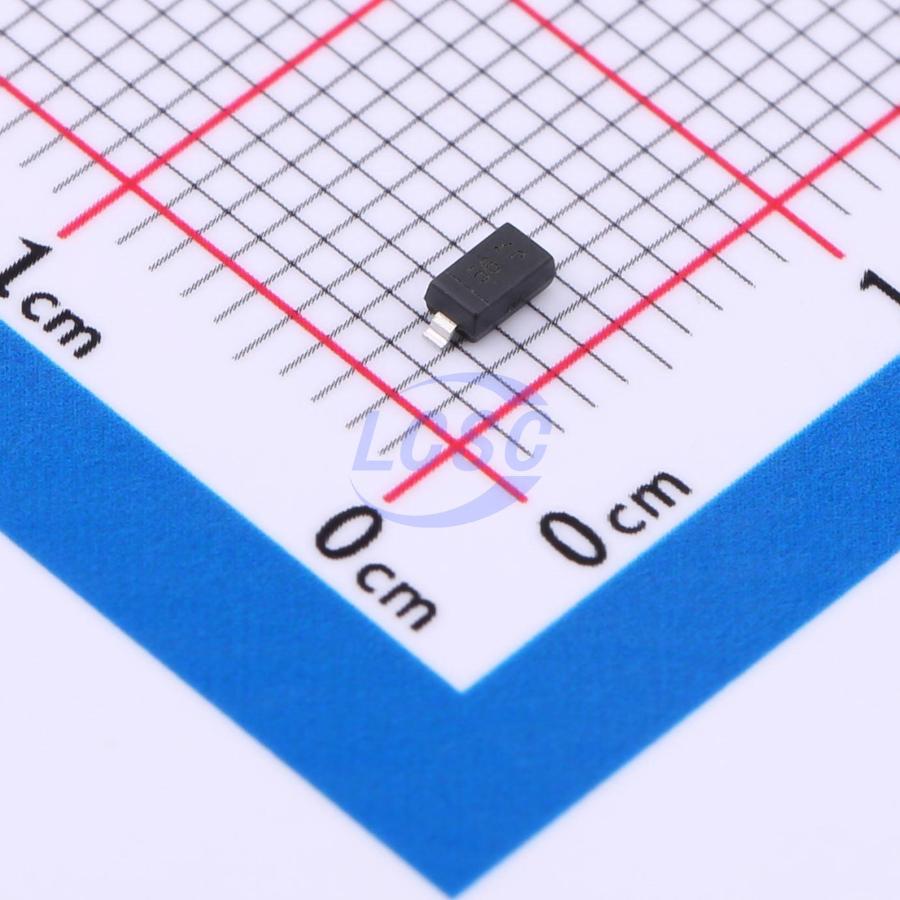

SBR0560S1Q-7
8ns 1 Independent 60V 500mV@500mA 500mA SOD-123 Single Diodes RoHS
SOD-123ROHS3 CompliantActive
Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBR0560S1Q-7
- Store part #
- C672200
- Package / case
- SOD-123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
210 in stock
#C672200
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹43.37 | ₹216.85 |
| 50+ | ₹33.62 | ₹1,681.00 |
| 150+ | ₹29.45 | ₹4,417.50 |
| 500+ | ₹24.24 | ₹12,120.00 |
| 3,000+ | ₹21.91 | ₹65,730.00 |
| 6,000+ | ₹20.52 | ₹1,23,120.00 |
5 × ₹43.37
₹216.85
excl. GST
₹255.88 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR0560S1Q-7
₹216.85 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 8ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Voltage - Forward(Vf@If)
- 500mV@500mA
- Reverse Leakage Current (Ir)
- 100uA@60V
- Non-Repetitive Peak Forward Surge Current
- 15A
- Current - Rectified
- 500mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.032 g
Overview
Applications
- Switching power supplies
- DC-DC converters
- Freewheeling diodes
- Reverse polarity protection
Key features
- Low forward voltage drop
- Low reverse leakage
- Excellent high-temperature stability
- Patented Super Barrier Rectifier (SBR) technology
- Soft, fast switching capability
- Operating junction temperature up to +150°C
- Fully lead-free and fully RoHS compliant
- Halogen- and antimony-free, "Green" device
- SBR0560S1Q is suited for automotive applications requiring specific change control; the product is AEC-Q101 qualified, PPAP capable, and manufactured in an IATF16949-certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR2U60S1F-7#C156309DIODES · SOD-123F | DIODES | SOD-123F | 15 | ₹68.68 · 15 in stock | View |
 | SBR2U60S1FQ-7#C460251DIODES · SOD-123F | DIODES | SOD-123F | 104 | ₹74.29 · 104 in stock | View |
 | SBR2M60S1F-7#C151019DIODES · SOD-123F | DIODES | SOD-123F | 10 | ₹26.18 · 10 in stock | View |
 | DSK26H#C2939732Leiditech · SOD-123FL | Leiditech | SOD-123FL | 2,510 | ₹14.26 · 2,510 in stock | View |
 | SBR2M60S1F#C5144835Leiditech · SOD-123FL | Leiditech | SOD-123FL | 2,910 | ₹13.32 · 2,910 in stock | View |
