DIODESDatasheet (PDF)

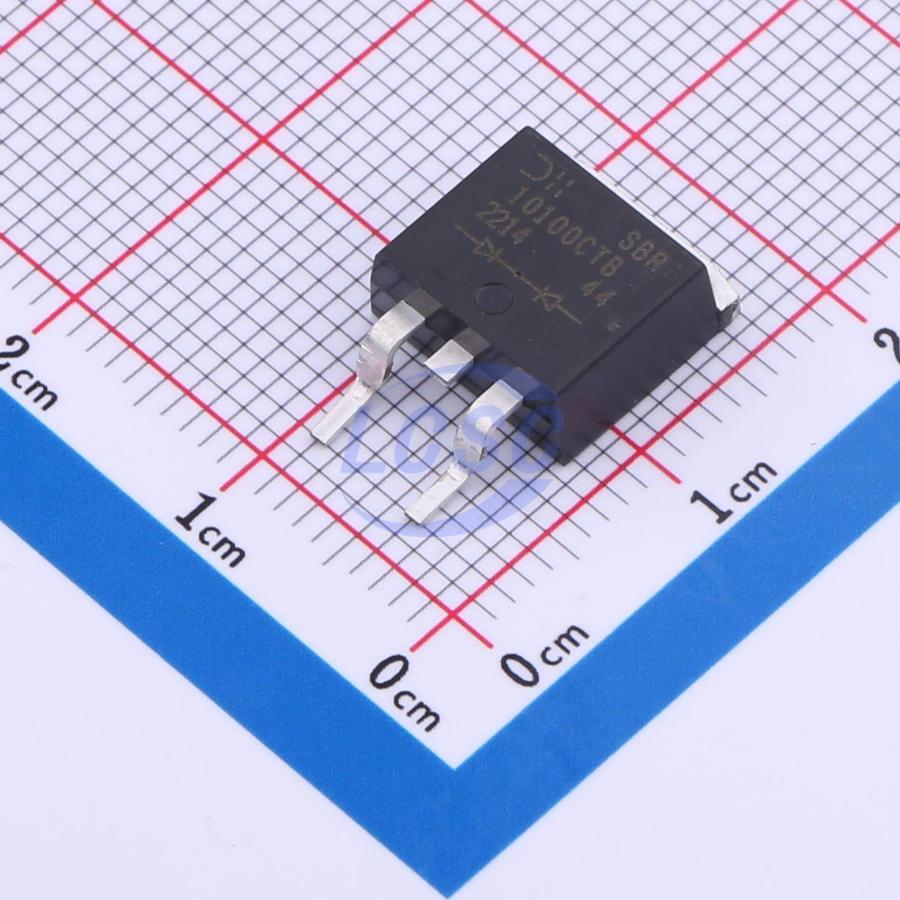

SBR10100CTB
1 Pair Common Cathode 100V 840mV@5A 5A TO-263AB(D2PAK) Single Diodes RoHS
TO-263AB(D2PAK)ROHS CompliantSold out at source
SUPER BARRIER RECTIFIER
- Manufacturer
- DIODES
- Manufacturer part #
- SBR10100CTB
- Store part #
- C5124983
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
24 in stock
#C5124983
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹100.38 | ₹100.38 |
| 10+ | ₹85.56 | ₹855.60 |
| 50+ | ₹78.03 | ₹3,901.50 |
| 100+ | ₹70.73 | ₹7,073.00 |
| 500+ | ₹66.20 | ₹33,100.00 |
| 1,000+ | ₹63.85 | ₹63,850.00 |
1 × ₹100.38
₹100.38
excl. GST
₹118.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SBR10100CTB
₹100.38 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 840mV@5A
- Reverse Leakage Current (Ir)
- 200uA@100V
- Non-Repetitive Peak Forward Surge Current
- 80A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 2.16 g
Overview
The SBR10100CTB provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC - DC Converters, AC - DC Adaptors.
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR10100CTB-13#C177064DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 84 | ₹102.53 · 84 in stock | View |
| SBR10200CTB-13-G#C4360684DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 42 | ₹86.13 · 42 in stock | View | |
 | SBR20A300CTB#C672278DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 2 | ₹273.00 · 2 in stock | View |
 | SBR20A200CTB#C2942357DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 6 | ₹175.73 · 6 in stock | View |
| SBR40U200CTBQ-13#C5456106DIODES · D2PAK | DIODES | D2PAK | On request | ₹334.57 · 0 in stock | View | |
