DIODESDatasheet (PDF)

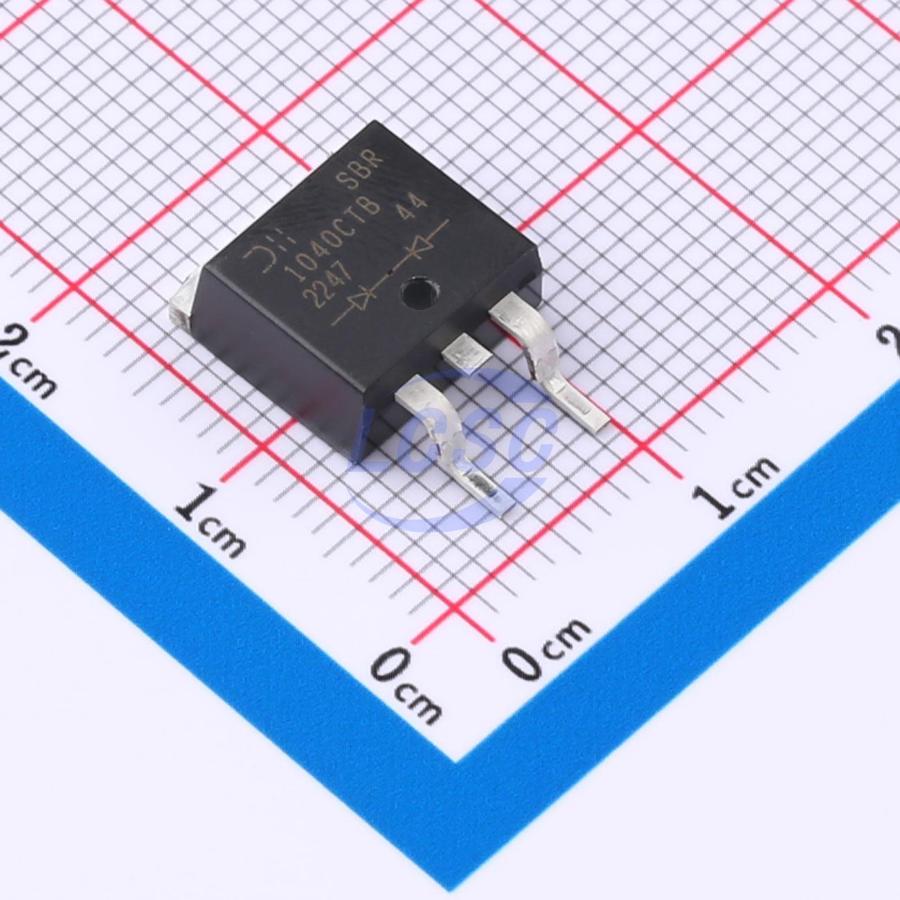

SBR1040CTB
1 Pair Common Cathode 40V 600mV@5A 5A TO-263AB(D2PAK) Single Diodes RoHS
TO-263AB(D2PAK)ROHS CompliantSold out at source
Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBR1040CTB
- Store part #
- C5249195
- Package / case
- TO-263AB(D2PAK)
- Category
- Single Diodes
- Packaging
- Tube-packed
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C5249195
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹67.71 | ₹67.71 |
| 10+ | ₹66.64 | ₹666.40 |
| 30+ | ₹65.99 | ₹1,979.70 |
| 100+ | ₹65.13 | ₹6,513.00 |
1 × ₹67.71
₹67.71
excl. GST
₹79.90 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 50 per tube
SBR1040CTB
₹67.71 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Diode Configuration
- 1 Pair Common Cathode
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 600mV@5A
- Reverse Leakage Current (Ir)
- 500uA
- Non-Repetitive Peak Forward Surge Current
- 85A
- Current - Rectified
- 5A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Sold out at source
- ECCN
- EAR99
- Packaging
- Tube-packed
- Standard pack
- 50 / Tube
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1.4 g
Overview
Key features
- Excellent High Temperature Stability
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- Lead Free Finish, RoHS Compliant
- Also Available in Green Molding Compound
- Case Material: Molded Plastic, UL Flammability Classification Rating 94V - 0
- Moisture Sensitivity: Level 1 per J - STD - 020
- Terminals: Matte Tin Finish annealed over Copper leadframe. Solderable per MIL - STD - 202, Method 208
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR30A60CTB-13#C144159DIODES · TO-263-2 | DIODES | TO-263-2 | 2 | ₹132.54 · 2 in stock | View |
 | SBR20A60CTB#C4360681DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 1 | ₹195.78 · 1 in stock | View |
 | SBR30A45CTBQ-13#C460749DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 579 | ₹158.63 · 579 in stock | View |
 | FERD20L60CG-TR#C5268219ST · D2PAK | ST | D2PAK | 100 | ₹284.15 · 100 in stock | View |
 | SBR10100CTB-13#C177064DIODES · TO-263AB(D2PAK) | DIODES | TO-263AB(D2PAK) | 84 | ₹102.53 · 84 in stock | View |
