DIODESDatasheet (PDF)

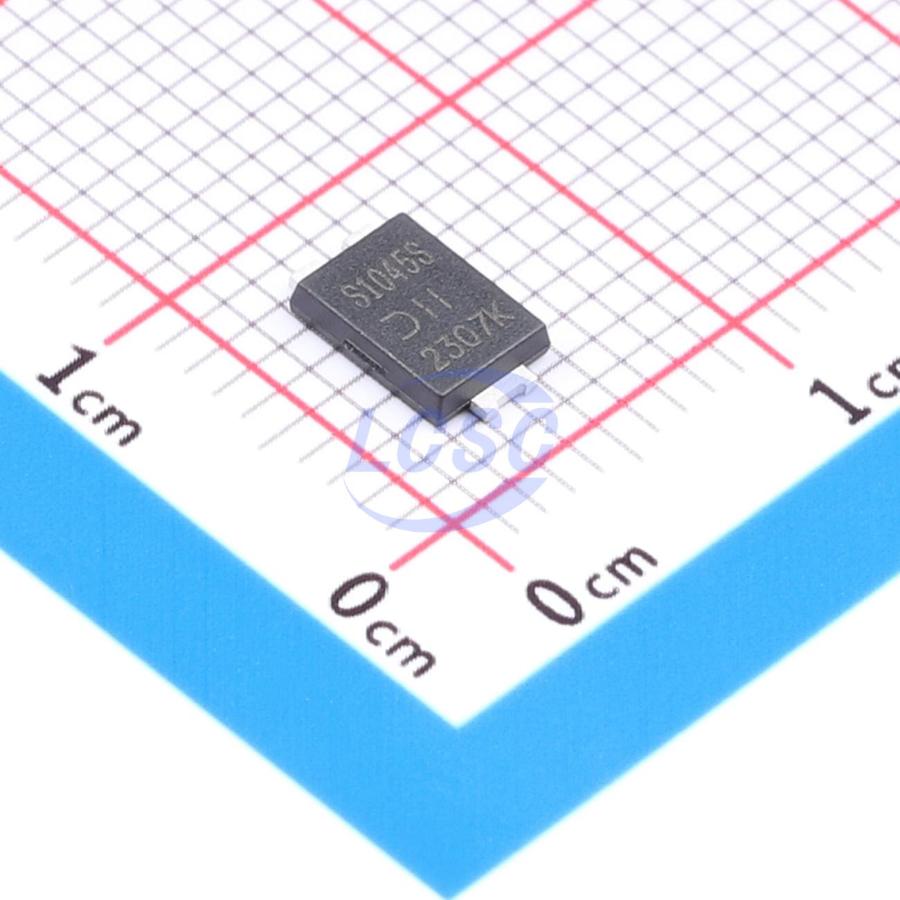

SBR1045SP5Q-13
23ns 1 Independent 45V 490mV@10A 10A Power-DI-5-3 Single Diodes RoHS
Power-DI-5-3ROHS3 CompliantActive
Voltage： 45V Current： 10A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR1045SP5Q-13
- Store part #
- C575592
- Package / case
- Power-DI-5-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
51 in stock
#C575592
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹53.77 | ₹53.77 |
| 10+ | ₹52.71 | ₹527.10 |
| 30+ | ₹51.86 | ₹1,555.80 |
| 100+ | ₹51.23 | ₹5,123.00 |
1 × ₹53.77
₹53.77
excl. GST
₹63.45 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR1045SP5Q-13
₹53.77 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 23ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 490mV@10A
- Reverse Leakage Current (Ir)
- 450uA
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.2 g
Overview
Applications
- Switching Power Supply (SMPS)
- DC-DC Converter
- Freewheeling Diode
Key features
- Designed for solar panel bypass diodes
- Maximum junction temperature selectively rated at +200℃ for high thermal reliability
- Proprietary Super Barrier Rectifier (SBR) technology
- Low forward voltage drop
- Excellent high-temperature stability
- Lead-free surface finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- SBR1045SP5Q is suitable for automotive applications requiring specific change control; AEC-Q101 qualified, PPAP capable, manufactured in IATF16949-certified facility
