DIODESDatasheet (PDF)

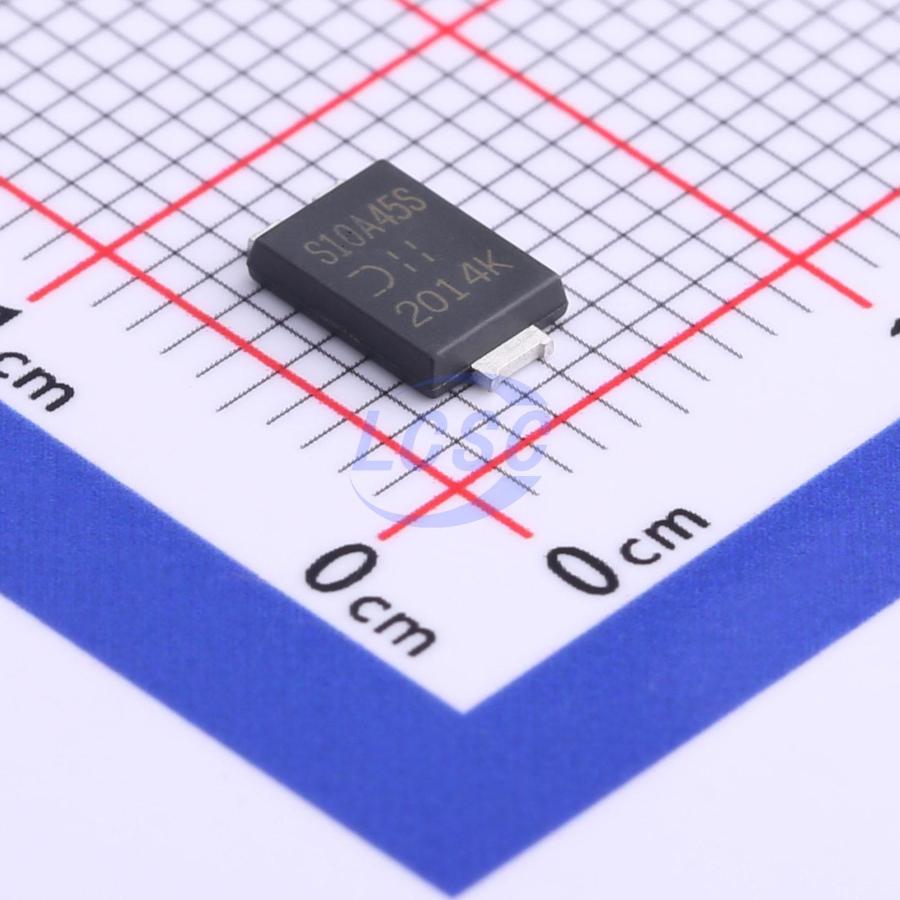

SBR10A45SP5-13
23ns 1 Independent 45V 460mV@10A 10A Power-DI-5 Single Diodes RoHS
Power-DI-5ROHS3 CompliantActive
Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBR10A45SP5-13
- Store part #
- C780892
- Package / case
- Power-DI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15 in stock
#C780892
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹83.88 | ₹83.88 |
| 10+ | ₹82.15 | ₹821.50 |
| 30+ | ₹81.06 | ₹2,431.80 |
| 100+ | ₹79.75 | ₹7,975.00 |
1 × ₹83.88
₹83.88
excl. GST
₹98.98 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR10A45SP5-13
₹83.88 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 23ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 460mV@10A
- Reverse Leakage Current (Ir)
- 400uA@45V
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.17 g
Overview
Applications
- DC/DC converter
- AC/DC adapter
- Bypass diode
Key features
- Designed specifically for solar panel bypass diodes
- Maximum junction temperature selectively rated at +200℃ for high thermal reliability
- Utilizes patented Super Barrier Rectifier (SBR) technology
- Low forward voltage drop
- Excellent high-temperature stability
- Lead-free finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- SBR10A45SP5Q is suitable for automotive applications requiring specific change control; compliant with AEC-Q101, PPAP capable, and manufactured in an IATF 16949 certified facility
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR1045SP5-13#C461834DIODES · Power-DI-5 | DIODES | Power-DI-5 | 12 | ₹38.90 · 12 in stock | View |
 | SBRT20U60SP5-7#C156299DIODES · PowerDI-5 | DIODES | PowerDI-5 | 1,307 | ₹151.58 · 1,307 in stock | View |
| SBRT20U60SP5-13#C4355625DIODES · PowerDI-5 | DIODES | PowerDI-5 | 3 | ₹322.63 · 3 in stock | View | |
 | SBR12U100P5Q-13#C672238DIODES · PowerDI-5 | DIODES | PowerDI-5 | 1 | ₹120.91 · 1 in stock | View |
 | SBRT15U50SP5-13D#C4355627DIODES · Power-DI-5 | DIODES | Power-DI-5 | 2 | ₹135.82 · 2 in stock | View |
