DIODESDatasheet (PDF)

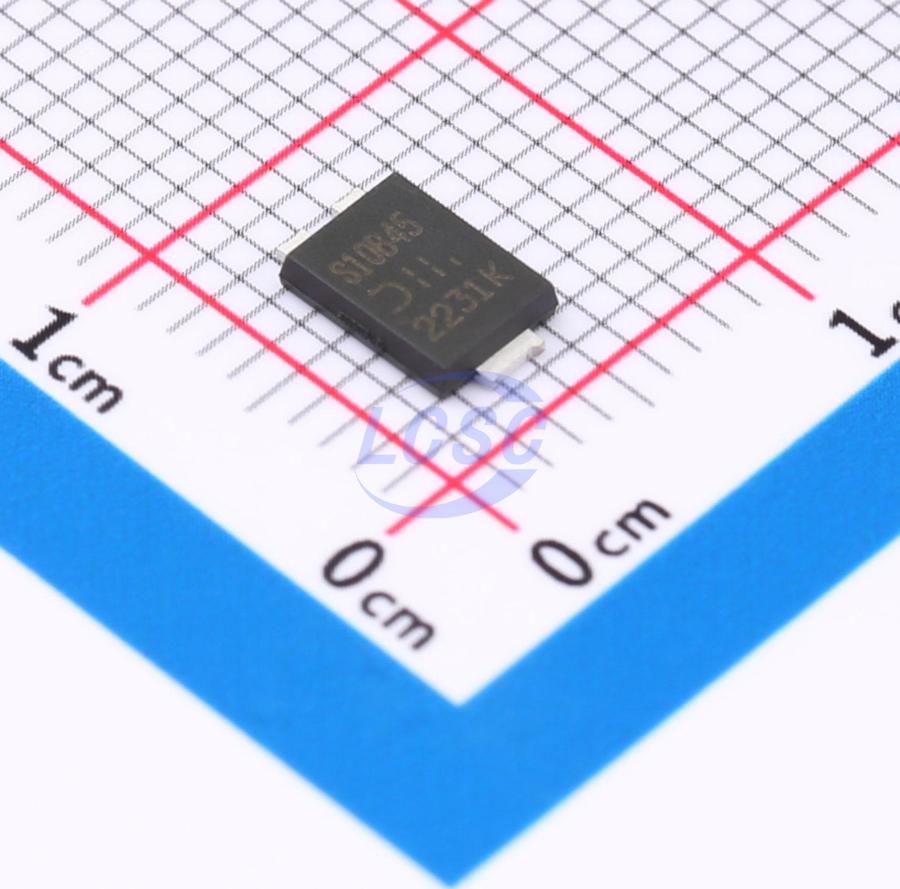

SBR10B45P5-13
45V 550mV@10A 10A PowerDI5 Single Diodes RoHS
PowerDI5ROHS3 CompliantActive
Voltage: 45V Current: 10A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR10B45P5-13
- Store part #
- C6671681
- Package / case
- PowerDI5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
31 in stock
#C6671681
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹55.86 | ₹55.86 |
| 10+ | ₹44.33 | ₹443.30 |
| 30+ | ₹39.56 | ₹1,186.80 |
| 100+ | ₹33.25 | ₹3,325.00 |
| 500+ | ₹30.64 | ₹15,320.00 |
| 1,000+ | ₹28.91 | ₹28,910.00 |
1 × ₹55.86
₹55.86
excl. GST
₹65.91 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR10B45P5-13
₹55.86 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Voltage - Forward(Vf@If)
- 550mV@10A
- Reverse Leakage Current (Ir)
- 380uA@45V
- Current - Rectified
- 10A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.167 g
Overview
Packaged in the compact thermally efficient POWERD B₅ package, the SBR⊕10B45P5 provides ultra-low, forward-voltage drop (Vₓ) and excellent low reverse leakage stability at high temperatures.
Applications
- AC-DC Adaptors/Chargers
- DC-DC Converters
Key features
- Ultra Low Forward Voltage Drop (Vₓ) Helps Minimize Power Losses
- Excellent Reverse Leakage (IR) Stability At Higher Temperatures
- Thermally Efficient Package For Cooler Running Applications
- Less than 1.1mm Package Profile Ideal For Thin Applications
- Lead-Free Finish; RoHS Compliant Halogen and Antimony Free. “Green” Device
