DIODESDatasheet (PDF)

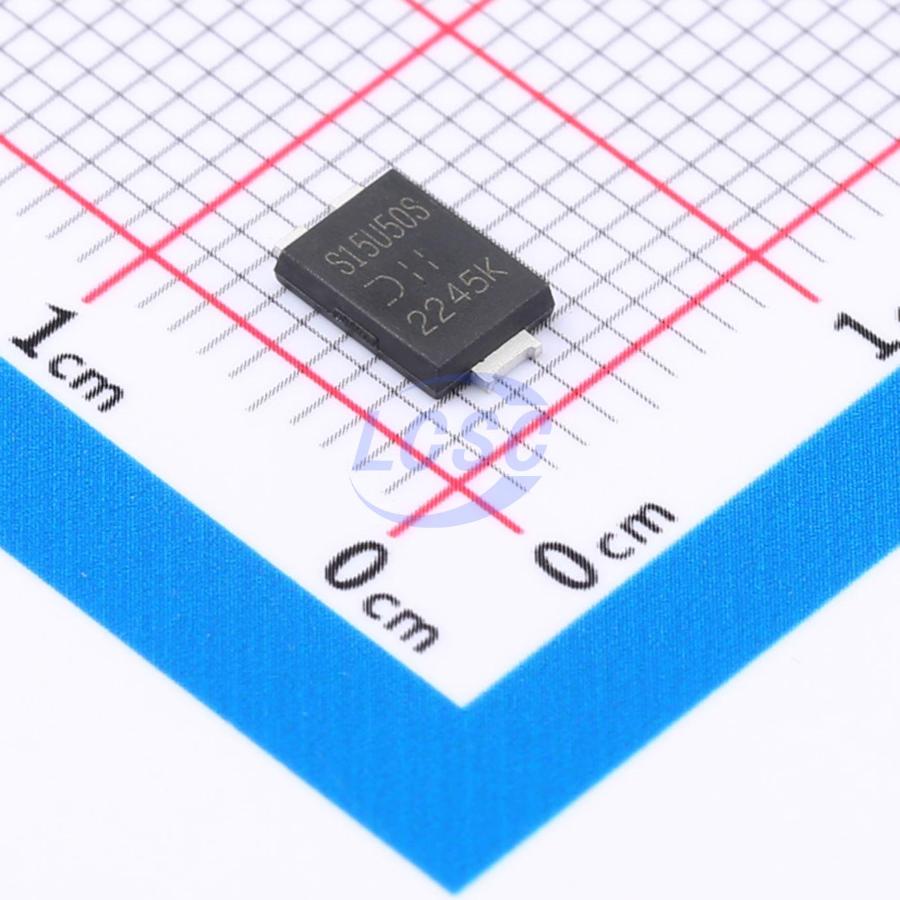

SBR15U50SP5-13
50ns Standalone 50V 440mV@15A 15A PowerDI-5 Single Diodes RoHS
PowerDI-5ROHS3 CompliantActive
Voltage： 50V Current： 15A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR15U50SP5-13
- Store part #
- C177072
- Package / case
- PowerDI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C177072
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.50 | ₹76.50 |
| 10+ | ₹61.93 | ₹619.30 |
| 30+ | ₹54.76 | ₹1,642.80 |
| 100+ | ₹47.38 | ₹4,738.00 |
| 500+ | ₹41.08 | ₹20,540.00 |
| 1,000+ | ₹38.90 | ₹38,900.00 |
1 × ₹76.50
₹76.50
excl. GST
₹90.27 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR15U50SP5-13
₹76.50 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 50ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- Standalone
- Voltage - DC Reverse (Vr) (Max)
- 50V
- Voltage - Forward(Vf@If)
- 440mV@15A
- Reverse Leakage Current (Ir)
- 500uA@50V
- Non-Repetitive Peak Forward Surge Current
- 256A
- Current - Rectified
- 15A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.15 g
Overview
SBR15U50SP5 features a compact, thermally efficient PowerDI5 package, offering ultra-low forward voltage VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheeling, or polarity protection diode.
Applications
- DC/DC converter
- AC/DC adapter
Key features
- Low forward voltage drop (VF) for reduced power dissipation
- Excellent stability at elevated temperatures
- Thermally efficient package for low-temperature operation applications
- Package height below 1.1mm, ideal for slim-profile applications
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free "Green" device
- Automotive-grade version available (SBR15U50SP5Q), refer to separate datasheet for details
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBRT15U100SP5-13#C2934601DIODES · PowerDI-5 | DIODES | PowerDI-5 | On request | ₹85.58 · 0 in stock | View |
