DIODESDatasheet (PDF)

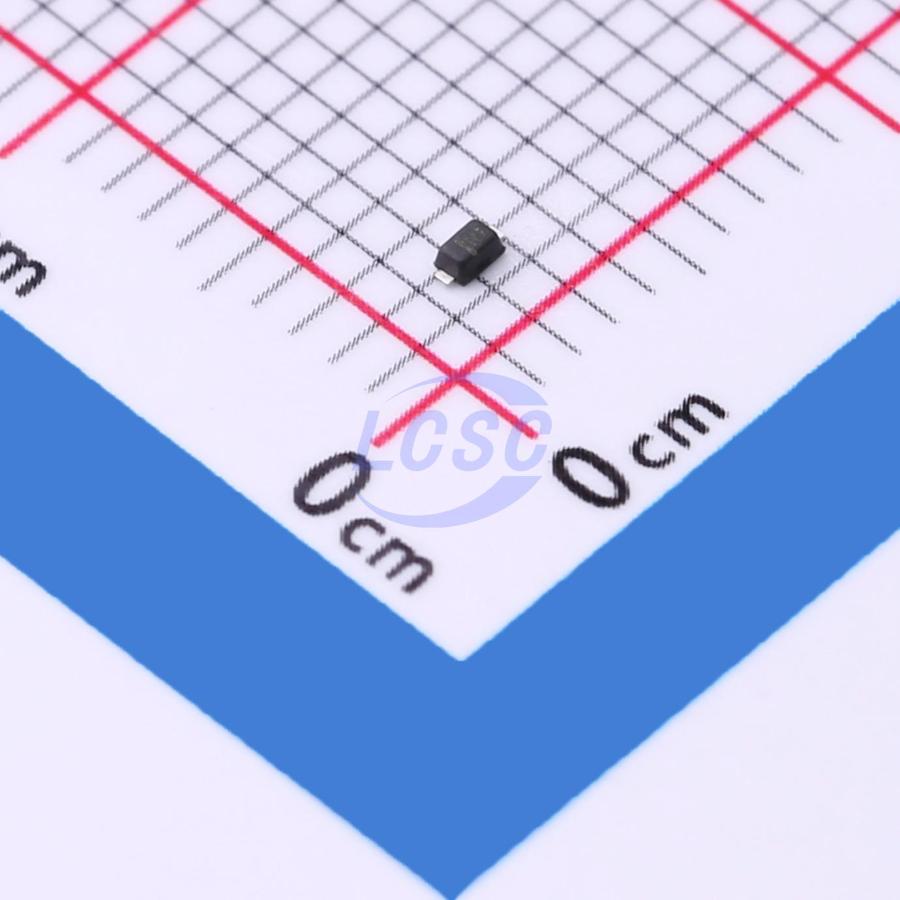

SBR1A20T5-7
15ns 1 Independent 20V 520mV@1A 1A SC-79 Single Diodes RoHS
SC-79ROHS3 CompliantActive
SUPER BARRIER RECTIFIER
- Manufacturer
- DIODES
- Manufacturer part #
- SBR1A20T5-7
- Store part #
- C5157758
- Package / case
- SC-79
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,325 in stock
#C5157758
Stock & price checked 11 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹40.36 | ₹201.80 |
| 50+ | ₹32.02 | ₹1,601.00 |
| 150+ | ₹28.43 | ₹4,264.50 |
| 500+ | ₹23.97 | ₹11,985.00 |
| 3,000+ | ₹21.99 | ₹65,970.00 |
| 6,000+ | ₹20.80 | ₹1,24,800.00 |
5 × ₹40.36
₹201.80
excl. GST
₹238.12 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR1A20T5-7
₹201.80 for 5 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 20V
- Voltage - Forward(Vf@If)
- 520mV@1A
- Reverse Leakage Current (Ir)
- 200uA@20V
- Non-Repetitive Peak Forward Surge Current
- 10A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
Packaged in the compact SOD523 package, the SBR1A20T5 provides very low VF and excellent reverse leakage stability at high temperatures. It is ideal for use as a rectifier, freewheel diode or blocking diode in DC/DC Converters, AC/DC Adaptors
Applications
- DC/DC Converters
- AC/DC Adaptors
Key features
- Patented SBR Technology Provides Superior Avalanche Capability Versus Schottky Diodes, Ensuring More Rugged and Reliable End Applications
- Reduced Ultra-Low Forward Voltage Drop (VF); Better Efficiency and Cooler Operation
- Reduced High Temperature Reverse Leakage; Increased Reliability Against Thermal Runaway Failure in High Temperature Operation
- Low Profile Package – Ideal for Thin Applications
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR1A30T5-7#C4360674DIODES · SOD-523 | DIODES | SOD-523 | On request | ₹61.69 · 0 in stock | View |
