DIODESDatasheet (PDF)

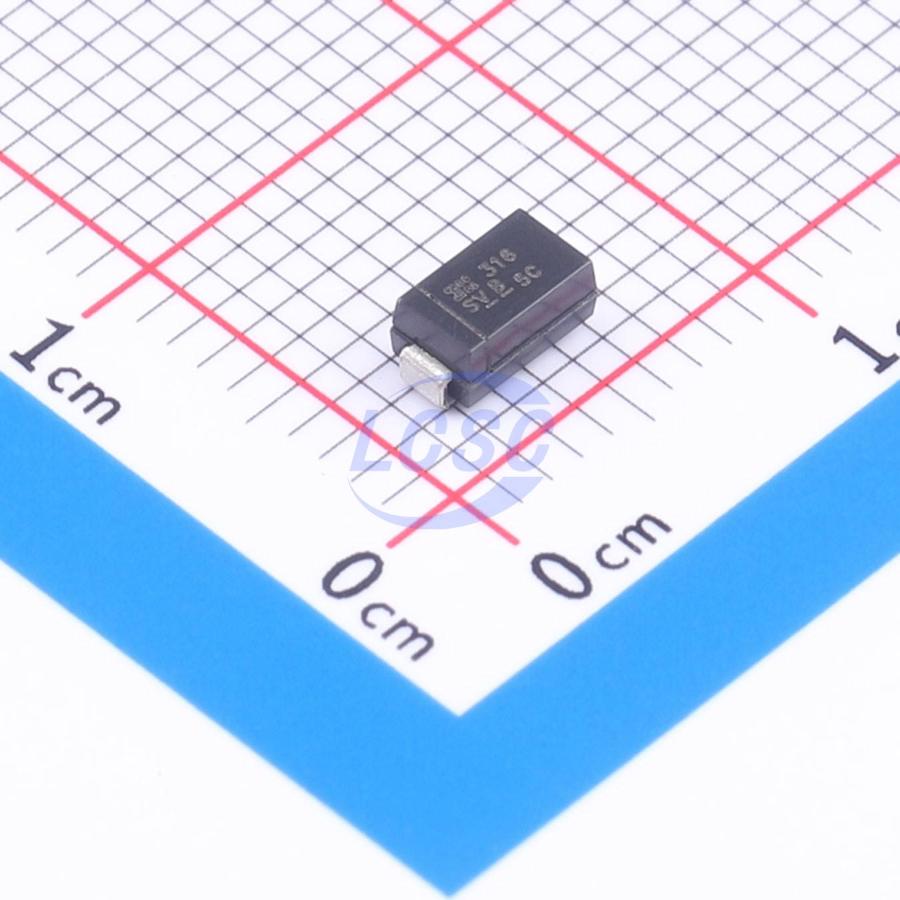

SBR1U150SAQ-13
9ns 150V 1 Independent 700mV@1A 1A SMA(DO-214AC) Single Diodes RoHS
SMA(DO-214AC)ROHS3 CompliantActive
Voltage： 150V Current： 1A
- Manufacturer
- DIODES
- Manufacturer part #
- SBR1U150SAQ-13
- Store part #
- C575537
- Package / case
- SMA(DO-214AC)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12 in stock
#C575537
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹44.04 | ₹44.04 |
| 10+ | ₹43.21 | ₹432.10 |
| 30+ | ₹42.59 | ₹1,277.70 |
| 100+ | ₹41.95 | ₹4,195.00 |
1 × ₹44.04
₹44.04
excl. GST
₹51.97 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR1U150SAQ-13
₹44.04 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 9ns
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 150V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 700mV@1A
- Reverse Leakage Current (Ir)
- 100uA@150V
- Non-Repetitive Peak Forward Surge Current
- 42A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.625 g
Overview
Applications
- Polarity protection diode
- Freewheeling diode
- Blocking diode
- DC - DC
- AC - DC
Key features
- Ultra-low forward voltage drop
- Excellent high-temperature performance
- Patented Super Barrier Rectifier (SBR) technology
- Soft, fast switching capability
- Operating junction temperature up to +150℃
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free, "Green" device
- Component meets JEDEC standards (as referenced in AEC-Q) for high reliability
- An automotive-grade version (SBR1U150SAQ) is available in a separate datasheet
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SBR2U150SA-13#C151831DIODES · SMA(DO-214AC) | DIODES | SMA(DO-214AC) | 5,000 | ₹37.08 · 5,000 in stock | View |
 | SBR1U150SA-13#C151618DIODES · SMA | DIODES | SMA | On request | ₹50.91 · 0 in stock | View |
