DIODESDatasheet (PDF)

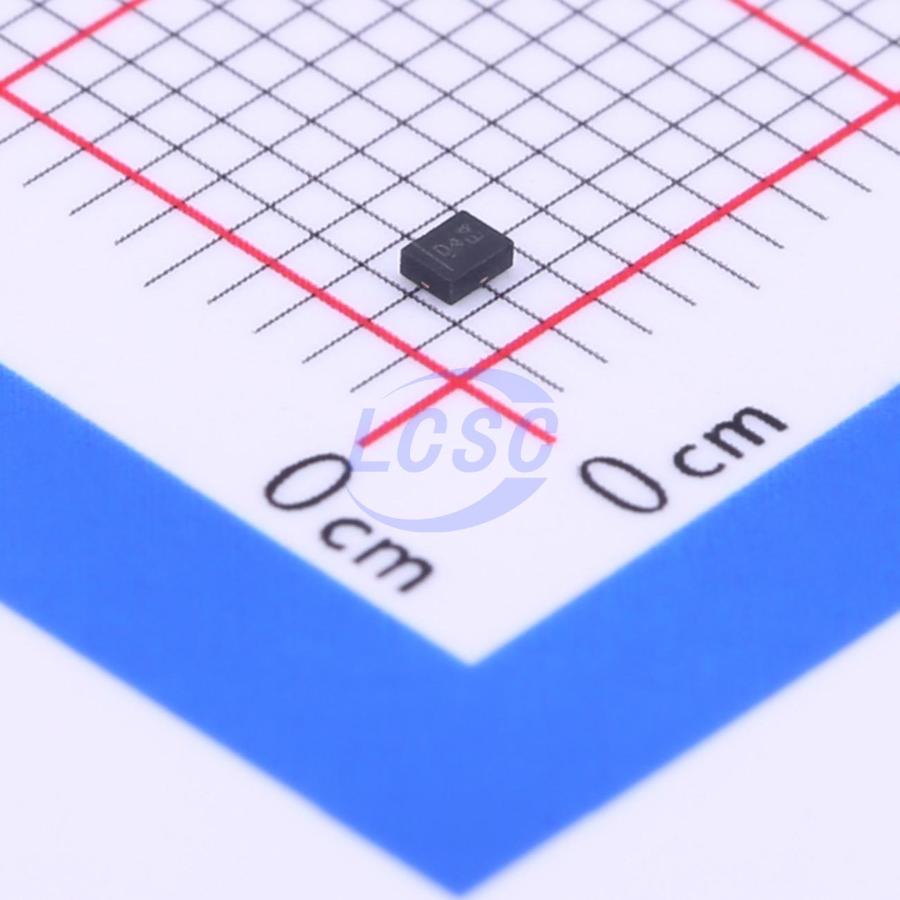

SBR1U40LP-7
1 Independent 40V 460mV@1A 1A DFN-3(1.1x1.4) Single Diodes RoHS
DFN-3(1.1x1.4)ROHS3 CompliantActive
1.0A SBR SUPER BARRIER RECTIFIER
- Manufacturer
- DIODES
- Manufacturer part #
- SBR1U40LP-7
- Store part #
- C397964
- Package / case
- DFN-3(1.1x1.4)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,950 in stock
#C397964
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.90 | ₹99.00 |
| 100+ | ₹7.92 | ₹792.00 |
| 300+ | ₹6.93 | ₹2,079.00 |
| 3,000+ | ₹6.19 | ₹18,570.00 |
| 6,000+ | ₹5.60 | ₹33,600.00 |
| 9,000+ | ₹5.31 | ₹47,790.00 |
10 × ₹9.90
₹99.00
excl. GST
₹116.82 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR1U40LP-7
₹99.00 for 10 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Diode Configuration
- 1 Independent
- Voltage - DC Reverse (Vr) (Max)
- 40V
- Voltage - Forward(Vf@If)
- 460mV@1A
- Reverse Leakage Current (Ir)
- 50uA@40V
- Non-Repetitive Peak Forward Surge Current
- 5A
- Current - Rectified
- 1A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
Key features
- Ultra Low Forward Voltage Drop
- Excellent High Temperature Stability
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- 150℃ Operating Junction Temperature
- Lead Free By Design, RoHS Compliant
- Halogen and Antimony Free "Green" Device
