DIODESDatasheet (PDF)

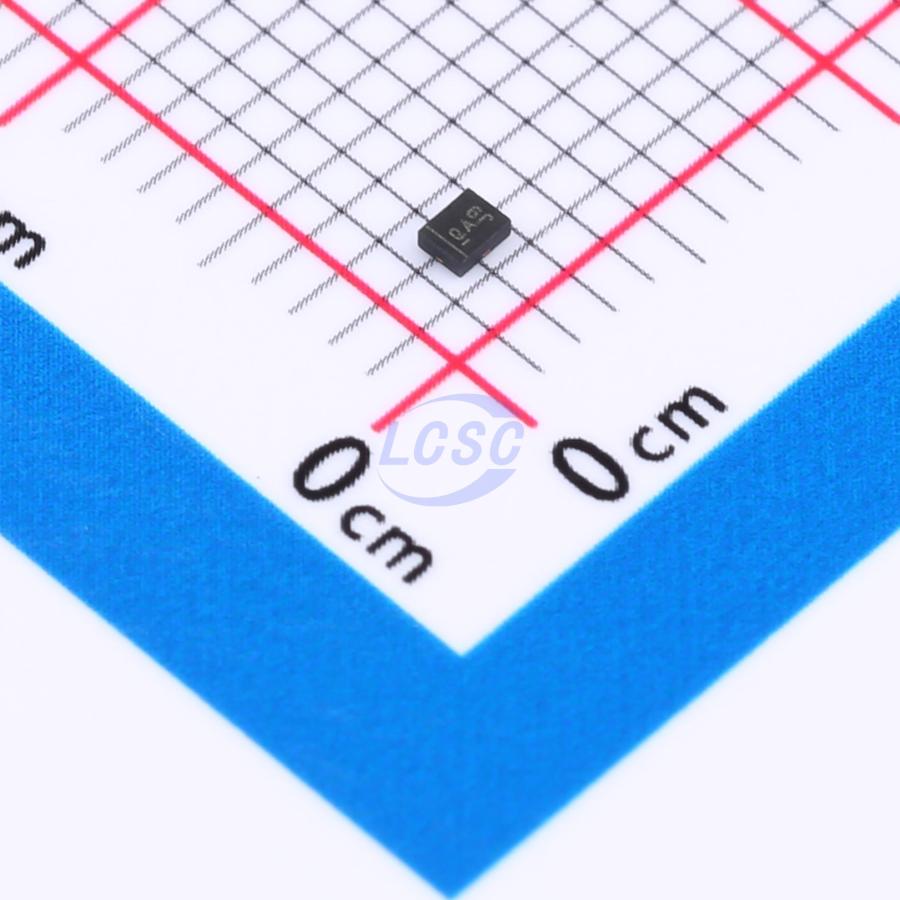

SBR2U100LP-7
1 Independent 100V 850mV@1.5A 1.5A DFN-2(1.1x1.4) Single Diodes RoHS
DFN-2(1.1x1.4)ROHS3 CompliantActive
1.5A SBR Super Barrier Rectifier
- Manufacturer
- DIODES
- Manufacturer part #
- SBR2U100LP-7
- Store part #
- C5336805
- Package / case
- DFN-2(1.1x1.4)
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,580 in stock
#C5336805
Stock & price checked 8 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹39.60 | ₹39.60 |
| 10+ | ₹34.81 | ₹348.10 |
| 30+ | ₹32.93 | ₹987.90 |
| 100+ | ₹30.43 | ₹3,043.00 |
| 500+ | ₹29.19 | ₹14,595.00 |
| 1,000+ | ₹28.55 | ₹28,550.00 |
1 × ₹39.60
₹39.60
excl. GST
₹46.73 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBR2U100LP-7
₹39.60 for 1 + GST
Specifications
- Diode Configuration
- 1 Independent
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 100V
- Voltage - Forward(Vf@If)
- 850mV@1.5A
- Reverse Leakage Current (Ir)
- 50uA
- Non-Repetitive Peak Forward Surge Current
- 18A
- Current - Rectified
- 1.5A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.03 g
Overview
This Super Barrier Rectifier (SBR) diode is designed to meet the stringent requirements of Automotive Applications. It is ideally suited for use as a: Polarity Protection Diode, Recirculating Diode, Switching Diode, Bypass Diodes
Applications
- Polarity Protection Diode
- Recirculating Diode
- Switching Diode
- Bypass Diodes
Key features
- Low Forward Voltage Drop
- Excellent High-Temperature Stability
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- +175℃ Operating Junction Temperature
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
- Qualified to AEC-Q101 Standards for High Reliability
