DIODESDatasheet (PDF)

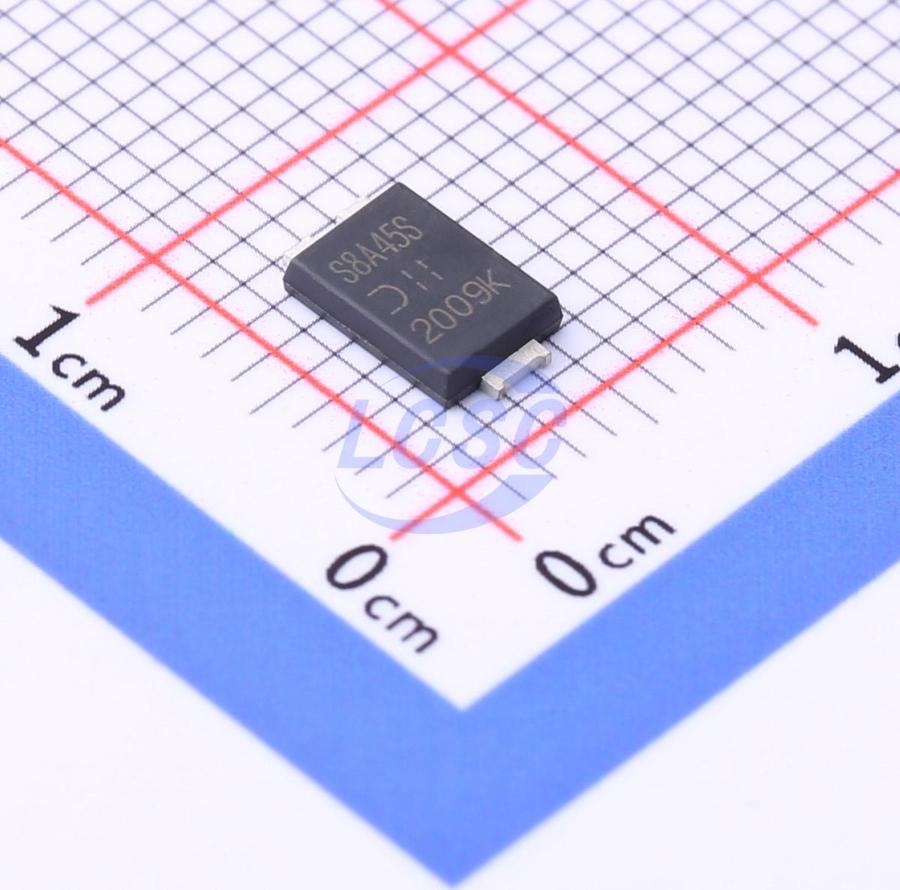

SBR8A45SP5-13
45V Standalone 600mV@8A 8A Power-DI-5-3 Single Diodes RoHS
Power-DI-5-3ROHS3 CompliantActive
Super Barrier Rectifier, PowerDI5
- Manufacturer
- DIODES
- Manufacturer part #
- SBR8A45SP5-13
- Store part #
- C2925735
- Package / case
- Power-DI-5-3
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49 in stock
#C2925735
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹62.80 | ₹62.80 |
| 10+ | ₹61.51 | ₹615.10 |
| 30+ | ₹60.63 | ₹1,818.90 |
| 100+ | ₹59.55 | ₹5,955.00 |
1 × ₹62.80
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR8A45SP5-13
₹62.80 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+150℃
- Voltage - DC Reverse (Vr) (Max)
- 45V
- Diode Configuration
- Standalone
- Voltage - Forward(Vf@If)
- 600mV@8A
- Reverse Leakage Current (Ir)
- 30uA@45V
- Non-Repetitive Peak Forward Surge Current
- 180A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.16 g
Overview
Key features
- Designed for use as bypass diodes in solar panels
- Junction temperature selectively rated up to +200℃ for high thermal reliability
- Employs patented Super Barrier Rectifier (SBR) technology
- Low forward voltage drop
- Excellent high-temperature stability
- Lead-free finish; RoHS compliant
- Halogen- and antimony-free, "Green" device
