DIODESDatasheet (PDF)

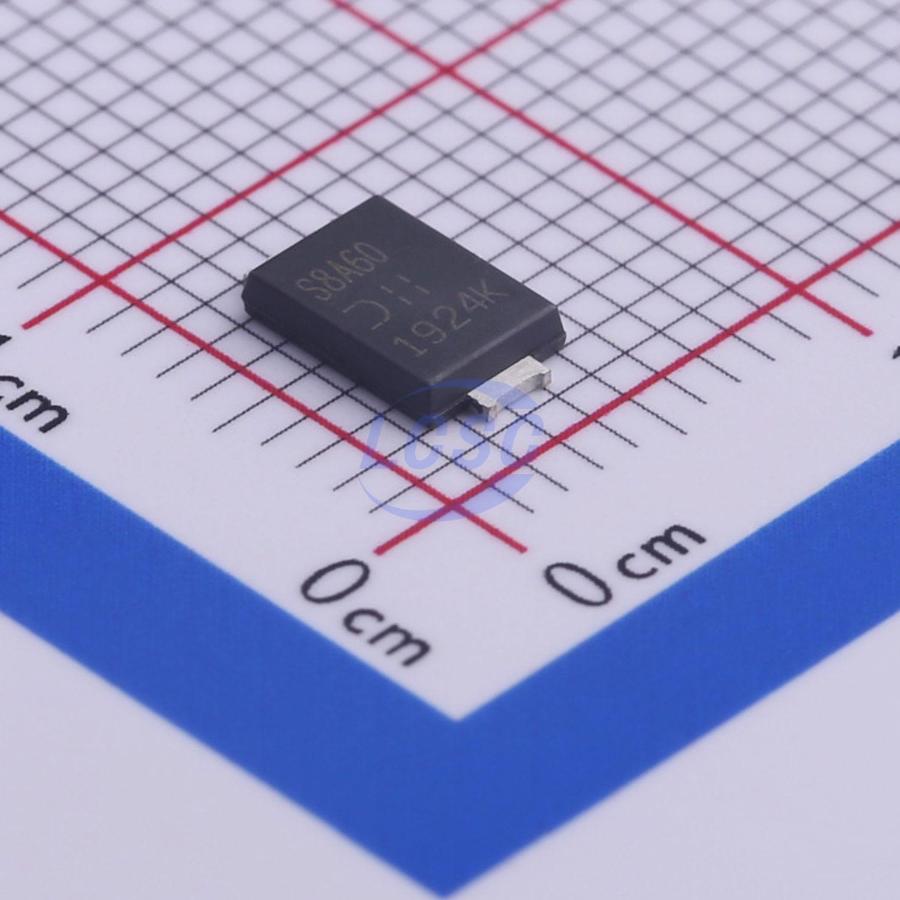

SBR8A60P5-13
60V 1 Independent 550mV@8A 8A PowerDI-5 Single Diodes RoHS
PowerDI-5ROHS3 CompliantActive
8A SBR SUPER BARRIER RECTIFIER POWERDI5
- Manufacturer
- DIODES
- Manufacturer part #
- SBR8A60P5-13
- Store part #
- C444954
- Package / case
- PowerDI-5
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
61 in stock
#C444954
Stock & price checked 10 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹76.30 | ₹76.30 |
| 10+ | ₹63.97 | ₹639.70 |
| 30+ | ₹57.82 | ₹1,734.60 |
| 100+ | ₹51.65 | ₹5,165.00 |
| 500+ | ₹47.83 | ₹23,915.00 |
| 1,000+ | ₹45.91 | ₹45,910.00 |
1 × ₹76.30
₹76.30
excl. GST
₹90.03 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
SBR8A60P5-13
₹76.30 for 1 + GST
Specifications
- Operating Junction Temperature Range
- -65℃~+175℃
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Diode Configuration
- 1 Independent
- Voltage - Forward(Vf@If)
- 550mV@8A
- Reverse Leakage Current (Ir)
- 92uA@60V
- Non-Repetitive Peak Forward Surge Current
- 160A
- Current - Rectified
- 8A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.139 g
Overview
The SBR8A60P5 uses patented SBR technology offering low VF, excellent high-temperature stability and soft switching characteristics for reduced EMI. Packaged in the compact patented PowerDI-5 package, this product also offers excellent thermal efficiency and high surge current handling capability.
Applications
- DC-DC Converters
- DC-AC Inverters
- AC-DC Power Supplies
Key features
- Low Forward Voltage Drop
- Excellent High Temperature Stability
- Patented Interlocking Clip Design for High Surge Current Capacity
- Patented Super Barrier Rectifier Technology
- Soft, Fast Switching Capability
- +175℃ Operating Junction Temperature
- Lead-Free Finish; RoHS Compliant
- Halogen and Antimony Free. “Green” Device
