DIODESDatasheet (PDF)

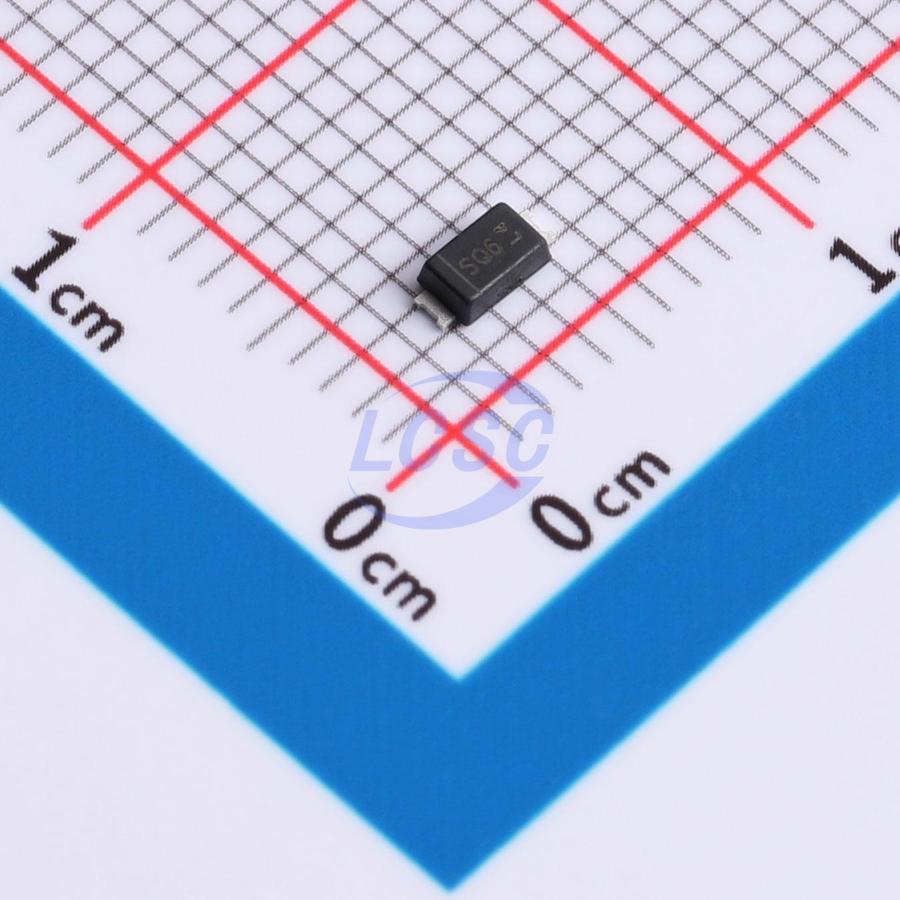

SBRFP2M60P1Q-7
15ns 60V 520mV@2A 2A PowerDI123 Single Diodes RoHS
PowerDI123ROHS3 CompliantActive
- Manufacturer
- DIODES
- Manufacturer part #
- SBRFP2M60P1Q-7
- Store part #
- C19950461
- Package / case
- PowerDI123
- Category
- Single Diodes
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
37 in stock
#C19950461
Stock & price checked 9 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹74.59 | ₹74.59 |
| 10+ | ₹73.52 | ₹735.20 |
| 30+ | ₹72.87 | ₹2,186.10 |
| 100+ | ₹72.22 | ₹7,222.00 |
1 × ₹74.59
₹74.59
excl. GST
₹88.02 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SBRFP2M60P1Q-7
₹74.59 for 1 + GST
Specifications
- Reverse Recovery Time (trr)
- 15ns
- Voltage - DC Reverse (Vr) (Max)
- 60V
- Operating Junction Temperature Range
- -55℃~+175℃
- Voltage - Forward(Vf@If)
- 520mV@2A
- Reverse Leakage Current (Ir)
- 1.5uA@60V
- Current - Rectified
- 2A
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.1 g
Overview
This super barrier rectifier (SBRQ) diode is ideal for applications requiring ultra-low blocking mode. This helps reduce operating temperature and improve system reliability. It comes in a compact, thermally efficient PowerDI123 package.
Applications
- Polarity protection diode
- DC/DC converter
- AC/DC adapter
- Flyback diode
- Freewheeling diode
Key features
- Ultra-low forward voltage drop (VF) for improved efficiency and cooler operation
- Patented Super Barrier Rectifier SBRF technology
- Excellent avalanche capability (see Maximum Ratings)
- Superior reverse leakage (IR) stability at elevated temperatures, improving reliability against thermal runaway failures during high-temperature operation
- Package height less than 1.1mm for low-profile applications
- Lead-free surface finish, RoHS compliant
- Halogen- and antimony-free "Green" device
- SBRFP2M60P1Q for automotive applications requiring specific change control, AEC-Q101 qualified, PPAP capable, manufactured in IATF 16949 certified facilities
